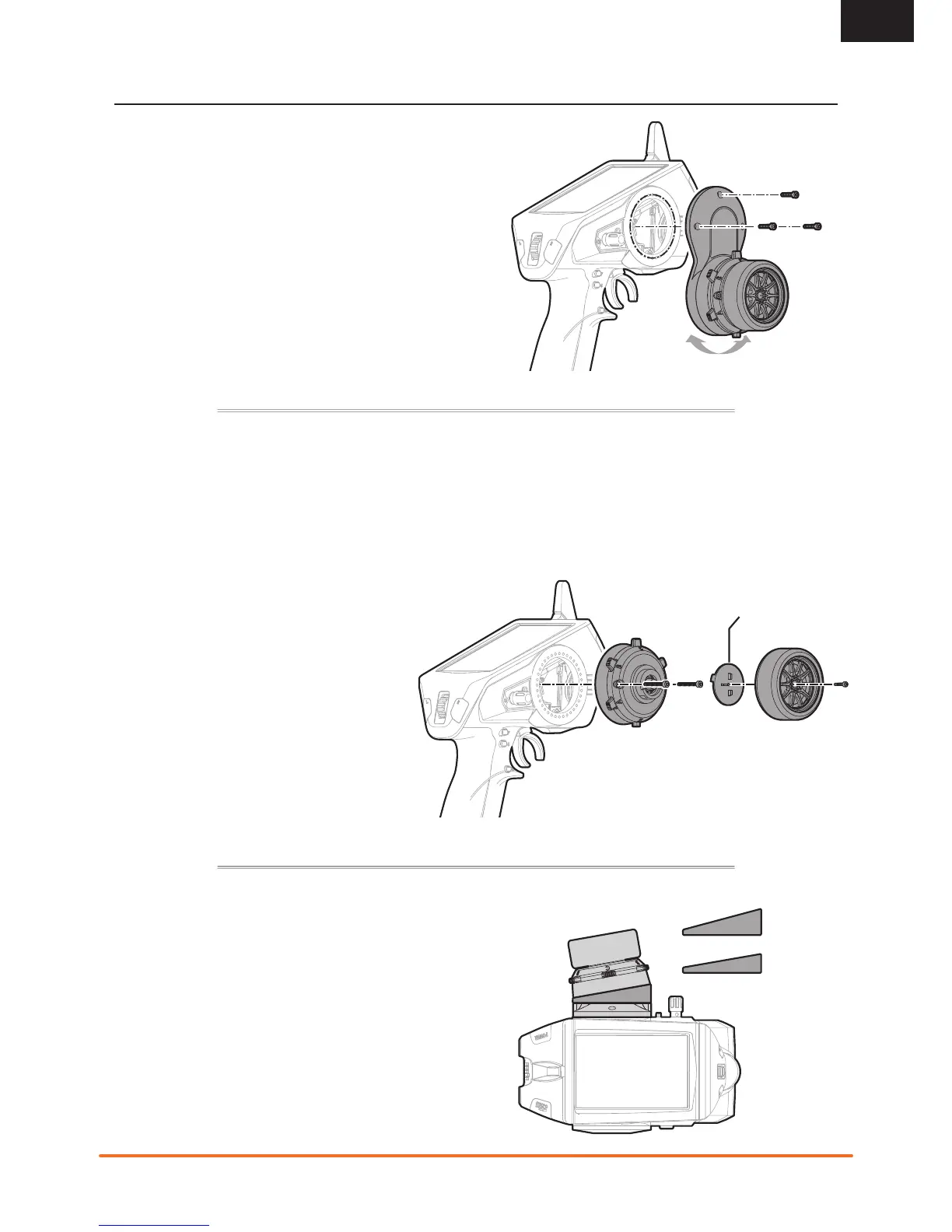

PHYSICAL TRANSMITTER ADJUSTMENTS
• Turn off the DX5R
• Using a 2mm hex wrench, remove 3 screws.
• Rotate the drop down to the desired angle.
• Align with the screw holes and re-install the 3 screws
being careful not to pinch any wires.
• Using a 2mm hex wrench, remove the 3 screws from the
drop down and remove the drop down from the transmitter.
Carefully disconnect the 2 wiring harness from inside the
transmitter.
• Using a 1.5mm hex wrench, remove the steering
wheel.
• Using a 2mm hex wrench, remove 2 screws from
the steering mechanism. Remove the steering
mechanism from the drop down being careful to
pull the wiring harness through the opening.
• Keep the drop down in a safe place for future
use.
• Connect the 2 wiring harnesses to the board
inside the DX5R. Note that one connector has 6
pins and the other has 7.
• Re-install the steering mechanism directly onto
the transmitter using the 2 screws.
• Re-install the steering wheel.
• Refer to the Dropdown steering wheel options section
above for directions on removing and installing the steering
mechanism.
• The wedge goes between the steering mechanism and
the drop down (or transmitter if the drop down is not being
used) and can be rotated to almost any angle.
ROTATE:
DROPDOWN STEERING WHEEL OPTIONS
The DX5R comes with the dropdown wheel installed. The drop-
down can be rotated for a perfect feel or removed for a standard
wheel layout. All the parts necessary to convert to the standard
wheel are included.
STANDARD WHEEL CONVERSION:
STEERING WHEEL WEDGES (NOT INCLUDED)
Wiring not shown
CAM
15º
10º
To Next Page
