41SPEKTRUM NX8 • TRANSMITTER INSTRUCTION MANUAL
EN

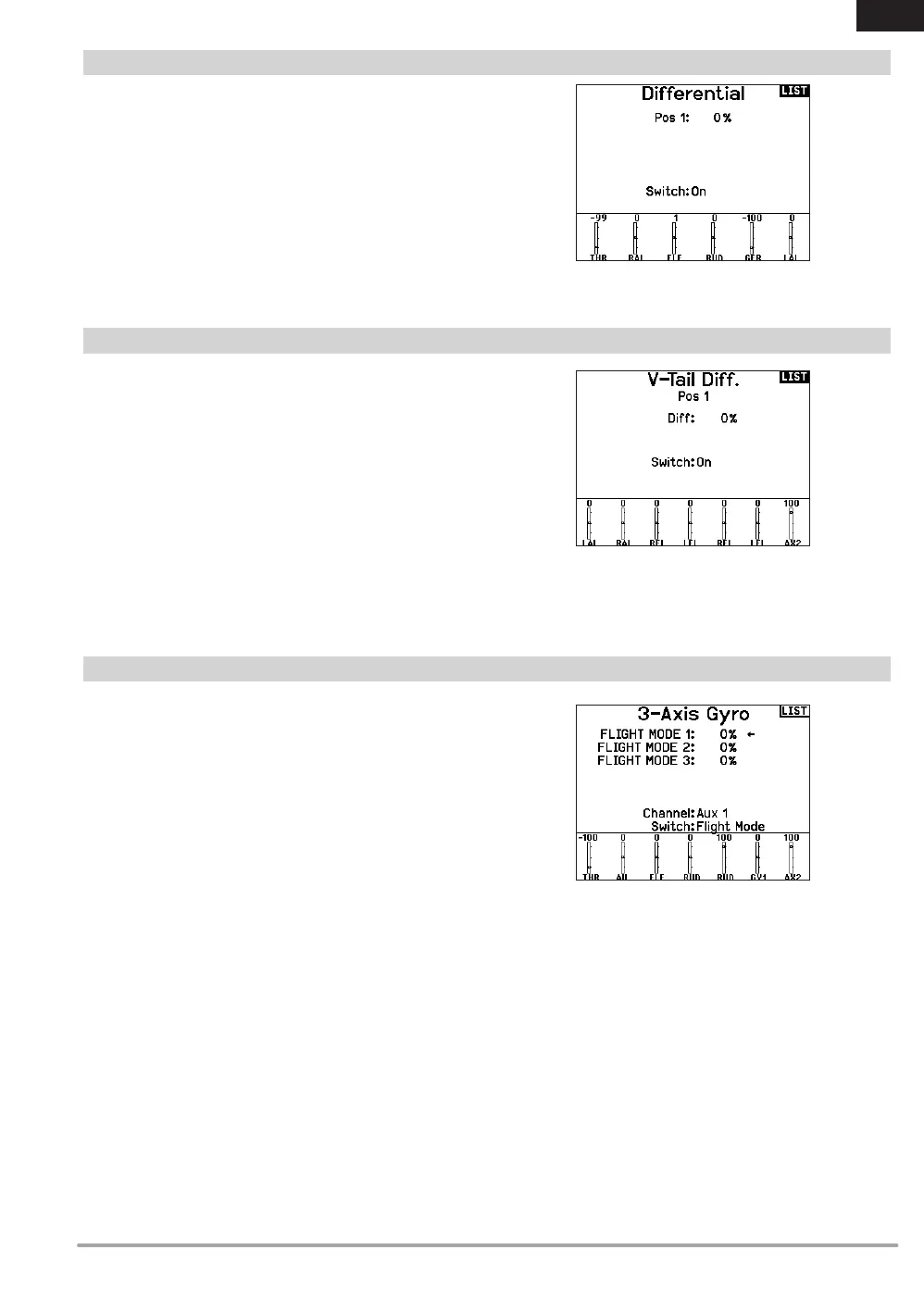

If you enable a wing type with two aileron servos, the function
menu will have a Differential menu added. This feature is intended
for you to be able to set the ailerons for equal travel, or to be able
to set them for more up travel than down travel, depending on your
aircraft and intentions.
To use the Differential System:
1. Select the switch you want to use. If you want to use one
setting full-time, set the Switch to ON.
2. Set your values to achieve your desired results. Positive and
negative values will have an opposite effect.
If you enable a V-Tail tail type, the function menu will have a
V-Tail Differential menu added. This feature is intended for you
to be able to set the control surfaces for equal travel, or to be able
to set them for more up travel than down travel, depending on your
aircraft and intentions.
To use the V-Tail Differential System:
1. Select the switch you want to use. If you want to use one
setting full-time, set the Switch to ON.
2. Set your values to achieve your desired results. Positive and
negative values will have an opposite effect.
Gyro menus can be used to control a gain value. Enable the
menu you wish to use in the Aircraft Type -> Aircraft Options
selection in the System Menu.
3-Axis Gyro
Select the Channel and switch you want to use and ll in your gain
values in the switch positions.
Gyro (1,2,3)
This menu selection can give you more nite control over gain
values along specic points of input. Select your input channel
and your gain channel, and ll in the values you want to use. move
the input channel and press Ad Pt. to add a point along the curve.
select a different Curve (page) to store multiple sets of values for
testing.
Differential
V-Tail Differential
Gyro Menus
