6 SPEKTRUM NX8 • TRANSMITTER INSTRUCTION MANUAL
EN

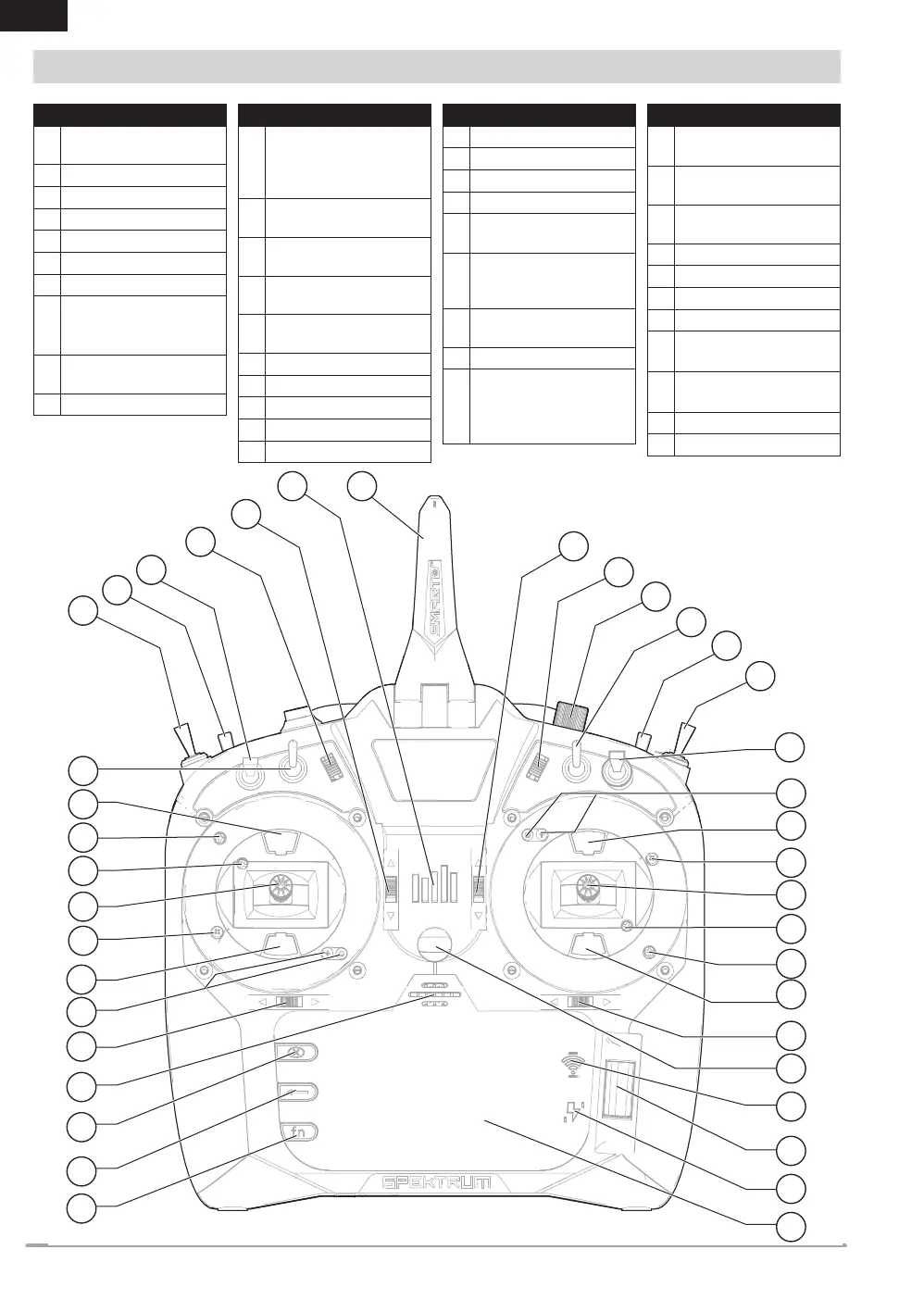

TRANSMITTER FUNCTIONS
Function
1
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
2 R Trimmer
3 R Knob
4 Switch E
5 Switch H
6 Switch G
7 Switch F
8
Throttle Tension Adjustment
Throttle Ratchet Adjustment
(Mode 1, 3)
9
Gimbal Travel Limiter Access
Panel
10 Mode Change Screw
Function
11
Throttle/Aileron Stick (Mode 1)
Elevator/Aileron Stick (Mode 2)
Throttle/Rudder Stick (Mode 3)
Elevator/Rudder Stick (Mode 4)
12
Left/Right Gimbal Stick
Tension Adjustment
13
Up/Down Gimbal Stick
Tension Adjustment
14
Gimbal Travel Limiter Access
Panel
15
Aileron Trim (Mode 1, 2)
Rudder Trim (Mode 3, 4)
16 Neck Strap Mount
17 WiFi Indicator
18 Scroll wheel
19 Charge Indicator
20 LCD
Function
21 Function Button
22 Back Button
23 Clear Button
24 Speaker
25
Rudder Trim (Mode 1, 2)
Aileron Trim (Mode 3, 4)
26
Throttle Tension Adjustment
Throttle Ratchet Adjustment
(Mode 2, 4)
27
Gimbal Travel Limiter Access
Panel
28 Mode Change Screw
29
Elevator/Rudder Stick (Mode 1)
Throttle/Rudder Stick (Mode 2)
Elevator/Aileron Stick (Mode 3)
Throttle/Aileron Stick (Mode 4)
Function
30
Left/Right Gimbal Stick
Tension Adjustment
31
Up/Down Gimbal Stick
Tension Adjustment
32
Gimbal Travel Limiter Access
Panel
33 Switch D
34 Switch B
35 Switch A
36 Switch C
37 L Trimmer
38
Elevator Trim (Mode 1, 3)
Throttle Trim (Mode 2, 4)
39 On/Off Switch
40 Antenna
The transmitter comes with a thin, clear plastic lm applied to some
front panels for protection during shipping. Humidity and use may
cause this lm to come off. Carefully remove this lm as desired.
6
8
7
2
3
1
4
5
10
9
11
12
13
14
16
15
17
19
18
20
21
22
23
24
25
26
27
28
30
29
31
34
32
33
36
37
38
39 40
35
