SPHINX Project Eight Service Manual
16

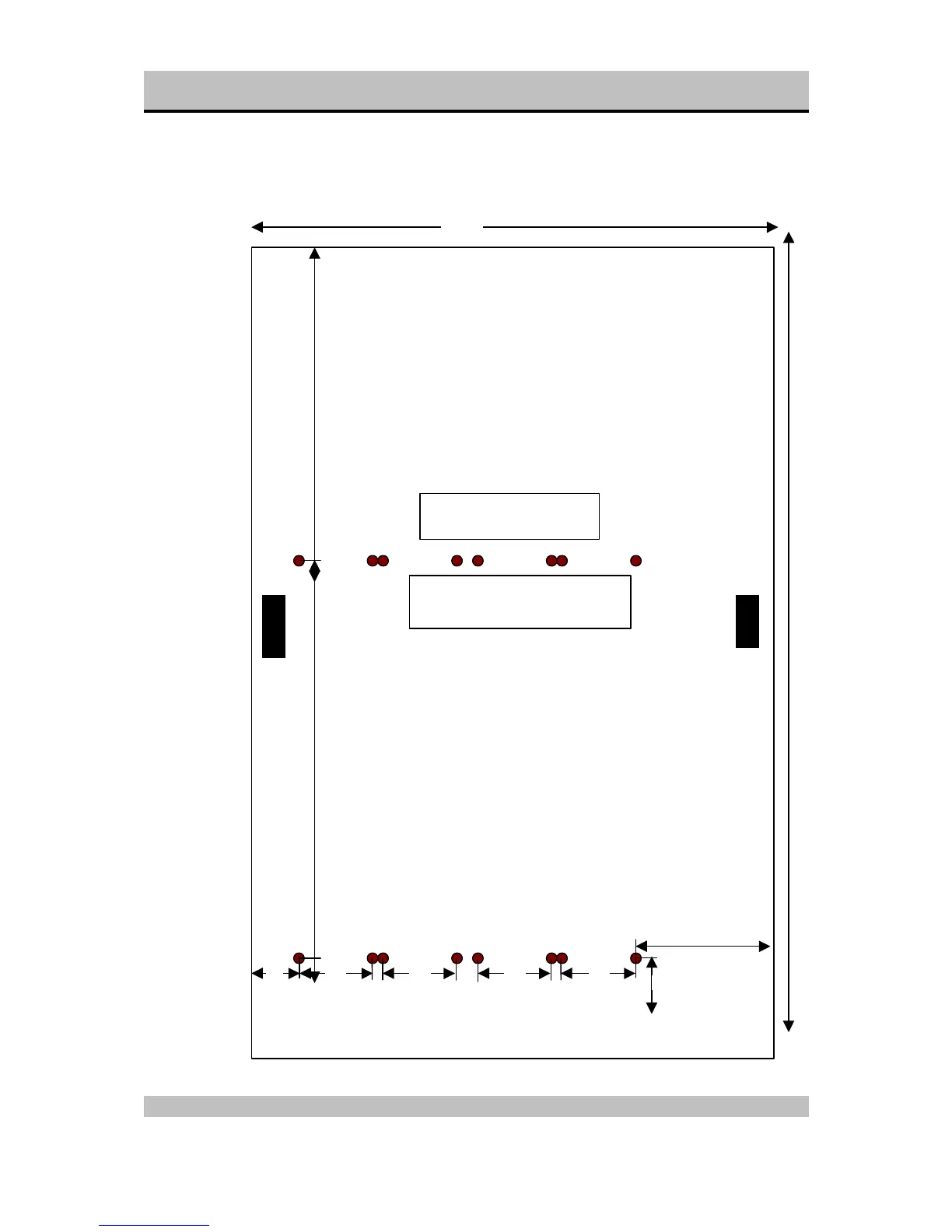

Figure 5: Construction Drawing for top cover plate
All sizes in millimeters
480
315
34
33
66
48 4848 48
12
216 230
Top View
Front
Back
For holes use drill size of
approx. Ø 6 mm
6 6
Holes use same spacing as the
ones shown below
