5- Calibration Kit Dongle
6- Calibration Installation CD
Calibration Setup
Connect the open ended tube of the Calibration Pneumatic Kit to a calibrated manometer (electronic or
Sphygmomanometer mercury column or anaerobic Sphygmomanometer, with reading in mmHg, and
resolution of 1mmHg) using one of the adaptors provided. Connect the other tube of the Calibration

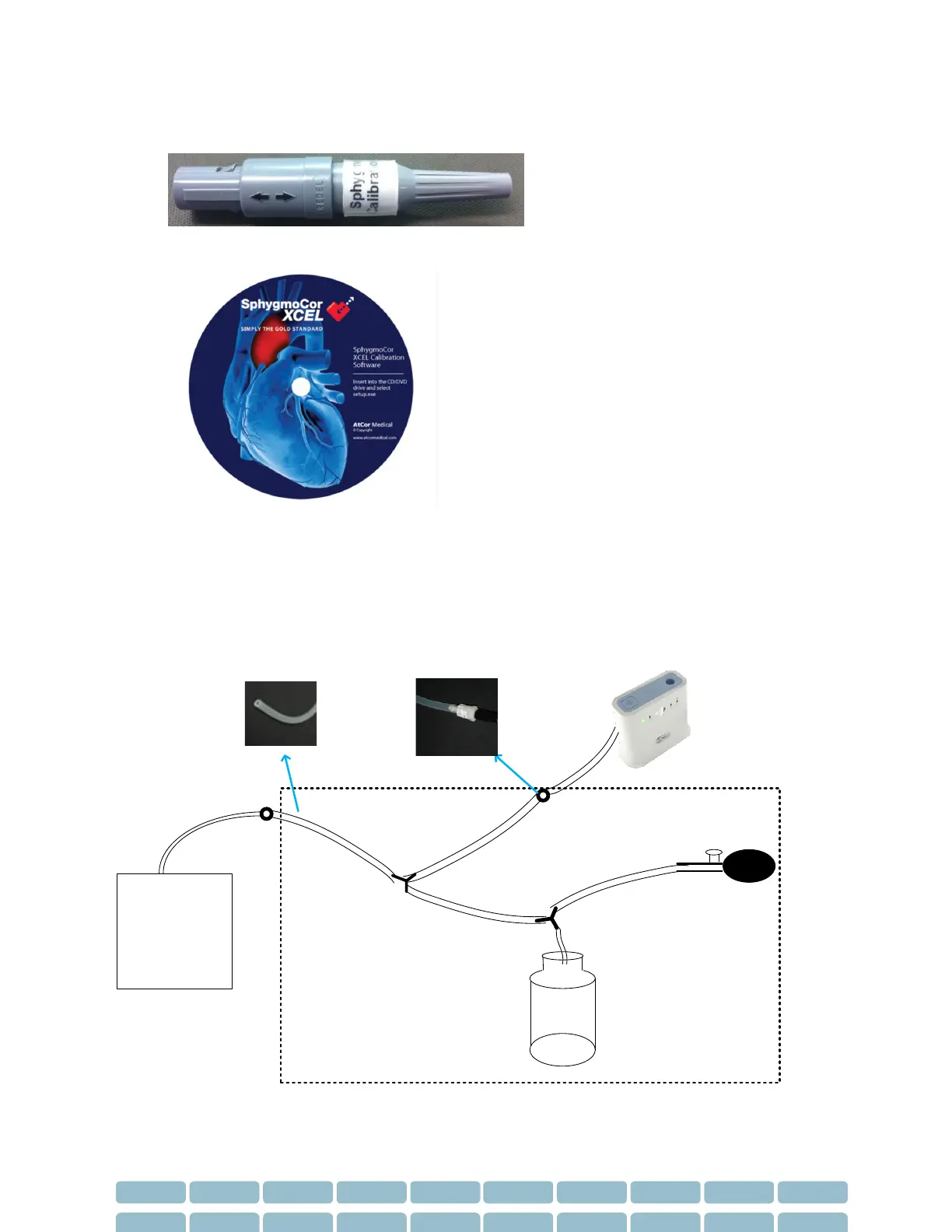

Pneumatic Kit to the cuff hose of SphygmoCor XCEL using the lockable connection as illustrated in the
following figure
Manometer
or Mercury/ Aneroid
Sphygmomanometer
Calibration Pneumatic
Kit
XCEL
Adapter
Cuff Hose
Lock Connection
