12/01/2016 Vers. 1.0 53

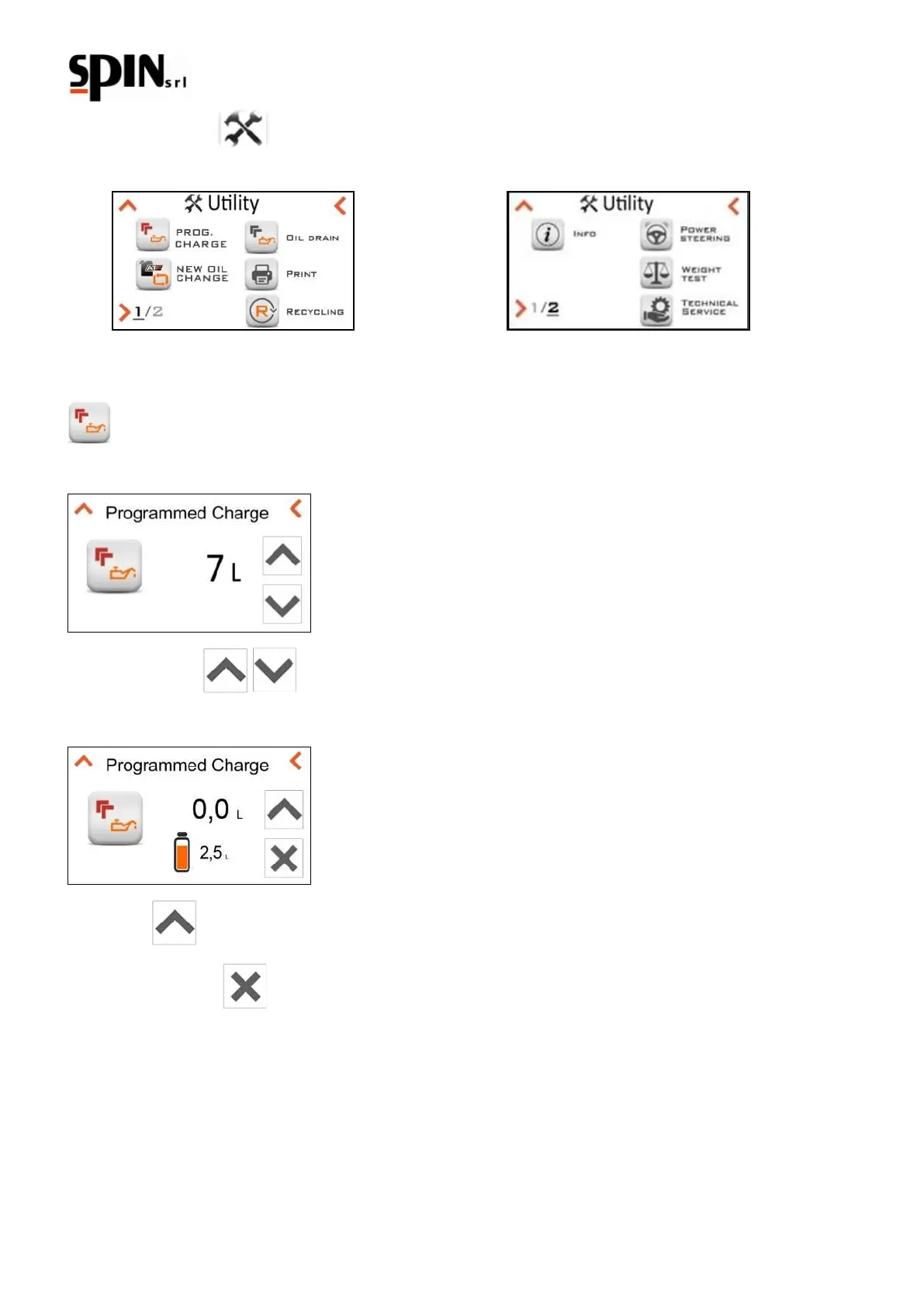

14 Utilities
In the Utilities menu you have the following options:
14.1 Programmed charge
From this screen you can set a given quantity of oil to be charged into the gearbox.
Use the arrow keys to set the wanted quantity;
Click on the icon to go the following page
Click on the icon to start the pump. The station will stop when it will have reached the set quantity.
If needed, use the key to stop the procedure.
