6.3 Commissioning - Full
6.3.1 Main structure

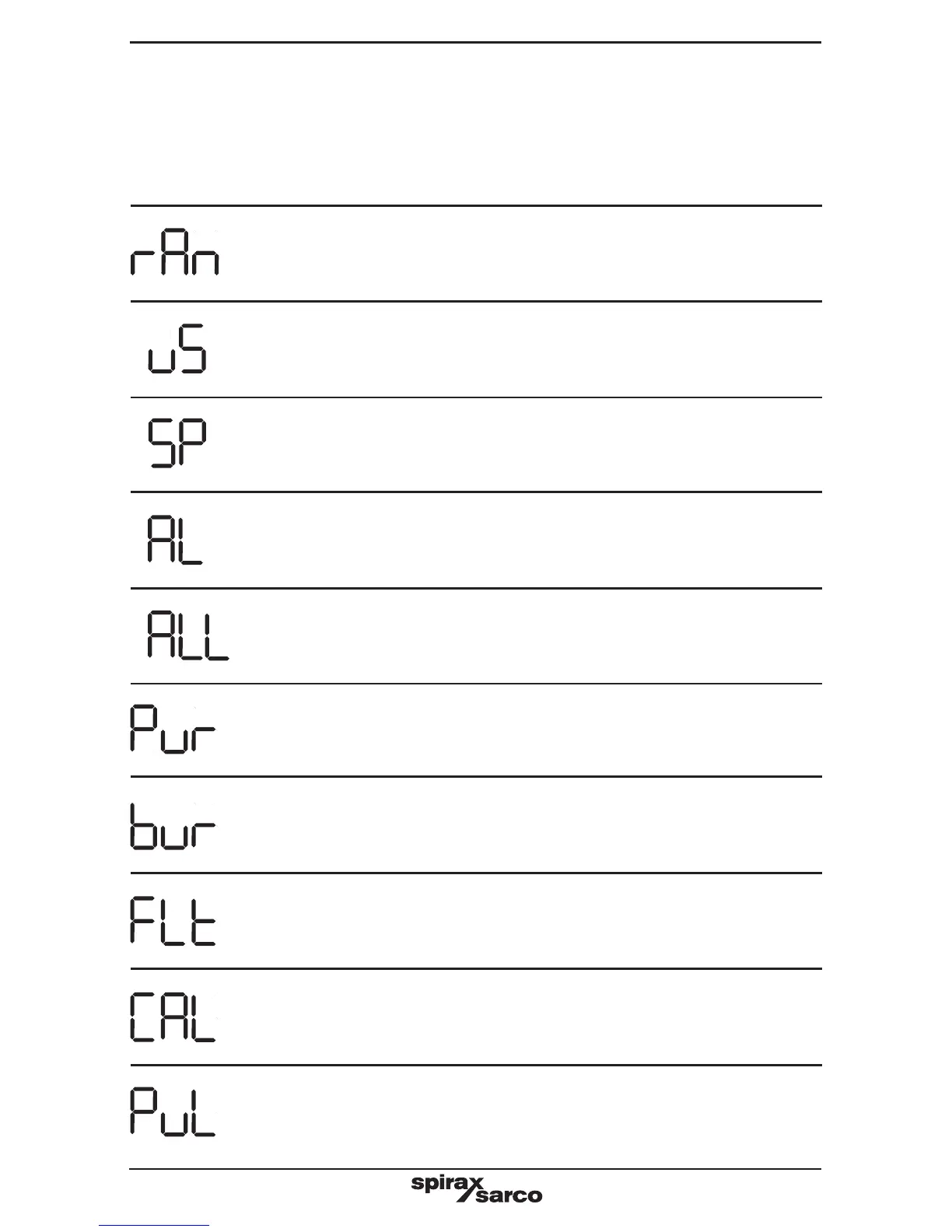

On entering the correct pass code, the display will show the following menu structure:-
rAnge multiplier setting (x10, x100, x1000). Blank = x1.
Selects conductivity units:
ON = μS/cm (default)
OFF = ppm
Set Point.
TDS level at which the valve will open.
Alarm relay released at this TDS level.
CAlibration.
Set to the actual TDS or conductivity value of the water.
Pulsed output – on or off.
Burner input - Only visible if the purge time >0.
ON = Purge occurs every half hour of boiler firing.
OFF = Purge occurs every half-hour.
Purge time - seconds.
Sets duration of purge (probe in blowdown line installations).
FiLTer - Increases the damping effect on the probe output. Visible only
when purge time = 0.
Alarm Latch - Display the state of the alarm lockout. ON or OFF.
To Next Page
