Spirax Sarco LC1350 User Manual

IM-P402-129 EMM Issue 7
16

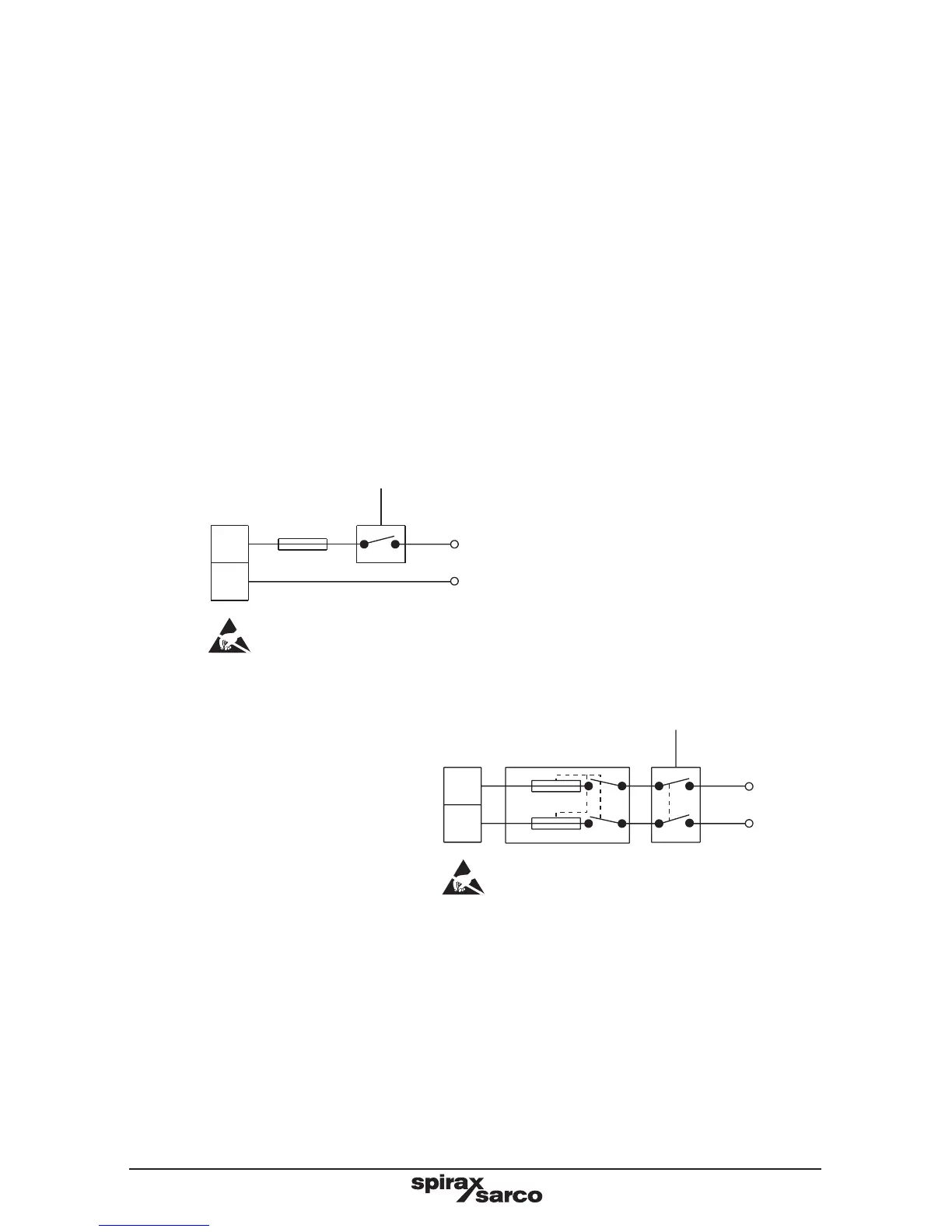

5.2 Mains wiring notes:
1. Read Section 5.1 before attempting to wire the supply to the product.
2. The wiring connections are identified on the terminal plugs.
3. Fuses should be fitted in all live conductors (see Figures 4 and 5).
4. Double or reinforced insulation must be maintained between:
-
Hazardous live conductors (mains and relays circuits) and
-
Safety extra low voltages (All other components/ connectors/ conductors).
5. The wiring diagrams show relays and switches in the Power Off position.
Disconnect device conforming to
IEC 60947-1 and IEC 60947-3
Disconnect device conforming to
IEC 60947-1 and IEC 60947-3
1
2
1
2
L
N
L1
L2
3 A fuse
Product
Product
3 A fuses
Fig. 4
Fig. 5
