System Overview
Deployment
14 | Spirent Landslide Test System Installation Guide
Deployment
Landslide C100 Test System
The Landslide C100 Test System is deployed on Spirent Landslide C100 rack-mounted
server platforms. A typical lab deployment configuration is shown in Figure 1-1. The
Landslide Manager hosts the Test Administration Server (TAS) software, which serves the
user interface through the LAN, acts as the data repository, and controls overall system
operations. The Landslide Test Server hosts the Test Server software, which performs the
test operations. The Landslides communicate with the Systems Under Test (SUTs) via an
Ethernet LAN or a direct Ethernet connection.
A single Landslide system supports from one (1) to thirty-two (32) Test Servers. Users
connect to the Landslide test system and access the TAS from a Java Web Client.

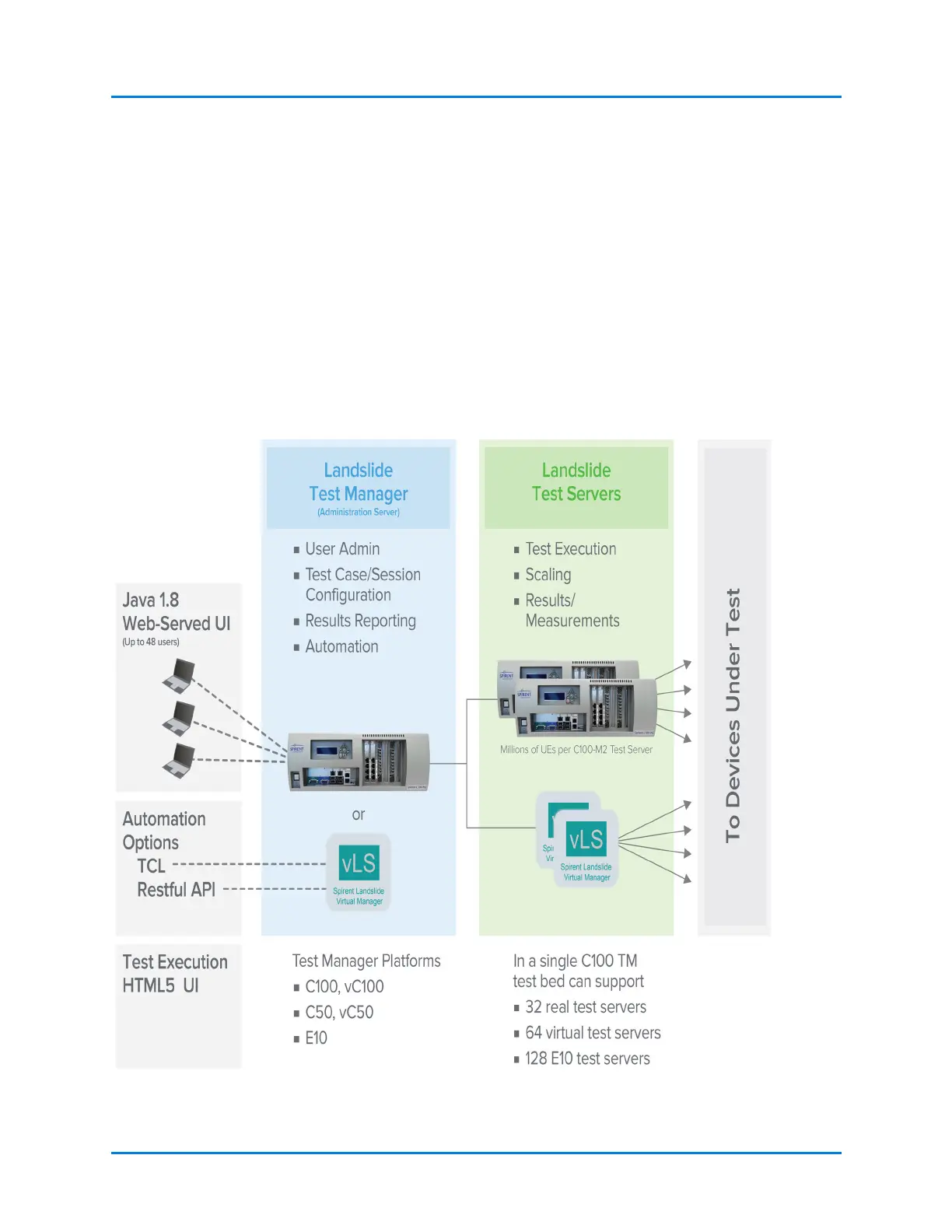

Figure 1-1. Typical Lab Deployment
