Getting Started
Procedure 5: Perform Cable Connections
Getting Started with Spirent TestCenter | 29

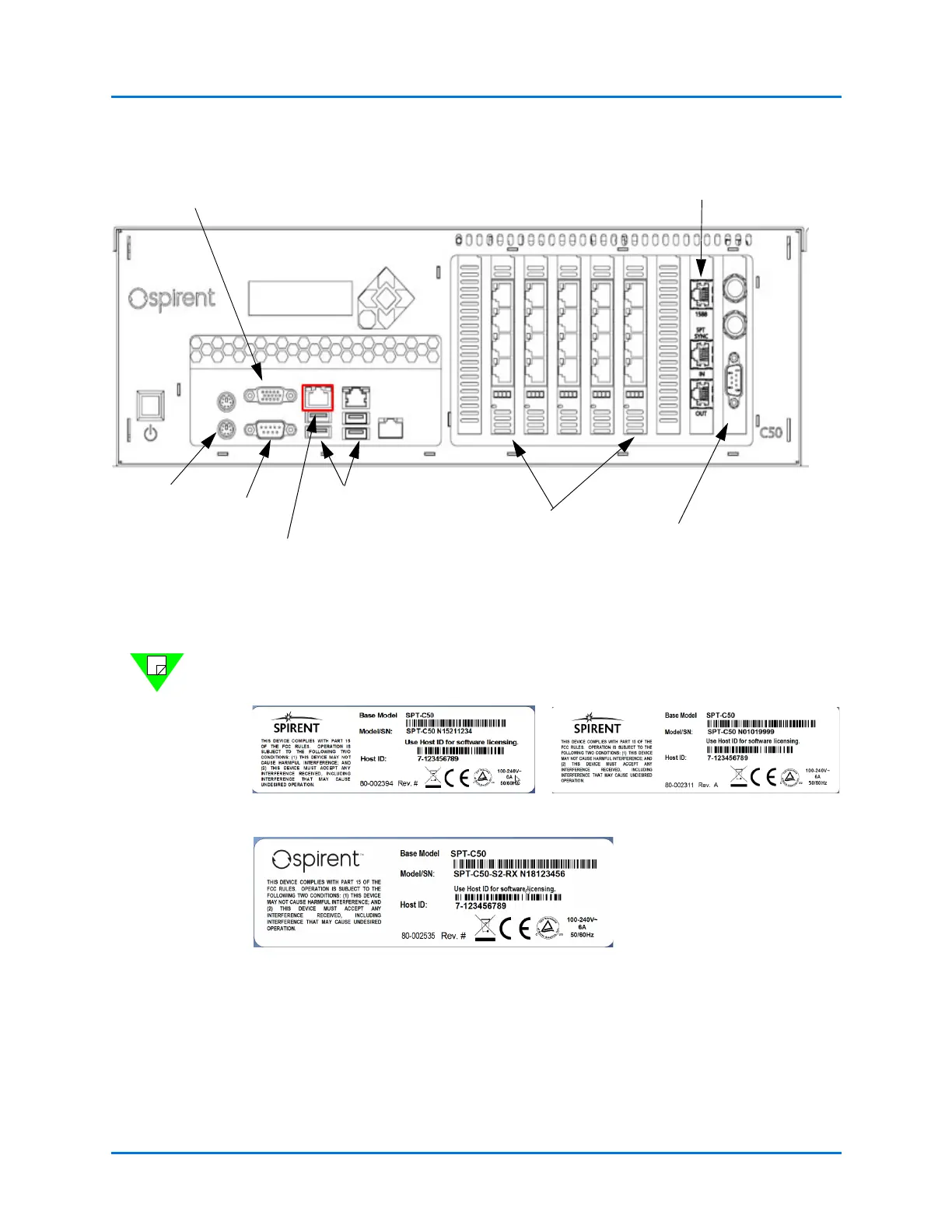

Figure 1-6. SPT-C50-S2-RX Front Panel Connectors for Hardware Rev 80-002535
Note: The hardware “Rev” number for your SPT-C50 model is on the label on the bottom
of the appliance. See Figure 1-7.
Figure 1-7. SPT-C50 Model Labels
Serial Console Port
Multiple Chassis Connection Ports
External Time Reference Connectors
Tes t P or t s
USB Ports
Ethernet Admin Port
Legacy PS2 Ports
VGA Port
SPT-C50 Label for Hardware Rev 80-002394
SPT-C50 Label for Hardware Rev 80-002311
SPT-C50-S2-RX Label for Hardware Rev 80-002535
