Connect the communication line carefully.
Use 6 Screw M8*20, 6 washers to fasten meter support. (Don’t tighten screws at
first)
Step 2: Install meter support
Screw M8*20
Whasher
Screw M8*60
Nut
7. INSTALLATION
1. Let the communication line pass through the right meter pillar.

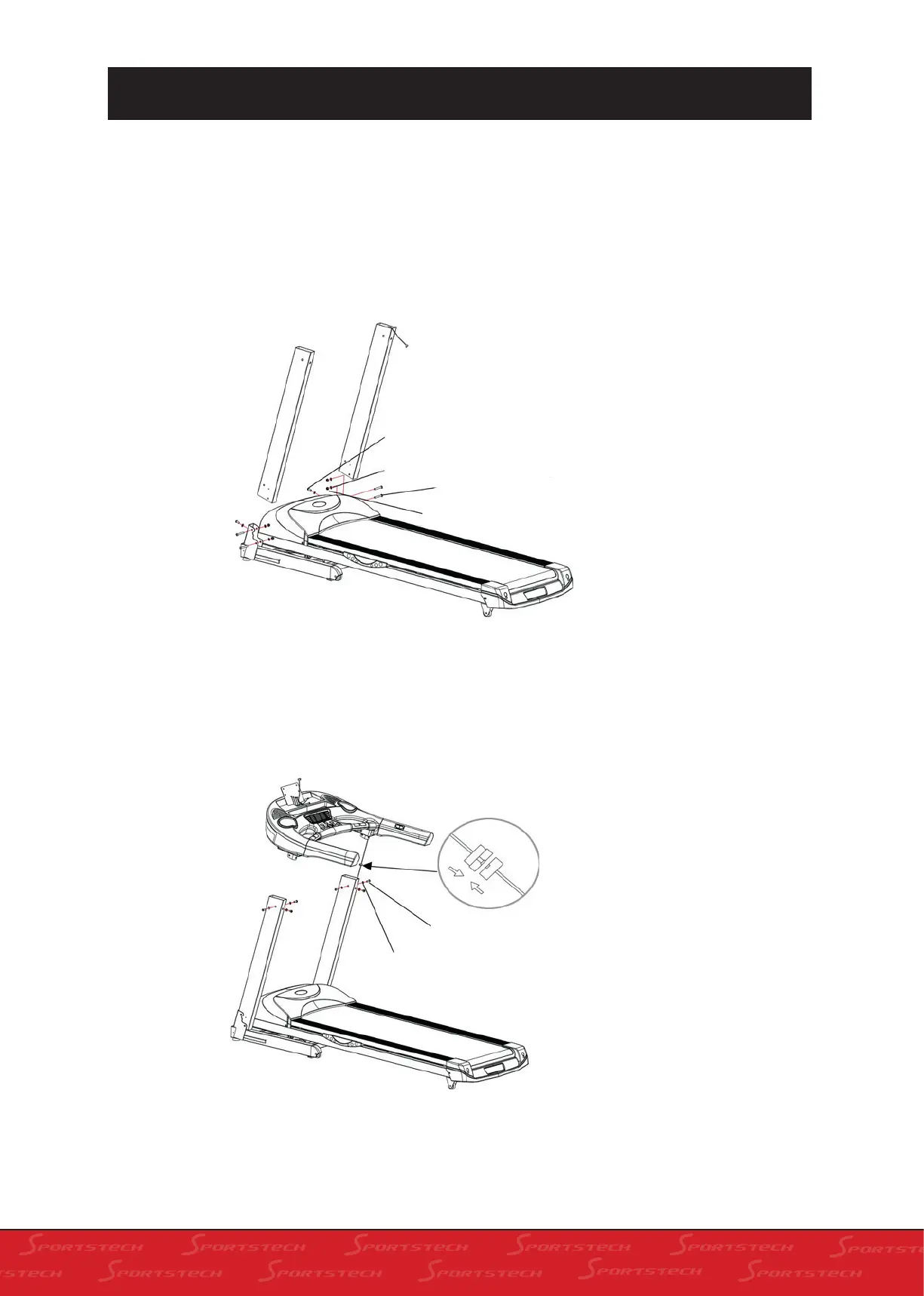

Step 1: Install meter pillars
2. Put meter pillars on the base frame. First, use 2 Screw M8*20 and 2 washers;
second, use 4 Screw M8*60, 4 washers and 4 nuts to fasten meter pillars. (Don’t
tighten screws at first)
Screw M8*20
Whasher
To Next Page
