MANDATORY!
In order to obtain a 4÷20 mA + Hart® output a minimum load of 250 Ohm is
required.
TAG
-
1
2
3
4
Vdc
12.5
17.4
24
25.2
30
Ohm
23
250
558
615
837

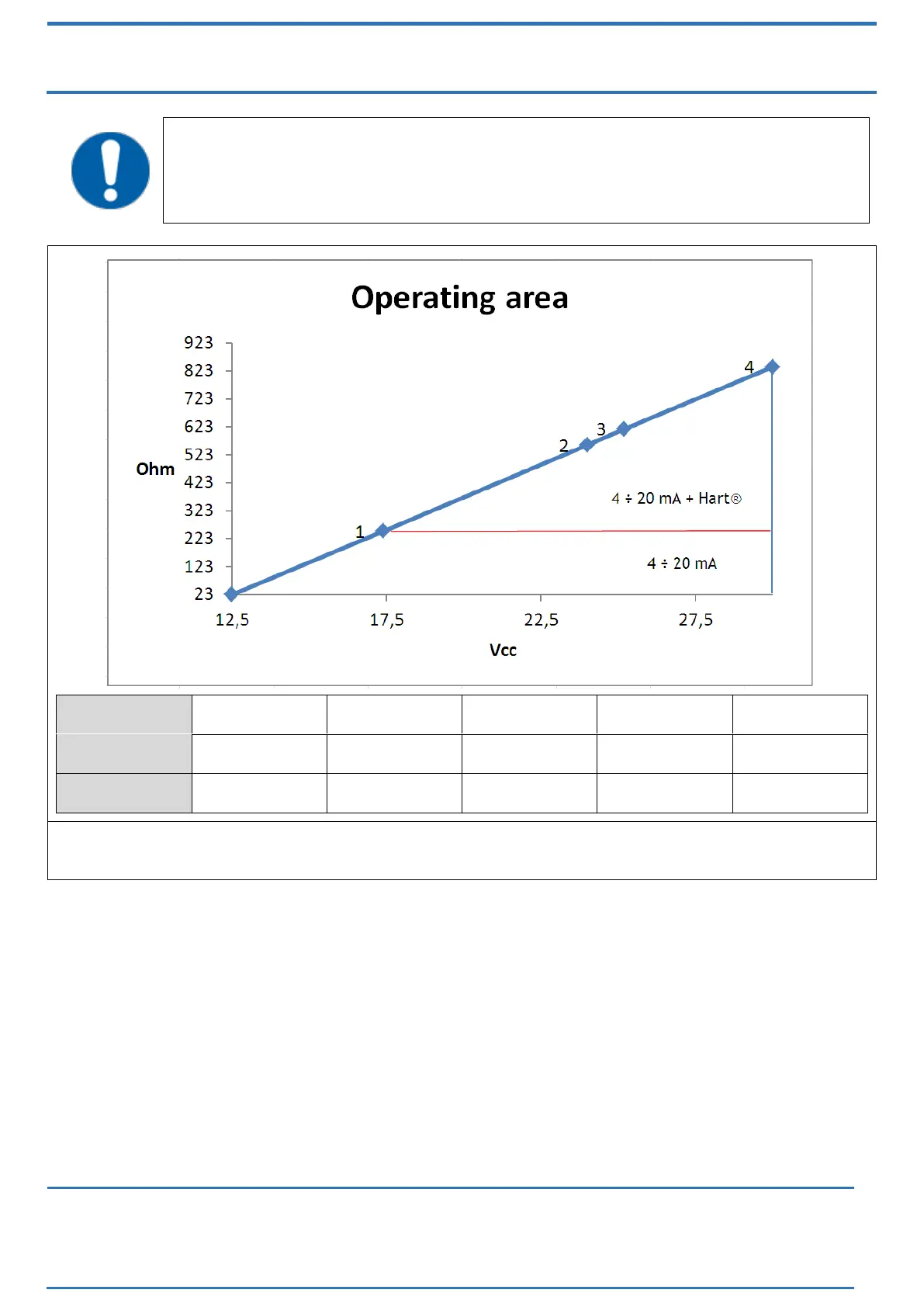

Figure 9: operating area for Ex ia protection
The electronic transmitters totally comply with the HART® protocol specification Revision 6.0,
so they include remote process variable interrogation, parameter setting and diagnostics.
The device is a 4÷20mA 2-wire transmitter, with FSK communication.
It is possible to read via HART® the following variables:
 PV: transmitter main measure;
 SV: % of the span;
 TV: analog output.
 QV: instrument temperature.
Please refer to Figure 10 for the 4÷20 mA + Hart® modem connection.
In Figure 11 the multidrop Hart® connection type is shown.
It is possible to purchase the Hart Server as an additional product; this is a software including all
the interrogation, configuration and diagnostics functions required by the Hart® 6.0
specifications.
