INFORMATION!
Ref. to Figure 10: only one transmitter could be connected to each barrier.
Ref. to Figure 11: up to three transmitters can be connected to each barrier with
a maximum of five Ex ia barriers.

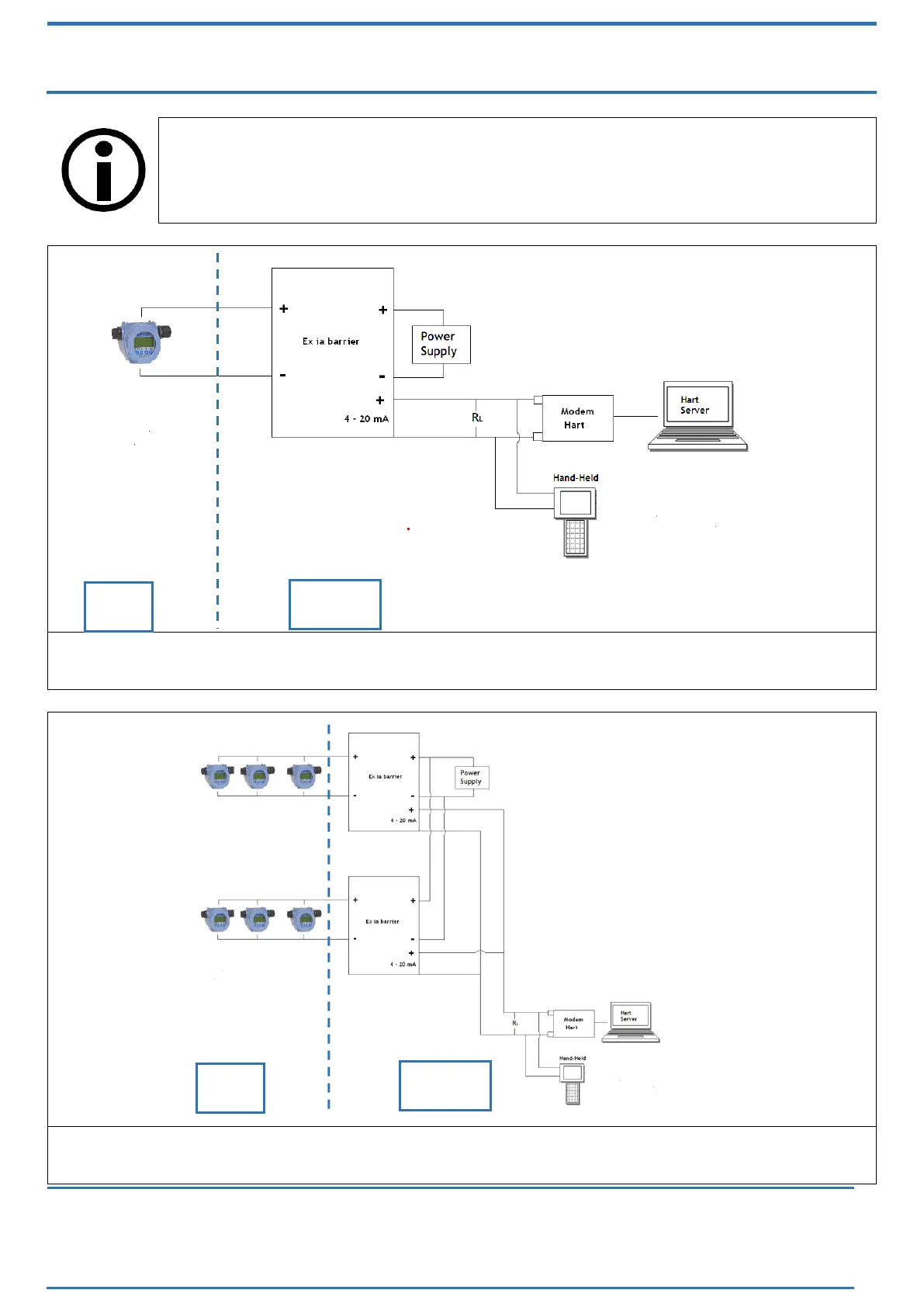

Figure 10: 4÷20 mA + Hart® modem connection with Ex ia barrier
Figure 11: Only Hart® multidrop connection
ATEX
ZONE
NORMAL
ZONE
ATEX
ZONE
NORMAL
ZONE
