ASP 116 EVOLUTION – INSTALLATION MANUAL
Sprinte SAS. All rights reserved , including translations.
55

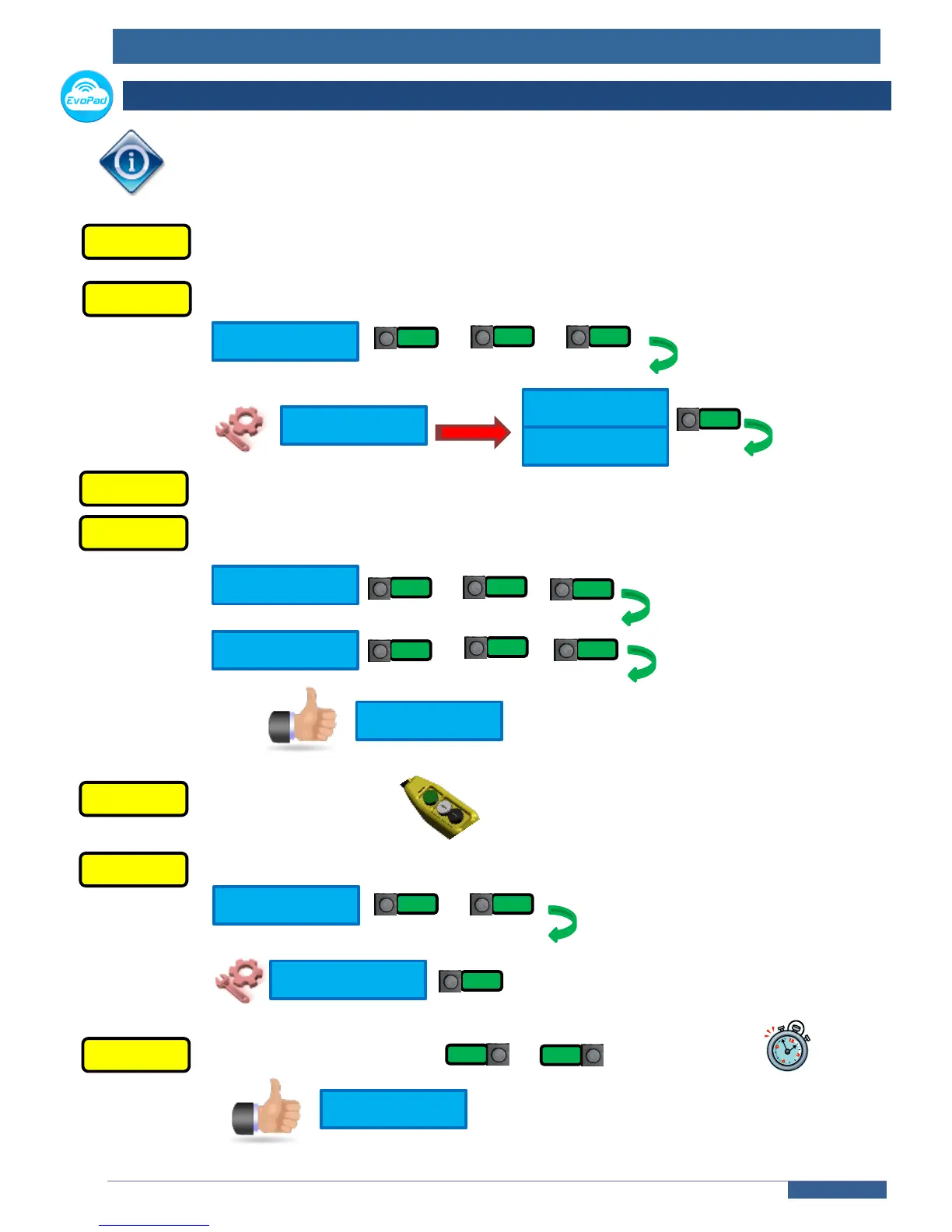

2. End limit switch tests
With theese tests, you can check :
- the actual opening of the safety chain on an end-limit switch.
- the fault memorizing (even on a power failure)
- the need of a technician intervention(delete the faults) to get the lift back in use.
Test of the upper end-limit switch : while in use, make a call to the highest level .
Test of the lower end-limit switch : while in use, make a call to the lowest level.
Go into the assistance menu :
+ …
Choose the end-limit switch to test
The lift moves in low speed to the end-limit switch.
Then the lift is out of order, go to the diagnosis menu :
+ …
+ …
In emergency operation, bring the car back to the floor : the lift is still out of
order.
Delete the faults
…
Switch back to the first screen : … and after 5 seconds
The lift is available.
STEP 1
STEP 2
Choose
ASSISTANCE
STEP 3
STEP 4
Choose
DIAGNOSIS
LIMIT SWIT. TEST
NO
LIMIT SWIT. TEST
HI LIMIT SWITCH
TEST EXTREME PV
LO LIMIT SWITCH
DIAGNOSIS
FAULT LIST
S. CHAIN N°1
END LIMIT SWITCH
STEP 5
STEP 6
ERASE FAULTS?
PRESS <ENTER>
STEP 7
IN USE P X
AVAILABLE
S. CHAIN N°1
END LIMIT SWITCH
ENTER
ENTER
ENTER
ENTER
BACK
BACK
 -
 -
 -
 -
 -
 -
 -
 -
 -
