Only when at least two adjacent Outrigger opening indicator lights and standard position hole lights are
on simultaneously, can the lifting boom be allowed to move in the blue area, and the lifting weight table
calls the non maximum lifting weight table; Beyond the blue area, the support outrigger unloading alarm
prohibits the lifting boom from working. At this time, the remote control only allows the safe side to rotate,
and other actions are prohibited from output; The vehicle handle can be operated by force.

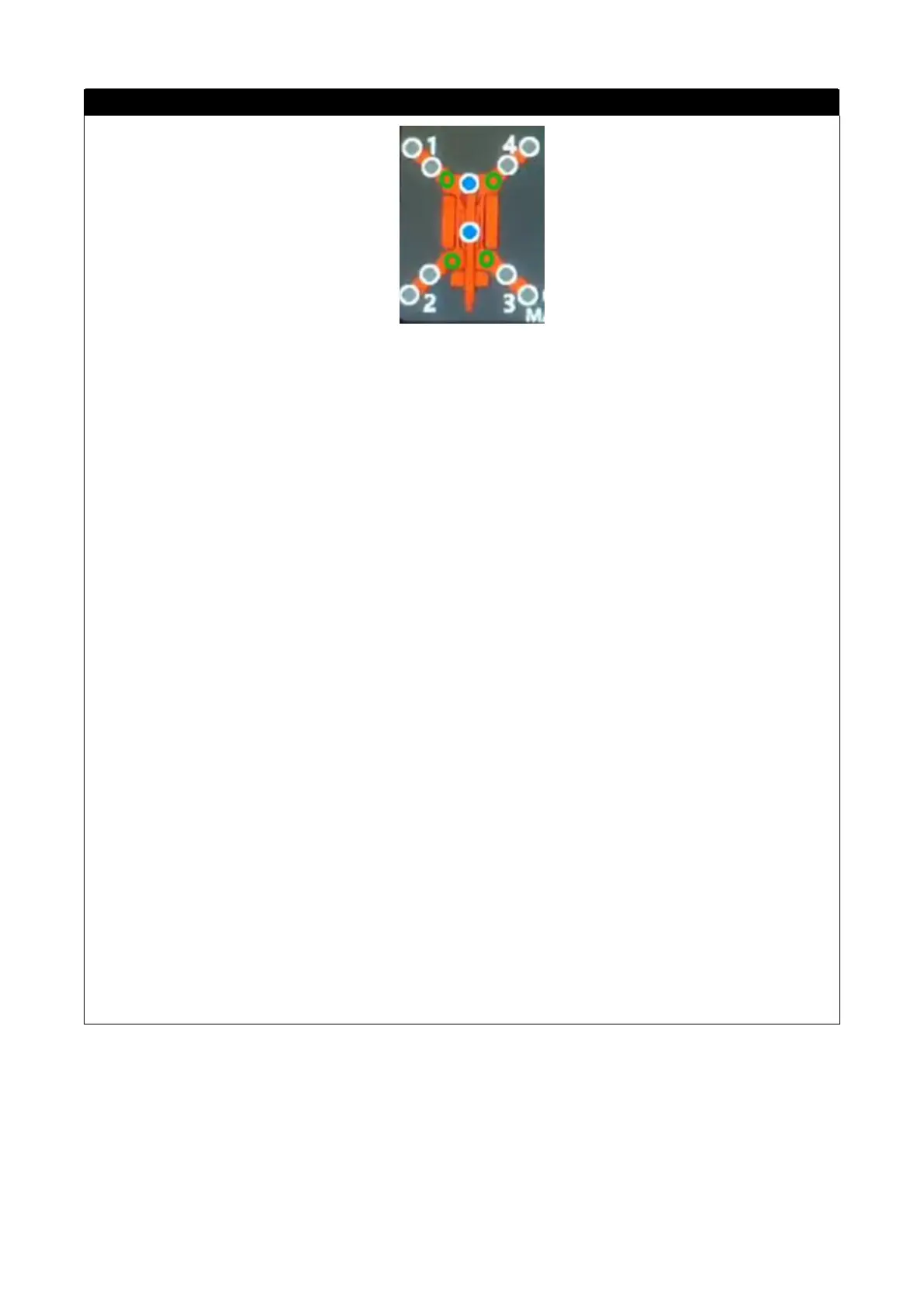

The blue area on the right side of the display screen indicates that the lifting boom is operating
normally, while the red area indicates that the lifting boom is prohibited from operating.
When the ① support outrigger is in a non-standard state, the lifting boom is prohibited from
moving within the range of 135 ° to 320 ° (red area) in the lifting mode (the display screen shows:
rotation position protection, separate interface for the support outrigger).
When the ② support outrigger is in a non-standard state, the lifting boom is prohibited from
moving within the range of 230 ° to 60 ° (red area) in the lifting mode (the display screen shows:
rotation position protection, separate interface for the support outrigger).
When the ③ support outrigger is in a non-standard state, the lifting boom is prohibited from
moving within the range of 230 ° to 60 ° (red area) in the lifting mode (the display screen shows:
protection for swing position, separate interface for the support outrigger).
When the ④ support outrigger is in a non-standard state, the lifting boom is prohibited from
moving within the range of 40 ° to 260 ° (red area) in the lifting mode (the display screen shows:
protection of the swing position, separate interface for the support outrigger).
