SPT SPT299 - Machine Operating Handle and Switch Description

SPT-299CZ-02
41

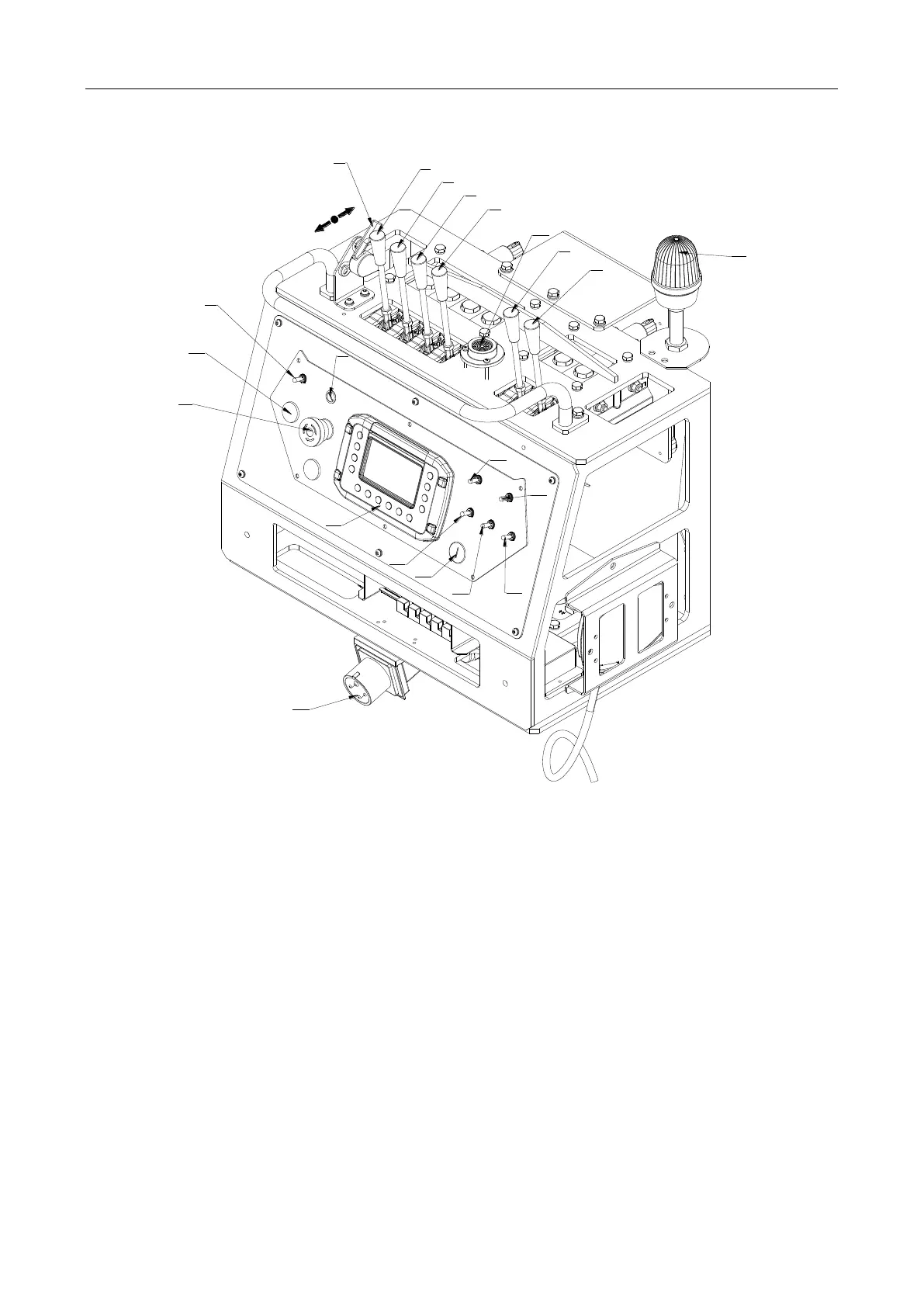

2. Operation console handle and switch description（10）
(1) Swivel handle/outrigger ① (2) Boom lift/outrigger②
(3) Boom extension/outrigger ③ (4) Hook lift/outrigger ④
(5) Left track (6) Right track
(7) Throttle (8) Fly jib working switch
(9) Alarm release switch (10) Force switch
(11) Emergency stop switch (12) Horn switch
(13) Display screen (14) Working mode switch
(15) Walking high and low speed switch (16) Manual/remote control switch
(17) Motor start/stop switch (18) Hook up/release switch
(19) Master key switch (20) Power socket
(21) Remote control indicator (22) Spirit level
17
20
7
1
2
3
4
22
5
6
13
14
15
19
18
16
21
8
9
10
11
