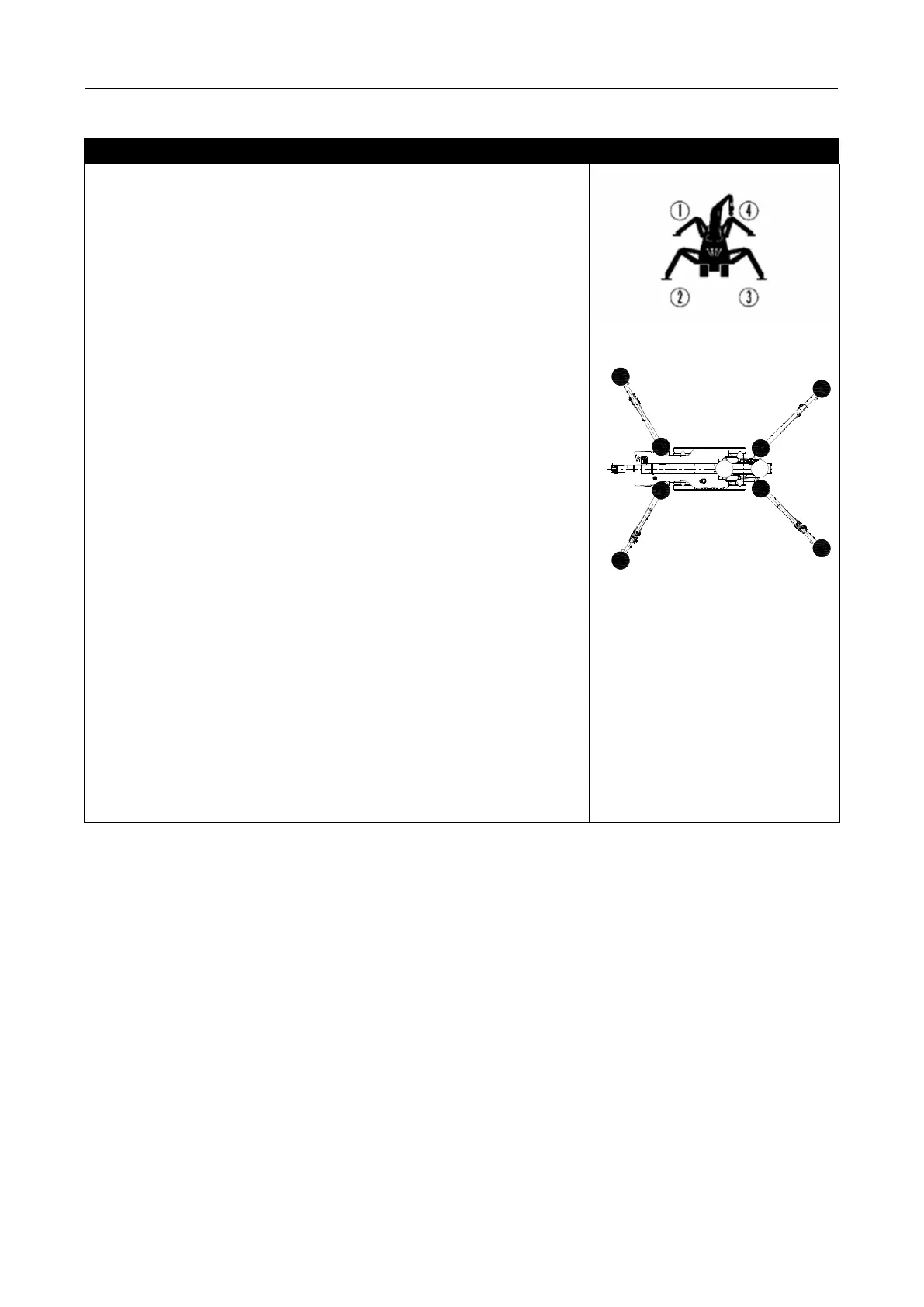

5. Outrigger Operation
1. Open the four outriggers by referring to the steps of manually
opening the outriggers.
2. Turn the working mode switch on the remote control up to the
outrigger mode (SW16), release the switch, the switch remains in the
outrigger mode position, and the machine switches from the walking
mode to the outrigger mode.
3. Push the four handles of the remote control L1, L2, L5, L6
forward, the oil cylinder extends, the outriggers fall until the ground is
effectively grounded, and the outrigger lights on the display on the
console are on. The outriggers can be operated individually, or the first
two or back two outriggers can be operated at the same time.
4. Continue to operate the remote control outrigger handle so that
the height of the track above the ground is about 80 mm.
5．While supporting the outriggers, observe the level gauge on the
operating table, so that the bubble of the level gauge is in the center
position, the machine is level, and the operation of the outriggers is
completed.
6. During the machine leveling process, you can also observe the X
and Y levelness values of the display screen. The hoisting mode ≥2.5°
alarms, and the walking mode ≥20° alarms.
