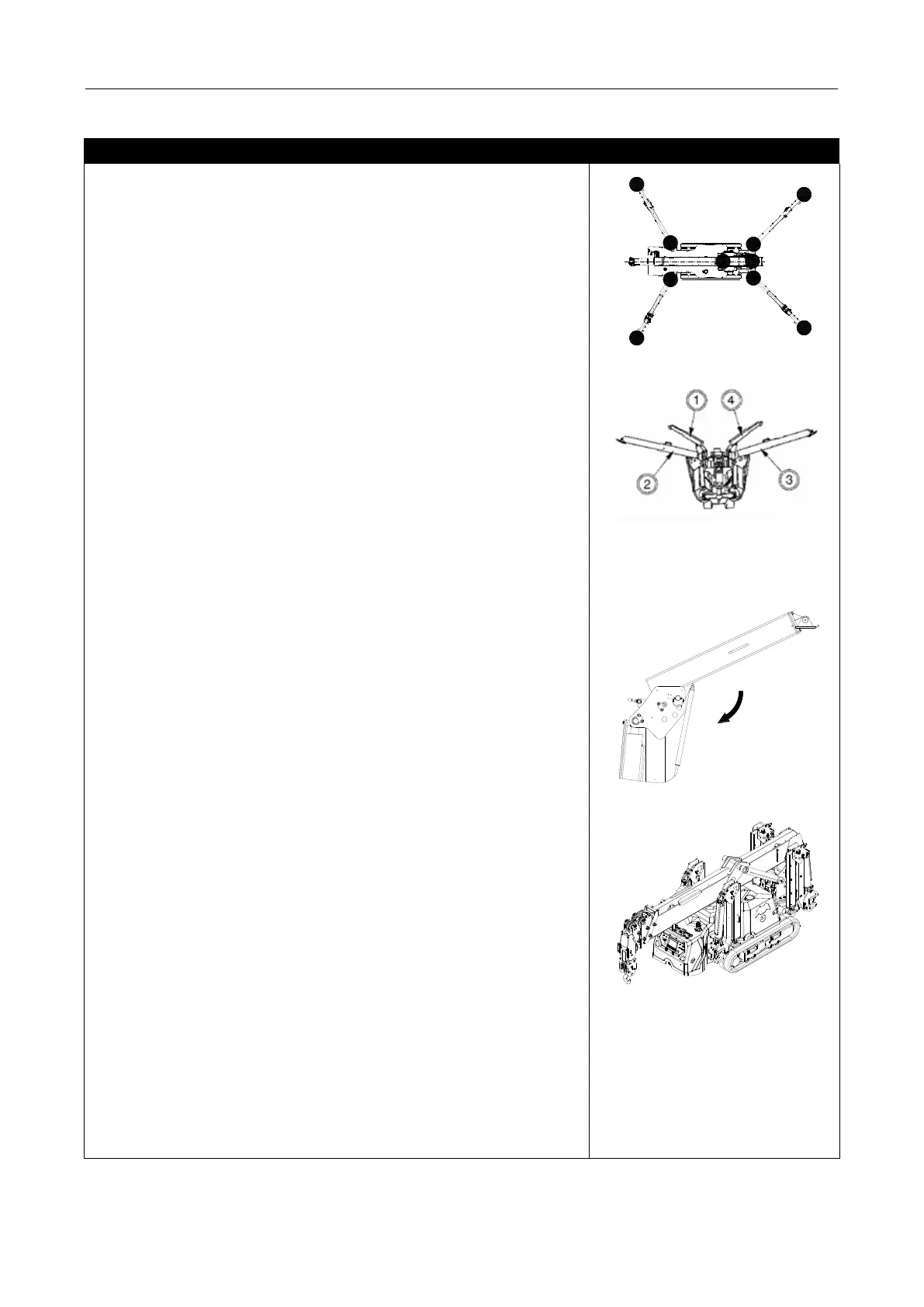

8. Take-up operation
1.Slowly pull the boom telescopic handle backwards until the
boom is fully retracted. The retracting of the boom will cause the hook
height to decrease. It is necessary to push the hook lifting handle
forward to increase the height of the hook from the ground and prevent
the hook from touching the ground or interfering with the machine.
2.Slowly operate the boom swing handle to turn the boom to the
center of the machine, touch the swing centering switch, and the boom
centering indicator light on the display lights up (blue).
3.Slowly pull the boom up-and-down handle backwards, the boom
up and down, when the boom up and down switch is touched during the
up and down process, the action will automatically stop the boom and
level, and the display screen will light up when the boom is retracted
( Blue), the boom s are closed.
4. Push the hook lifting handle forward to raise the hook. When the
hook rises, you need to hold it slightly with your hand to prevent it from
touching the machine console. When the hook rises and hits the heavy
hammer, the buzzer will sound an alarm (the machine enters the
self-locking protection state, pushing the handle forward will not work),
and the hook will automatically stop. At this time, there is a certain
distance between the hook and the boom. Retraction operation.
5. Push the hook handleforward with one hand, press the
retract/release button with the other hand, the hook rises, the hook
touches the nylon block of the boom, the action stops, and the hook is
retracted.
6. Turn the working mode switch up to the outrigger mode.
7.Pull the L1 L2 L5 L6 handles backwards, the outriggers retract, the
two walking tracks are grounded, and the four outriggers are off the
ground.
8. Press the engine stop button on the remote control to turn off
the engine.
9. Refer to the manual operation to retract the outriggers to retract
the four outriggers, and the machine is retracted.
