SPT-299CZ-02
40

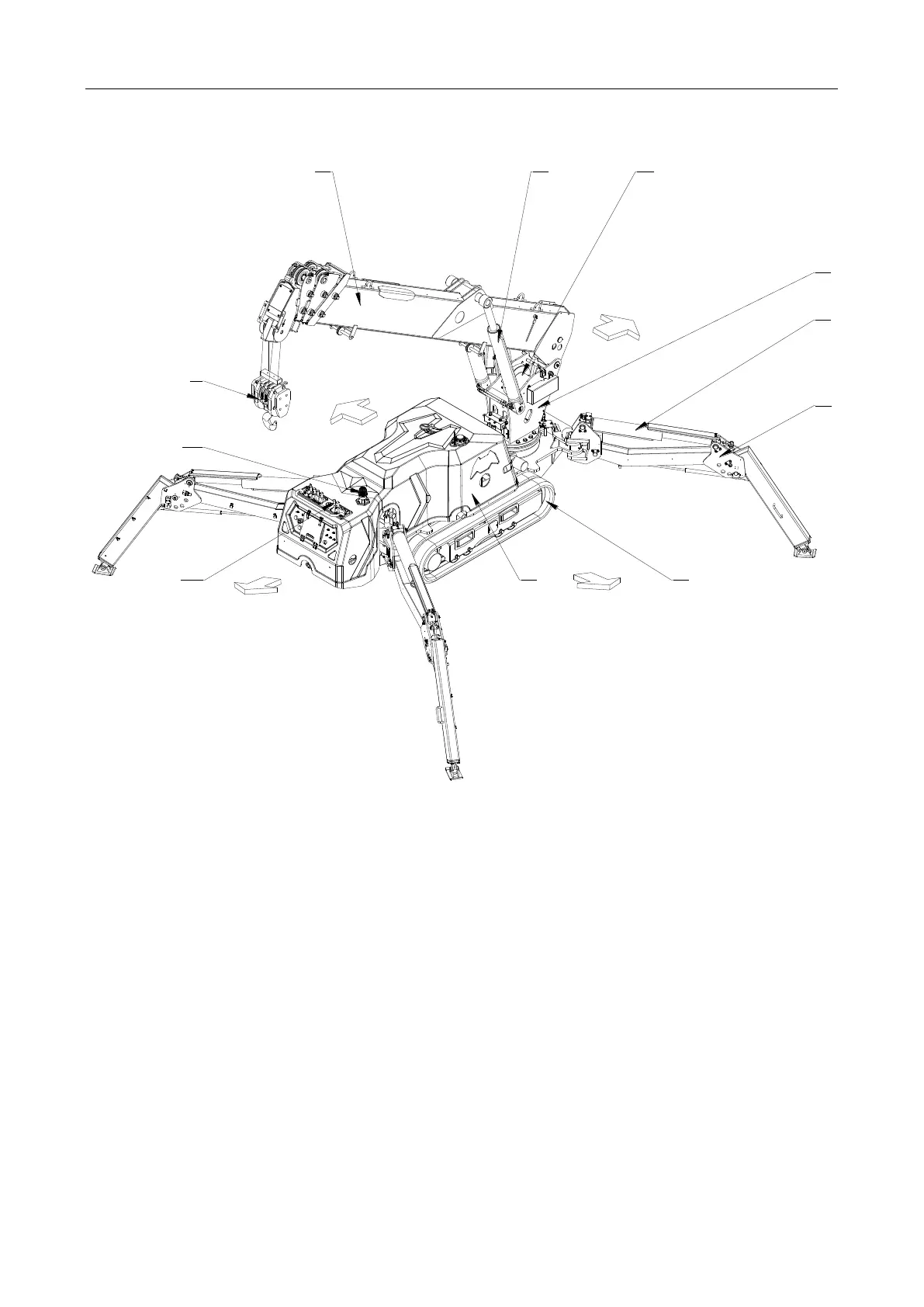

1. Machine composition
(1)Hook (2)Boom
(3)Fluctuation hydraulic cylinder (4)Hydraulic winch
(5)Rotation (6)Outrigger hydraulic cylinder
(7)Outrigger (8)Track
(9)Protective cover (10)Console
(11)Safety device
2 3 4
5
6
7
1
11
810 9
Right side
Left side
Reverse
Rorward
