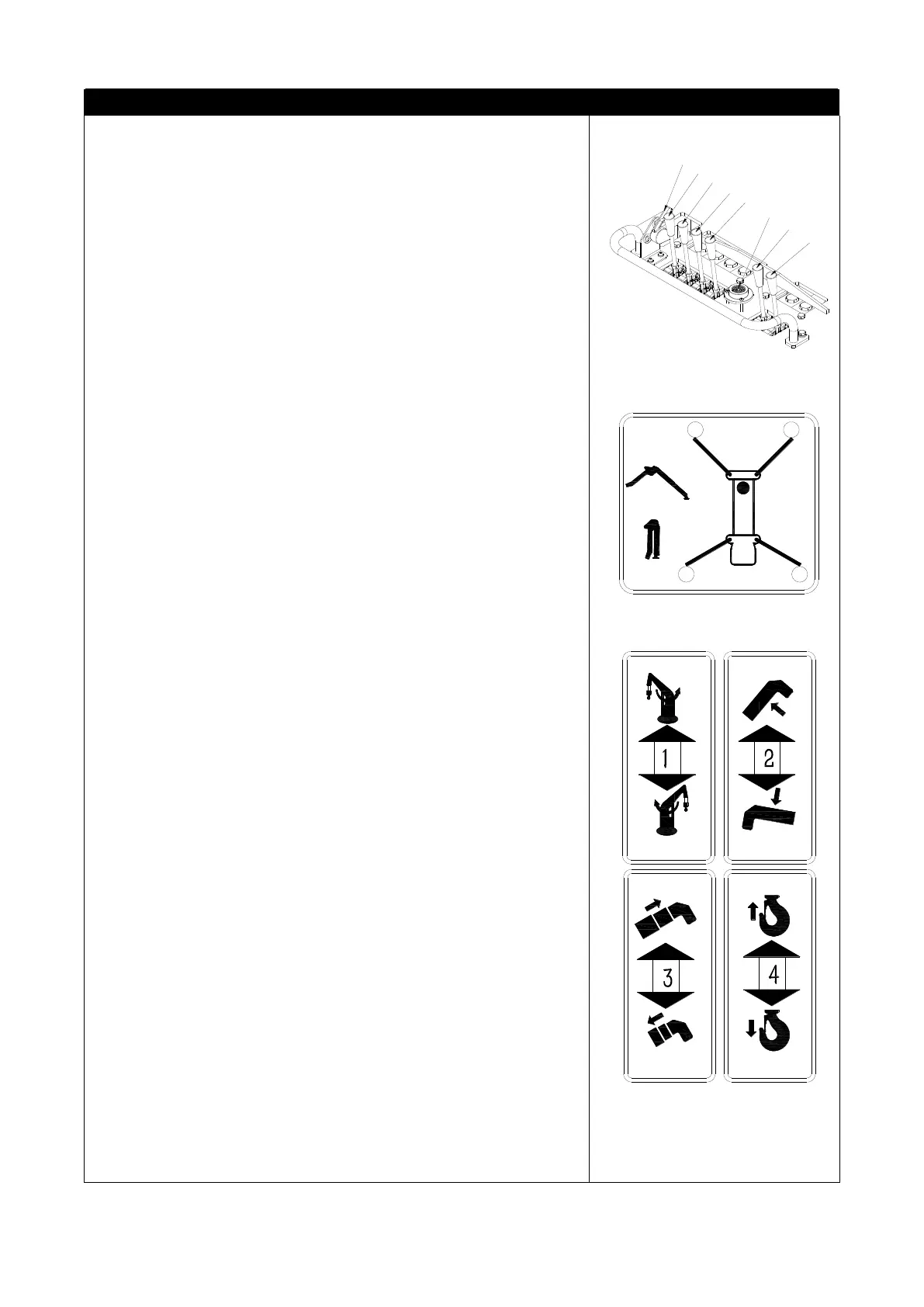

No. 1 to No. 4 handles of the console are composite handles. In the
outrigger mode, handles 1 to 4 correspond to the outriggers ① to ④
of the machine; in the boom mode, handles 1 to 4 correspond to the
boom left/right, raised/lowered, extended/retracted, and raised
Hook/drop hook.
The No. 5 and No. 6 handles of the console correspond to the left
and right movement of the machine.
Outrigger stretch
Turn the working mode switch upwards to the outrigger mode.
● Outrigger extension: Push the handle forward, the outrigger
cylinder extends, and the outrigger extends.
● Middle position: Loosen the handle, return the handle to the
middle position, and the outrigger stops moving.
● Outrigger retracted: Pull the handle backwards, the outrigger
cylinder retracts, and the outriggers retract.
Note: Changing the handle range and throttle size can adjust the
speed at which the outriggers extend or retract.
Boom swing, undulation, telescopic, hook lifting
Turn the working mode switch down to the jib mode.
● Left rotation (counterclockwise rotation): Push the No. 1
handle forward.
● Neutral position: loosen the handle, the handle returns to the
middle position, and the rotation stops.
● Right rotation (clockwise rotation): Pull the No. 1 handle
backward.
● Raising the boom: Push the No. 2 handle forward.
● Middle position: loosen the handle, the handle returns to the
middle position, the ups and downs stop
● Fit boom: Pull the No. 2 handle backward.
● Extend boom : Push the No. 3 handle forward.
● Middle position: loosen the handle, the handle returns to the
middle position, and the telescopic stop
● Retract boom: Pull back the No. 3 handle.
