2. Machine overview
2.1 Operating instructions
This machine is a mobile mini crawler crane equipped with rubber crawlers and booms. It comes with
two sets of power sources, which can walk on the work site and carry out lifting operations within the
amount of weight; it is also a remotely operated crane.
2.2 Machine composition
1. Walking device
2. Lifting weight
3. Safety device

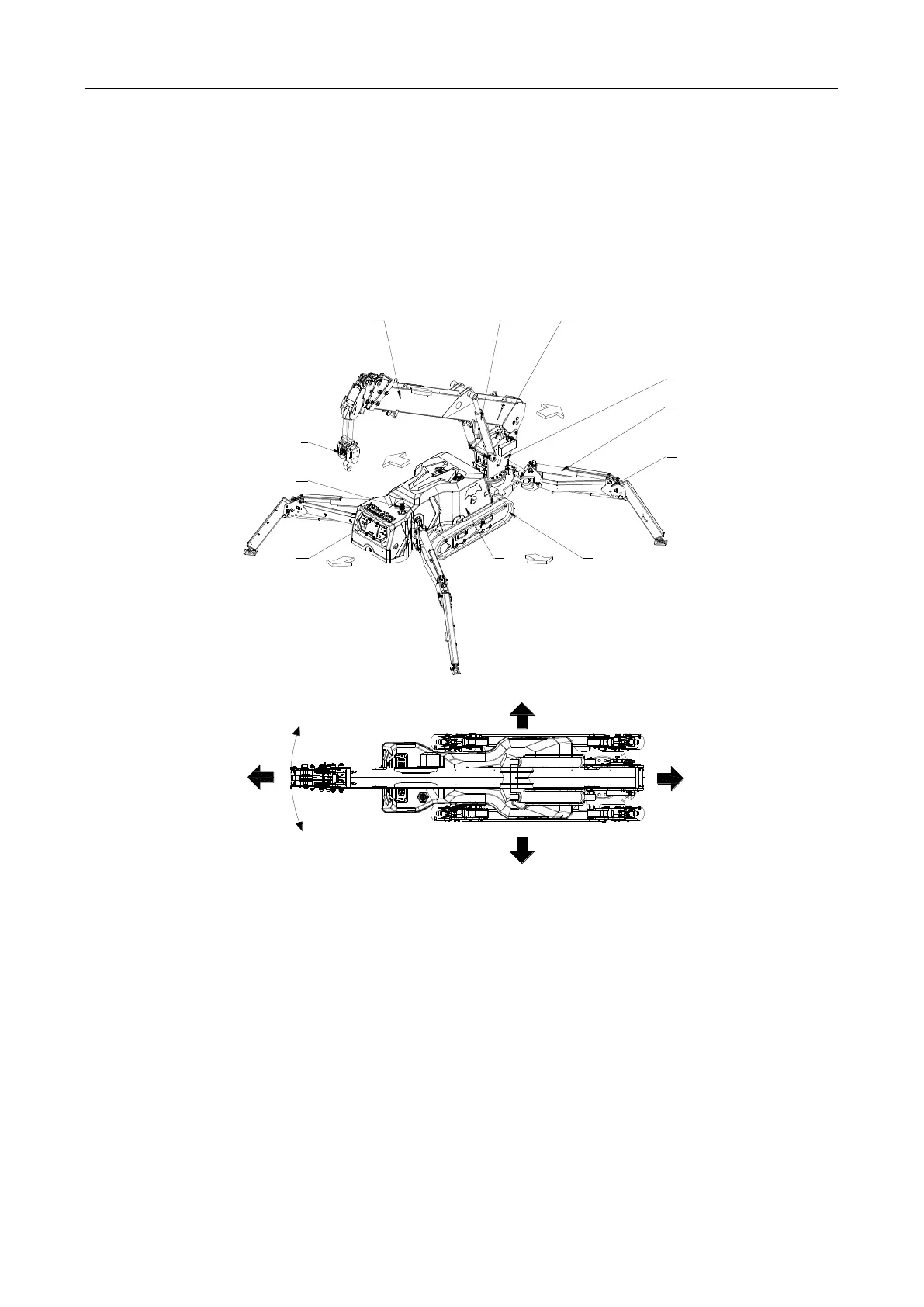

Standing in front of the operating device and facing the crane, the front, back, left, right, forward and
backward of the machine are shown in the figure in this operation manual.
The direction of rotation is defined as follows: Looking down on the crane from above, clockwise is
right-handed, and counterclockwise is left-handed.
2 3 4
5
6
7
1
11
810 9
Right side
Left side
Reverse
Rorward
Front
Left
Right
Reverse
clockwise
Counter lockwise
