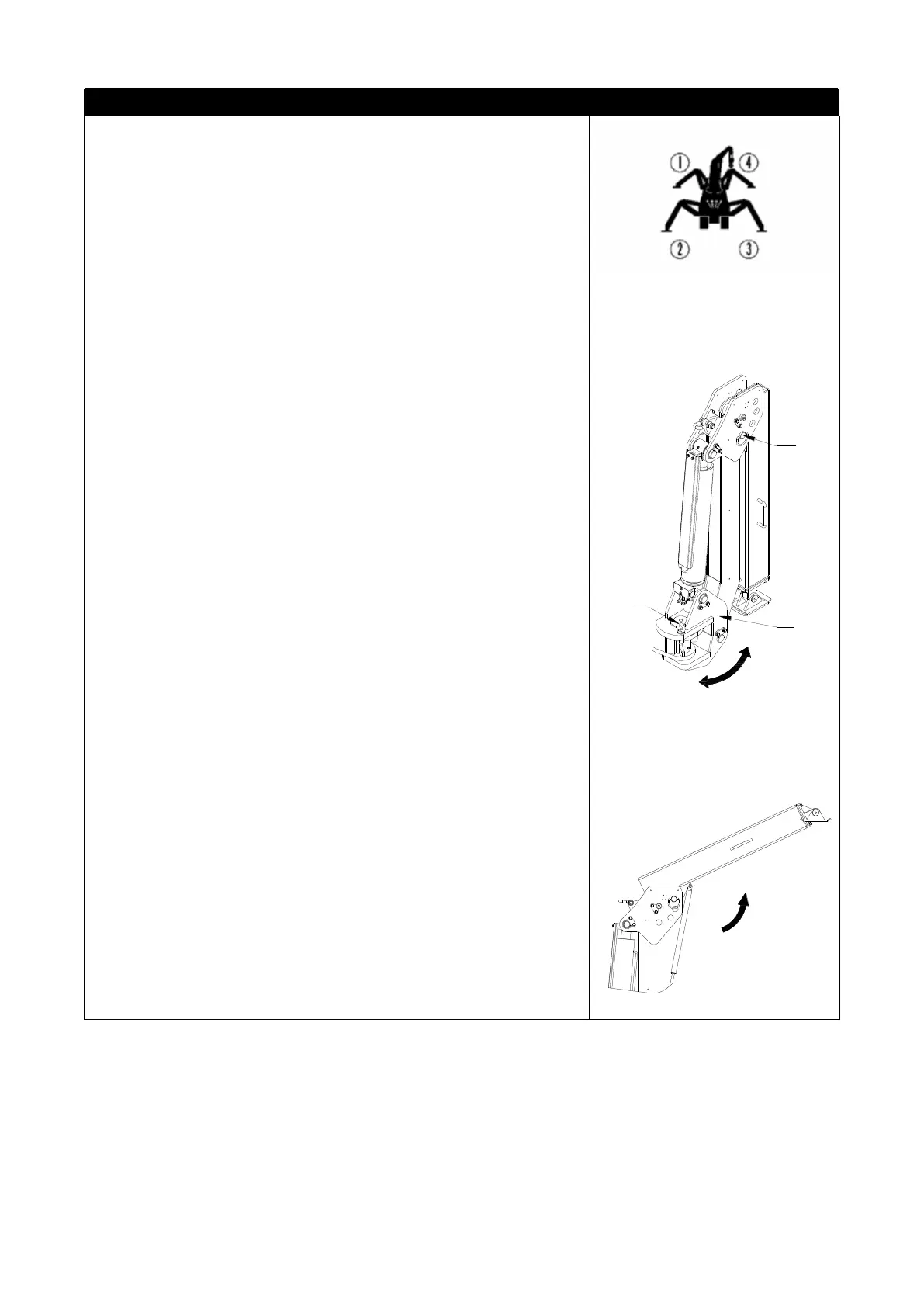

1. After the machine stops at the position where it needs to be
stopped, manually open the four outriggers.
The machine is equipped with 4 outriggers, numbered
①②③④, which are arranged counterclockwise relative to the
machine. The steps for opening the four outriggers are the same. The
following takes the opening of one outrigger as an example to
illustrate.
2. Pull the joint pull pin (1) out of the storage hole of the joint (3)
to a certain height, rotate the joint outward, and the pull pin will
rotate with the joint.
3. When the joint storage hole is aligned with the other hole of
the frame, the joint pull pin is automatically inserted into the hole.
The joint rotation is opened.
4. Pull out the outrigger pin (7) in the hole of the main outrigger
side plate (4), hold the lever outrigger handle (9) with one hand and
rotate it outwards, and the gas spring will also extend until the lever
outrigger is moved toward Rotate outside to the maximum position
hole.
5. When the pole outrigger hole is aligned with the maximum
position hole of the main outrigger side plate label, insert the outrigger
pin into the hole. An R-shaped pin is inserted into the hole at the other
end of the plug to be fixed, and the outrigger is fully opened.
6. Follow the same steps to open the remaining three outriggers
7. Check whether the outrigger pins and joint pull pins are firmly
fixed.
