SR Suntour RAIDON - SR Suntour Fork Intended Use

SR SUNTOUR - OWNERS MANUAL RAIDON / XCR /XCM / XCT / M3000AL / M2025
English
2
SR SUNTOUR - OWNERS MANUAL RAIDON / XCR /XCM / XCT / M3000AL / M2025
MAX ROTOR DIAMETER
[ mm ]
RAIDON / XCR / XCM V2 SERIES 185
XCT V2 / M SERIES 160

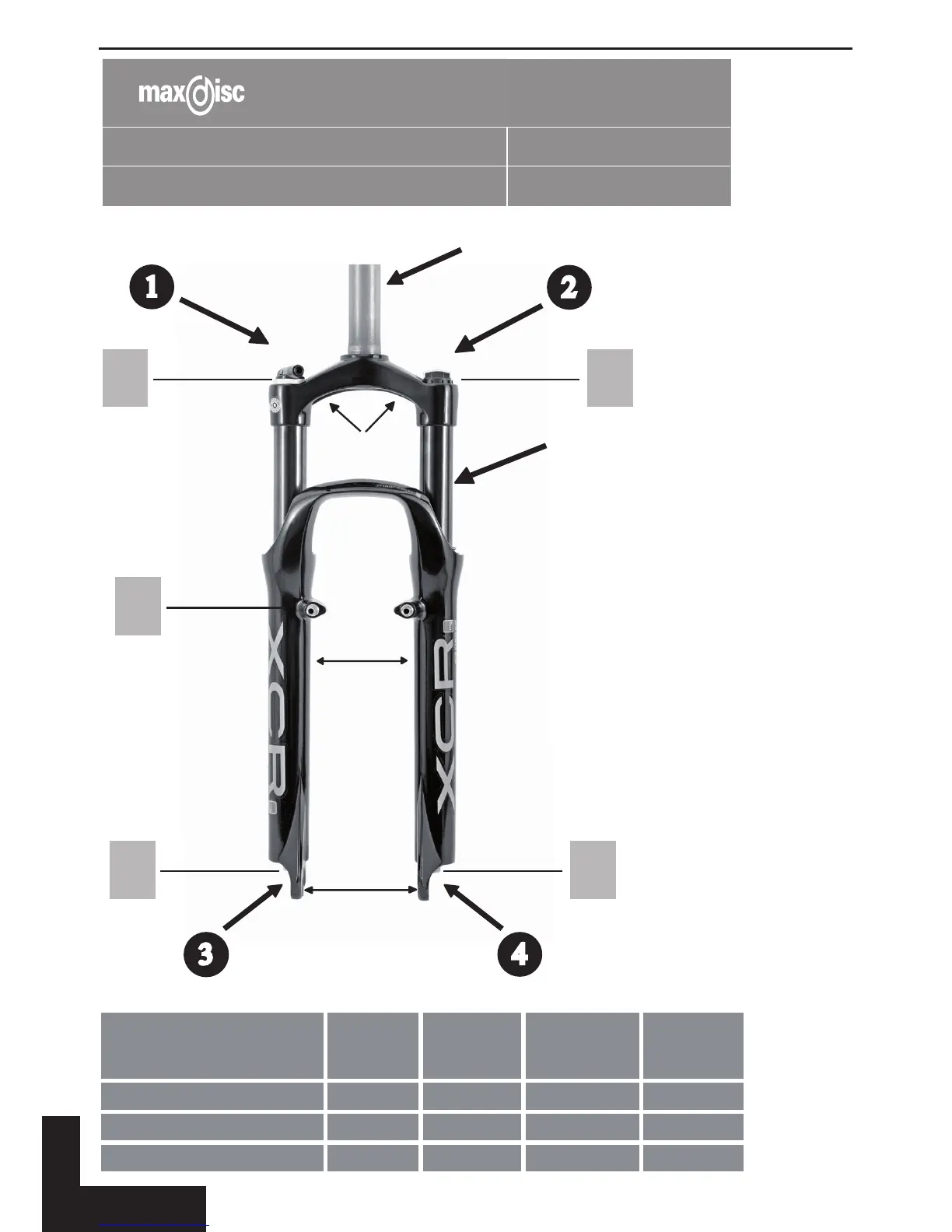

Stanchion
Tubes
1
2
4
3
Bottom Case
Dropouts
Fork Crown
Steerer Tube
A
E
C
B
D
RLD = Remote Lock Out +
Rebound Damping Adjust
LOD = Speed Lock Out +
Rebound Damping Adjust
HLO = Hydraulic Lock Out
RL = Remote Lock
LO = Speed Lock
MLO = Mechanical Lock Out
Model
Speed
Lock Out
Remote
Lock Out
Preload
Adjuster
Rebound
Adjuster
RAIDON RLD / RLD 15QLC 1 2 3
RAIDON LOD / LOD 15QLC 1 2 3
RAIDON RLD 15QLC 29“ 1 2 3
