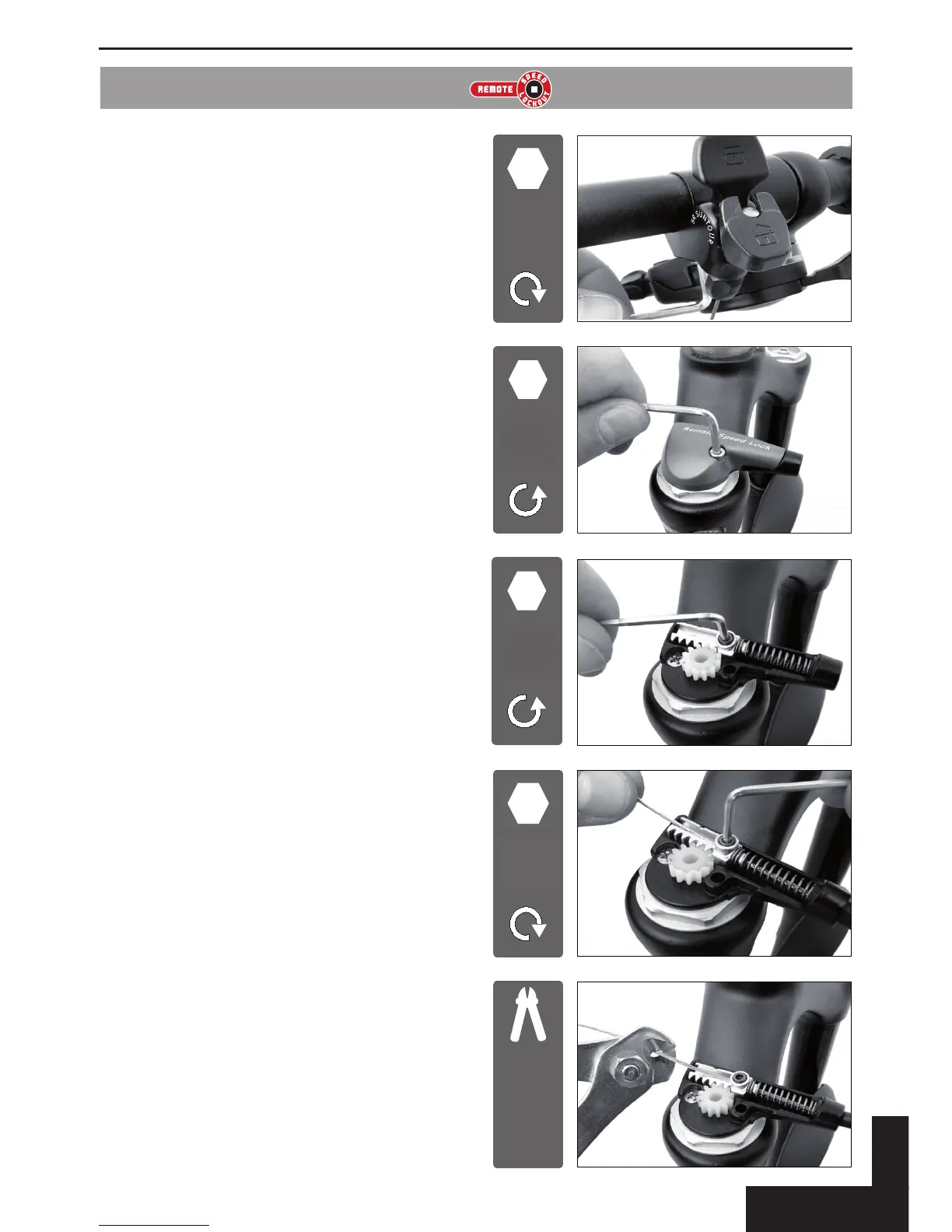

REMOTE LOCK LEVER INSTALLATION RAIDON RLD SERIES
Mount the „Remote-Lock-Lever“ on your
handlebar using a 3mm Allen key. After-
wards you can mount your brake and shif-
ting lever back on again.
3mm
1.5 Nm
Take o the plastic cover cap using a
2.5mm Allen key.
2.5mm
Unscrew the cable xing bolt using a 2mm
Allen key.
2.0mm
Thread the cable through the outer casing
stopper and through the cover unit hole.
Tension the cable slightly and tighten it
using a 2mm Allen key.
2mm
0.5 Nm
Cut the cable to a proper length to make
sure it will still t into the sliding carriage.
7mm
CUT
