SR SUNTOUR - OWNERS MANUAL RAIDON / XCR /XCM / XCT / M3000AL / M2025
English
8
SR SUNTOUR - OWNERS MANUAL RAIDON / XCR /XCM / XCT / M3000AL / M2025

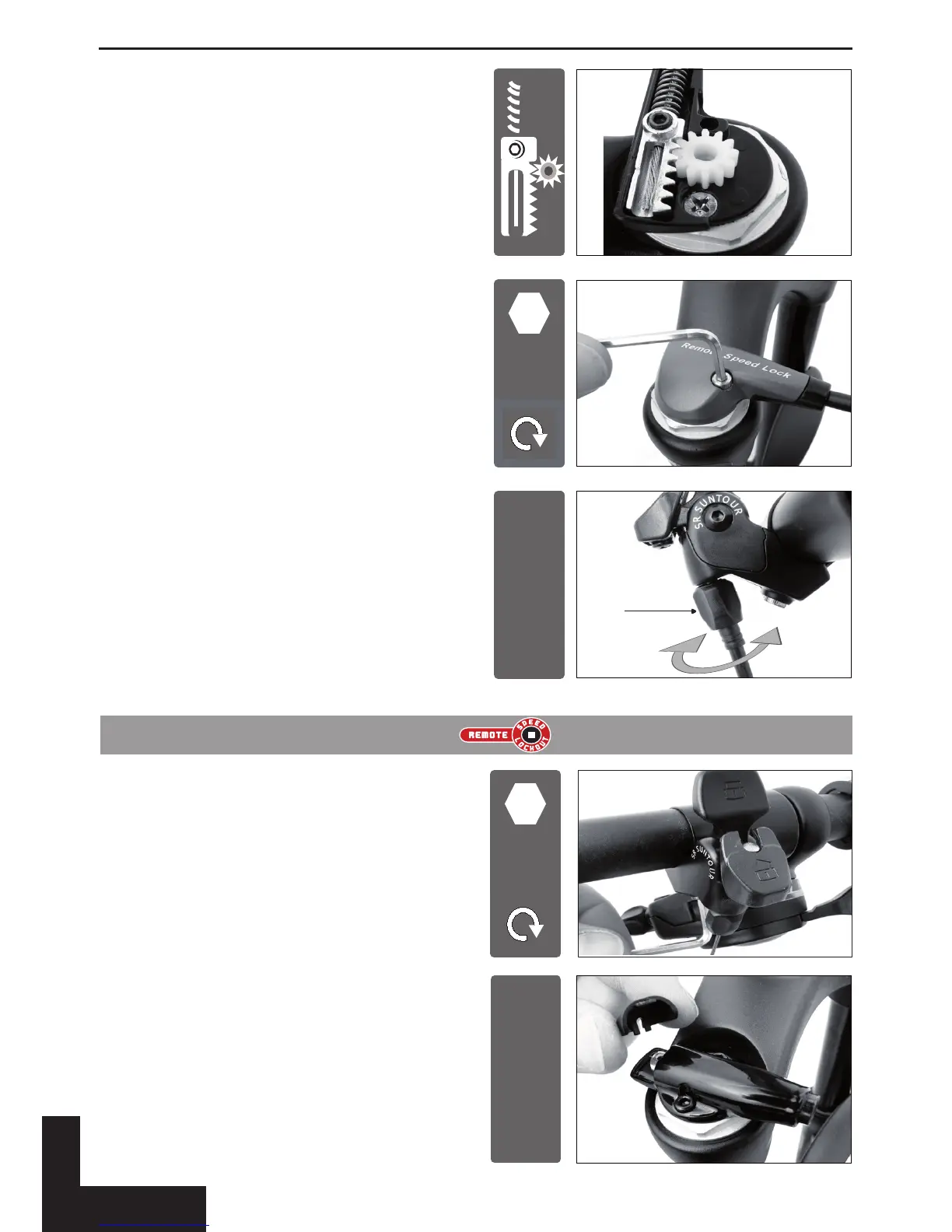

This pictures shows the remote lock unit
in the „OPEN“ position. The cable is cut
perfectly, still ts into the sliding carriage.
Reassemble the plastic cover cap using a
2.5mm Allen key. Tighten it slightly.
2.5mm
0.5 Nm
If the fork does not lock, the tension of the
cable is probably too low. In this case you
have to increase the tension of the cable
by turning the adjustment barrel counter-
clockwise. If the cable‘s tension is too high
and the fork does not unlock, you have to
turn the adjust barrel clockwise.
TURN
Adjustment
Barrel
REMOTE LOCK LEVER INSTALLATION RAIDON RL / XCR RL SERIES
Mount the „Remote-Lock-Lever“ on your
handlebar using a 3mm Allen key. After-
wards you can mount your brake and shif-
ting lever back on again.
3mm
1.5 Nm
Take o the plastic cover
TAKE OFF
To Next Page
