Rack InstallatIon
RACK INSTALLATION
1. If the connecting rods are not pre-assembled, use the mounting hardware to assemble the
connecting rods and bolt them into the cross brace of the rack. Use a 4 mm hex wrench to tighten the
bolts to 6-8 N
•
m (53-70 in-lb).
4 mm
4 mm

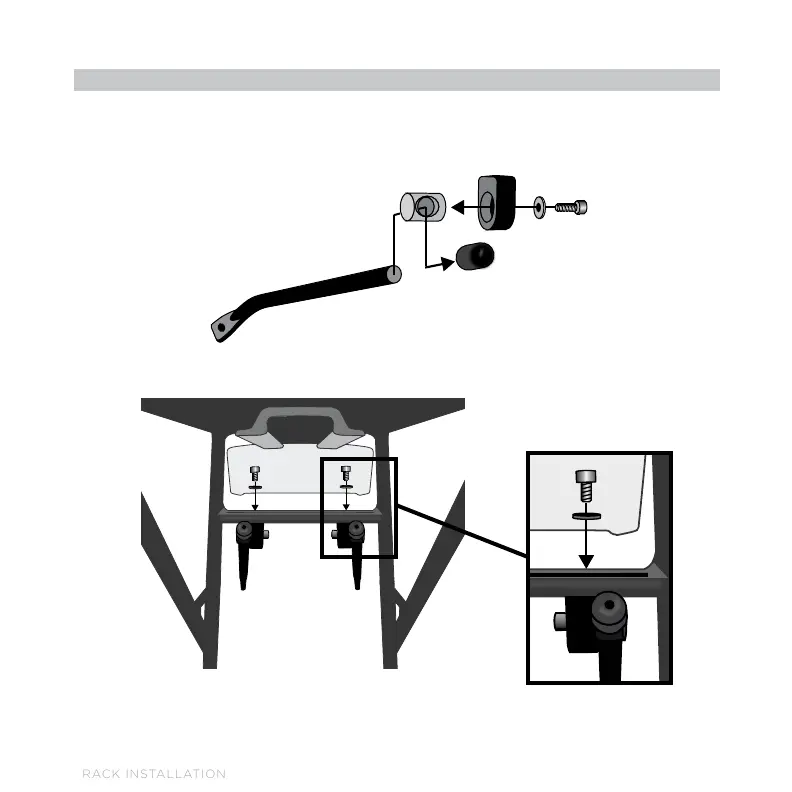

CONNECTING ROD
MOUNTING HARDWARE
VIEW FROM THE REAR
