38
InstalacIón Del Portaobjetos
INSTALACIÓN DEL PORTAOBJETOS

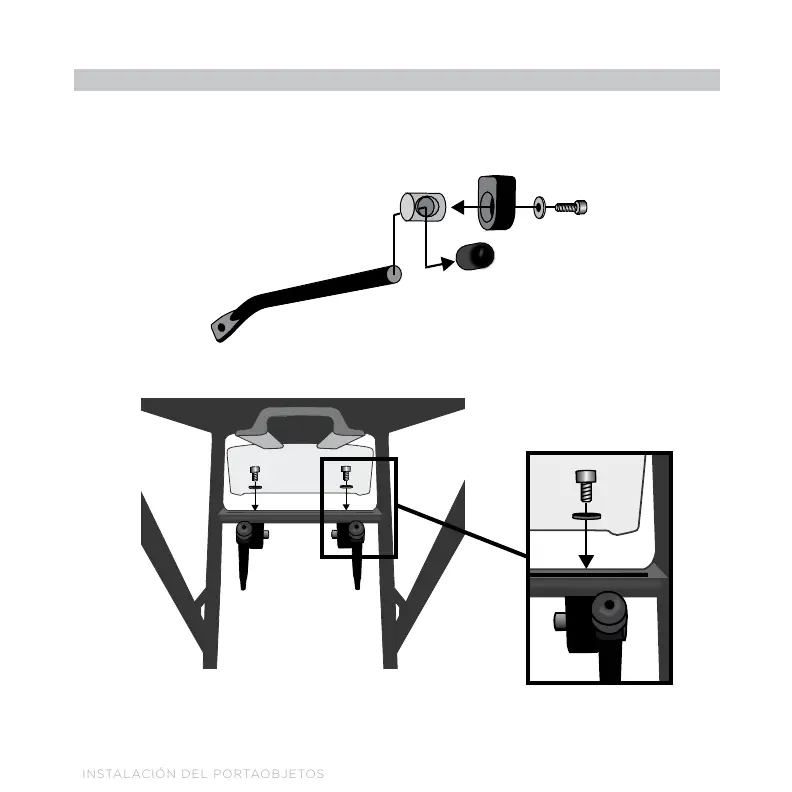

1. Si las varillas de conexión no vienen ya ensambladas, utilice las herramientas de montaje para
ensamblarlas y atornillarlas al travesaño del portaobjetos. Con una llave Allen de 4 mm, apriete los
tornillos con un par de entre 6 y 8 N•m.
4 mm
4 mm
VARILLA DE CONEXIÓN
TORNILLERÍA
DE MONTAJE
VISTA TRASERA
