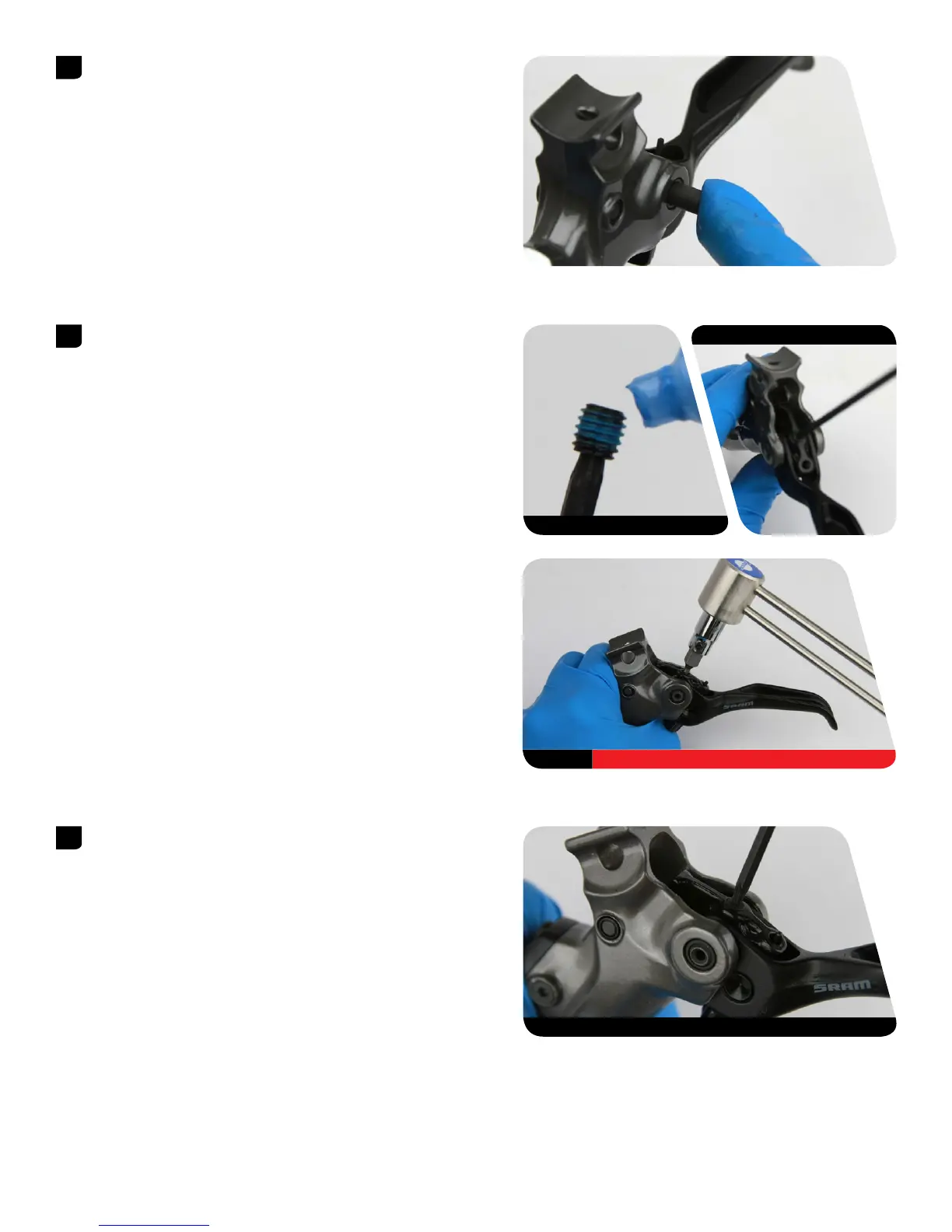

18Lever Blade Installation
Line up the cam and lever blade with the holes in the lever body,
then press the pivot pin through the holes.
Apply a small amount of Loctite® Threadlocker Blue 242® onto the
pinch bolt.
Use a T8 TORX® wrench to thread the pinch bolt into the lever
body. Use a torque wrench and a T8 TORX® wrench to tighten the
bolt to 2.7-3.2 N·m (24-28 in-lb).
Use a T8 TORX® wrench to install a new binder bolt plug.
7
8
Loctite® Threadlocker Blue 242® 20 mm or 15 mm Thru Axle
22 mm 2.7-3.2 N•m (24-28 in-lb) 22 mm
9
T8 TORX wrench 2.7-3.2 N•m (24-28 in-lb) 22 mm
