SRAM Guide Ultimate Service Manual

11Caliper Piston Removal

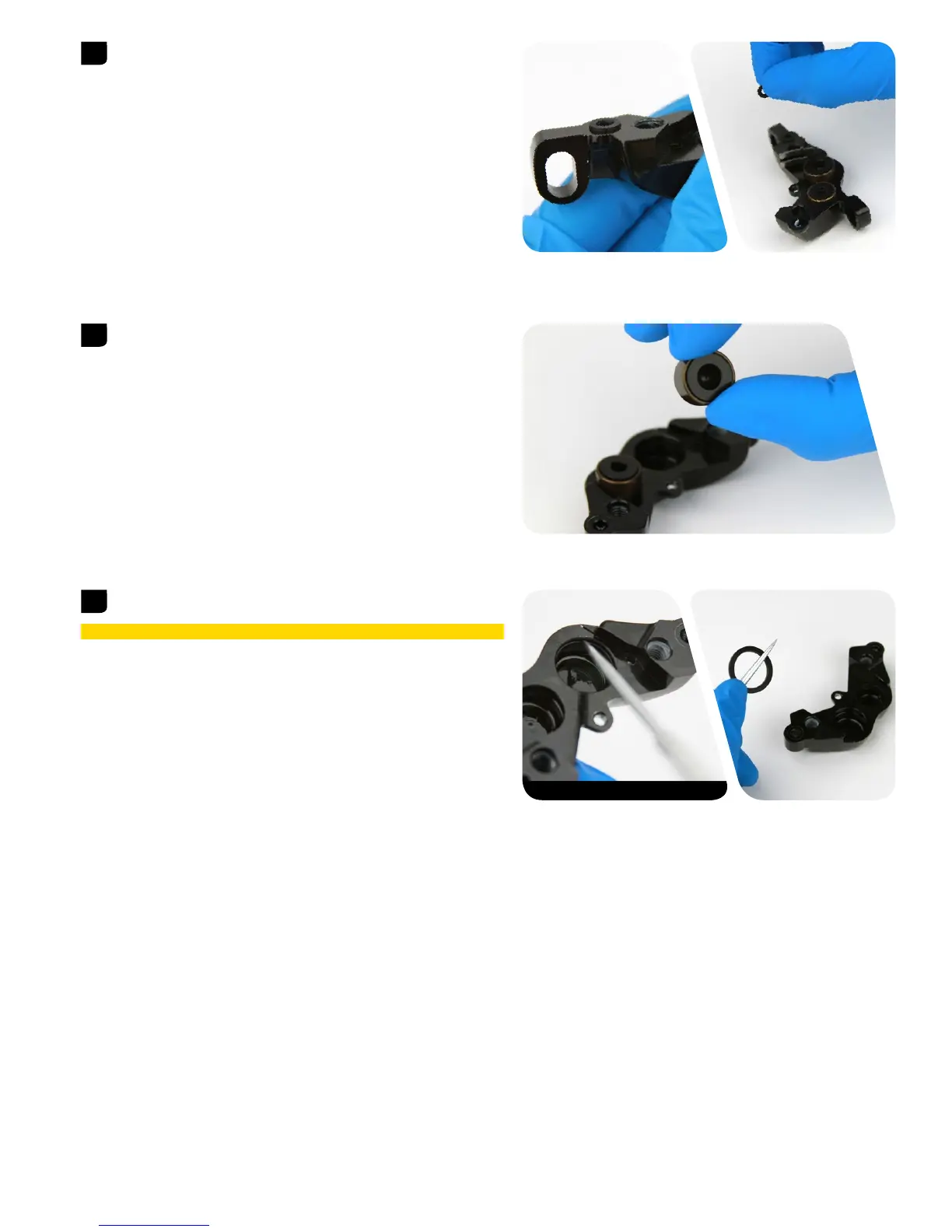

Remove both of the caliper o-rings from the outboard side of the
caliper.
Remove the pistons from each caliper body half.
Use a pick to remove the piston seals from each caliper body half.
Install new seals inside each caliper body half.
⚠ CAUTION
Do not scratch the seal gland with the pick. Scratches could cause fluid
to leak when the brake is applied, which will contaminate the brake
pads and could lead to a brake failure.
7
8
9
Pick 20 mm or 15 mm Thru Axle

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
