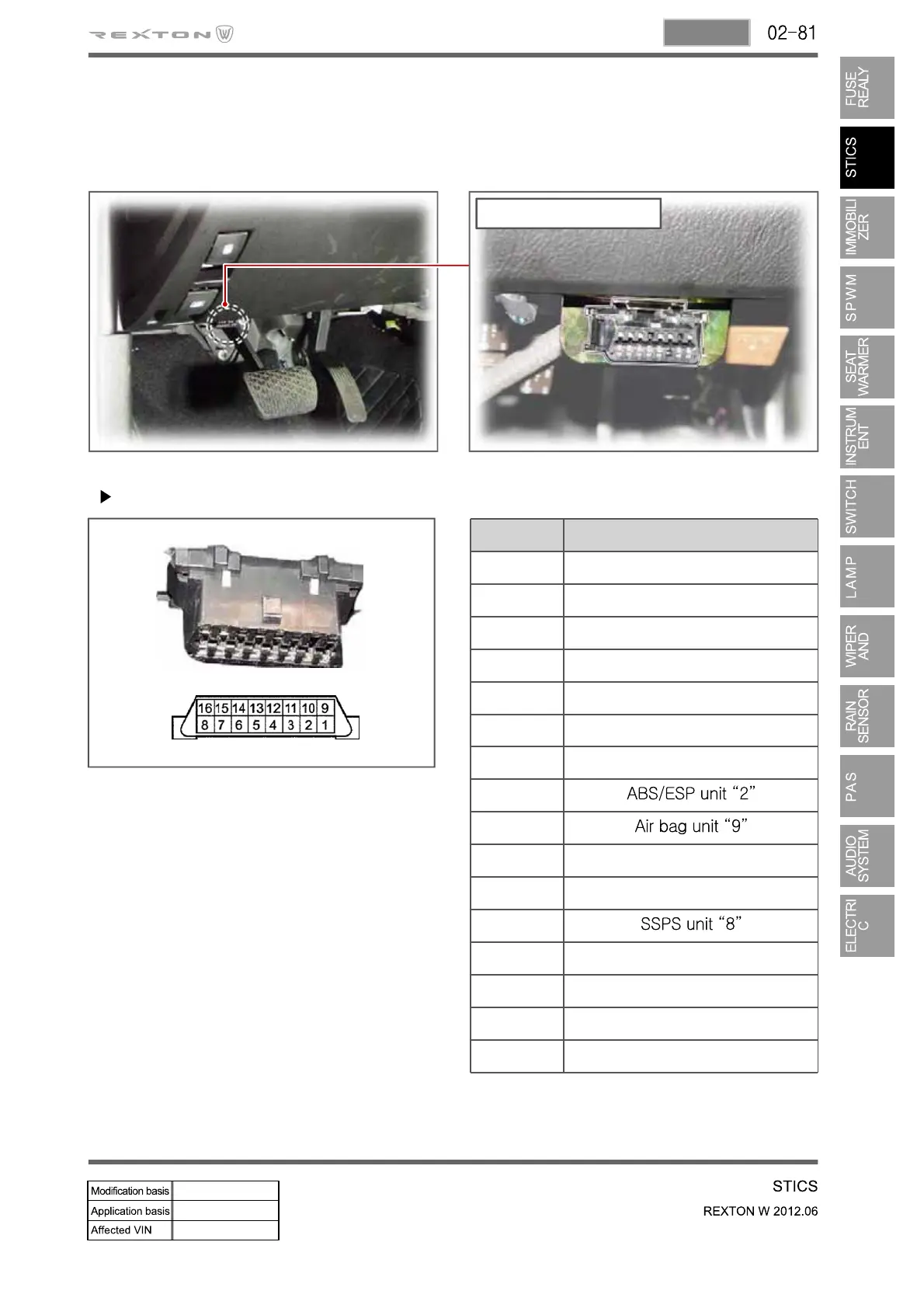

4) Diagnostic Connector
The diagnostic connector is located at bottom of instrument panel. It consists of 16 pins.
The REKES key should be coded by the scan tool.
Connector Pin
Diagnostic connector
Pin No. Function
1 CAN HI S203 "18"
2 CAN LO S203 "8"
3 -
4 Ground
5 Ground
6 CAN HI S202 "14"
7 -
8
9
10 -
11 TCU "A18"(5-A/T)
12
13 TCCU "21"
14 CAN LO S202 "4"
15 STICS "B21"
16 B+
