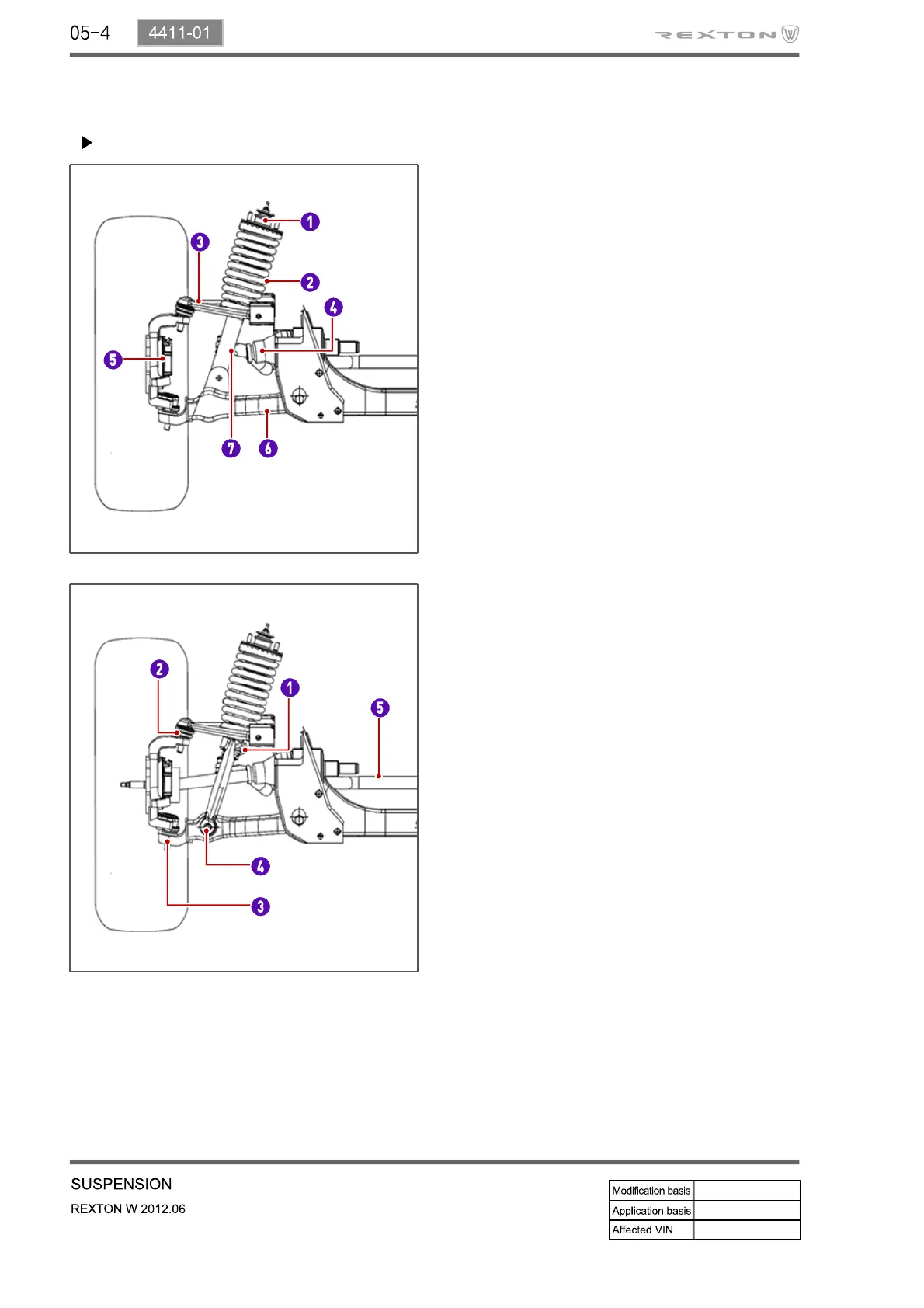

3. LAYOUT AND COMPONENTS
Front View
Shock absorber assembly
Coil spring
Upper arm assembly
Axle shaft assembly
Steering knuckle
Lower arm assembly
Shock absorber yoke assembly
1.
2.
3.
4.
5.
6.
7.
Shock absorber (to yoke) bolt:
122.5 ~ 142.1 Nm
Upper arm (knuckle side) nut:
137.2 ~ 156.8 Nm
Lower arm (knuckle side) nut:
137.2 ~ 156.8 Nm
Yoke lower (lower arm side) nut:
147.0 ~ 166.6 Nm
