3170-01

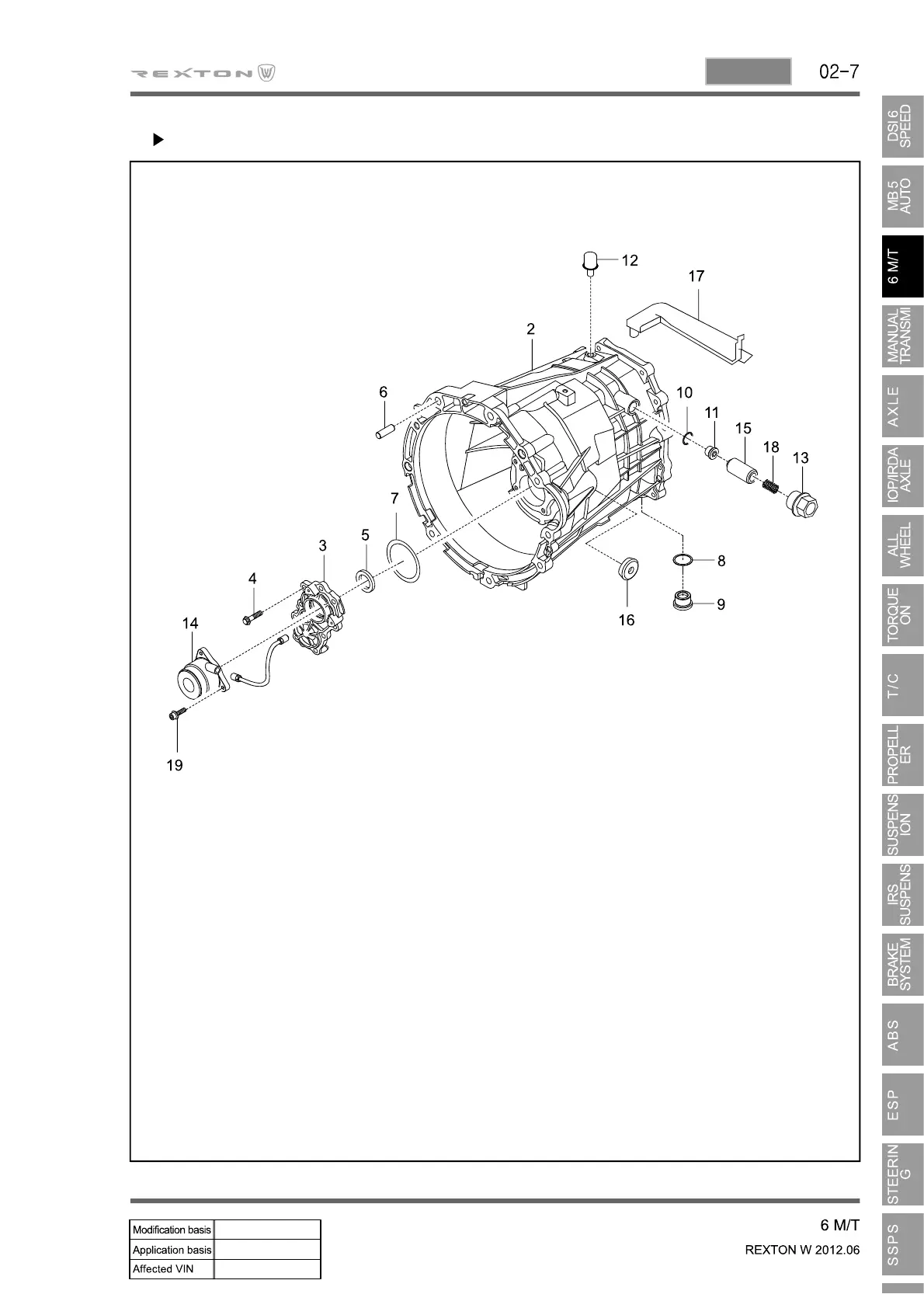

3163161-00 Housing
Case - Transmission
Retainer - Bearing
Bolt - Seal (19.6 ~ 24.5 Nm)
Seal - Oil
Bushing
Spacer
Gasket
Plug (58.8 ~ 78.4 Nm)
Gasket
Plug
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Breather - Air
Pulg - Seal (53.9 ~ 67.6 Nm)
Cylinder assembly - Concentric slave
Plunger - Rolling
Boot
Guide - Oil
Spring - Guide
Bolt - Flange (42.1 ~ 53.9 Nm)
12.
13.
14.
15.
16.
17.
18.
19.
