Brakes
Front Brake Lever Free Play
SERVICE MAINTENANCE,
LUBRICATION AND
ADJUSTMENTS (cont.)

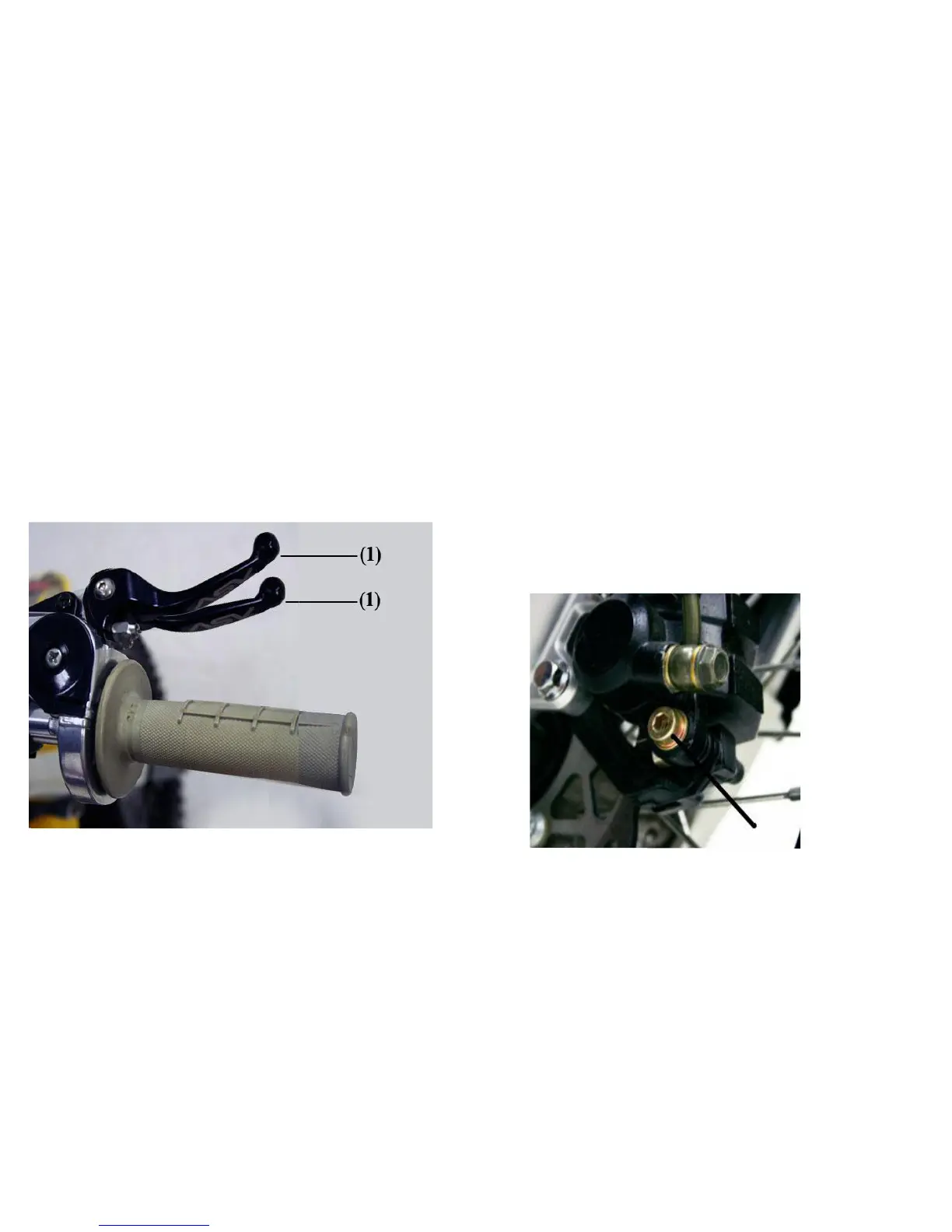

(1) Front Brake Lever Free Play
Brake Caliper Free Play Adjusting Nut
1. Check free play by pulling in slowly on the front
brake lever (1) until the brake starts to engage.
Free play should be between approximately 3/8-
to 13/16-inch (10-20mm).
2. If necessary, adjust to the specied range. To do
this nd the brake adjusting nut on the lower
portion of the brake caliper. Using a hex-head
wrench turn the bolt clockwise to increase free
play or counter-clockwise to reduce free play.
