DocID028599 Rev 7 39/82

UM1974 Hardware layout and configuration

CN9

27 D66 CAN_TX PD1 CAN_1

29 D65 I/O PG0 I/O

2 D51 USART_B_SCLK PD7

USART_2

4 D52 USART_B_RX PD6

6 D53 USART_B_TX PD5

8 D54 USART_B_RTS PD4

10 D55 USART_B_CTS PD3

12 GND GND - ground

14 D56 SAI_A_MCLK PE2

(3)

SAI_1_A

16 D57 SAI_A_FS PE4

18 D58 SAI_A_SCK PE5

20 D59 SAI_A_SD PE6

22 D60 SAI_B_SD PE3

SAI_1_B

24 D61 SAI_B_SCK PF8

26 D62 SAI_B_MCLK PF7

28 D63 SAI_B_FS PF9

30 D64 I/O PG1 I/O

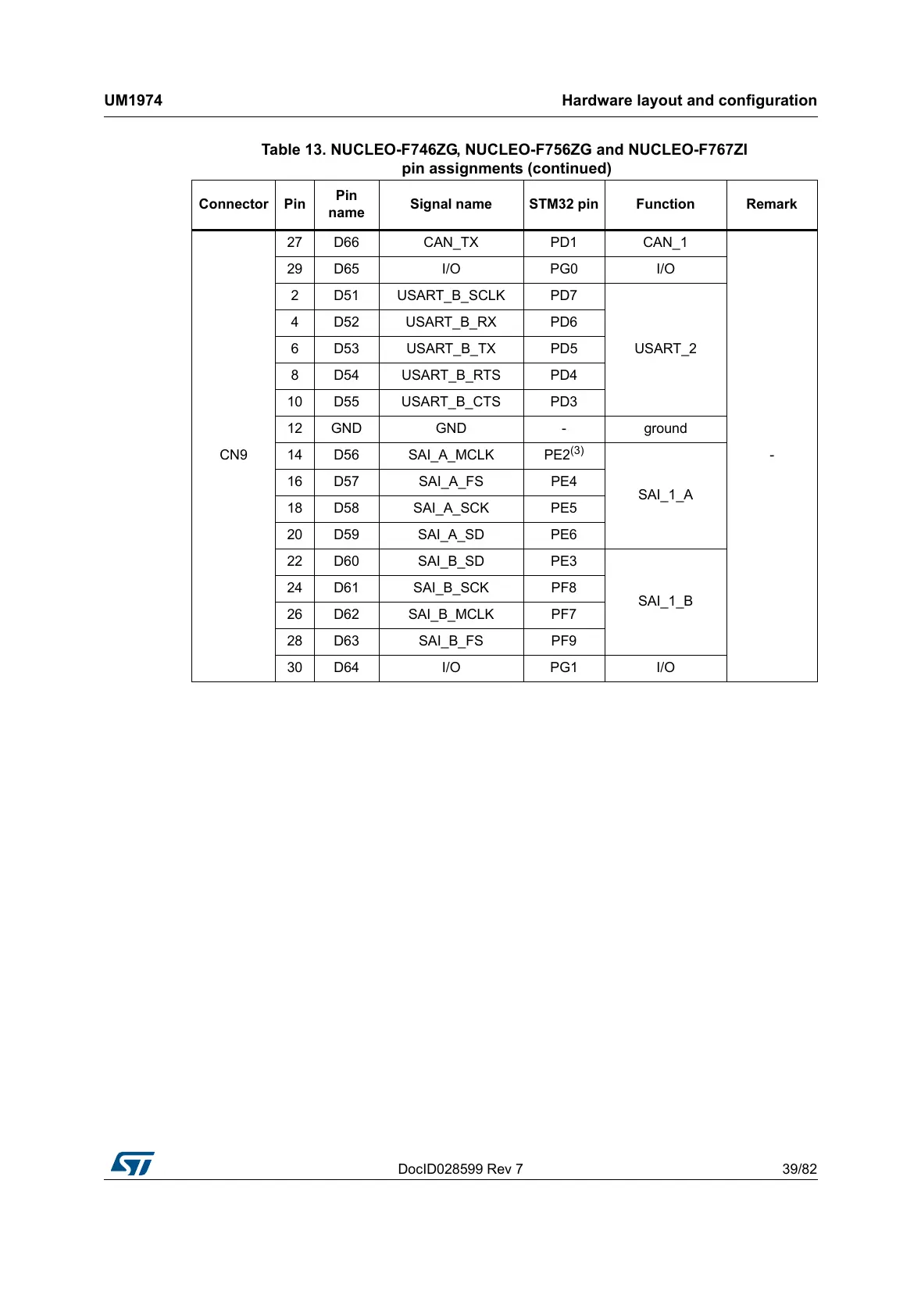

Table 13. NUCLEO-F746ZG, NUCLEO-F756ZG and NUCLEO-F767ZI

pin assignments (continued)

Connector Pin

name

Signal name STM32 pin Function Remark
