UM2206 Rev 3 13/55
UM2206 Hardware layout and configuration
54
9.2 STM32 Nucleo-64-P board mechanical drawing

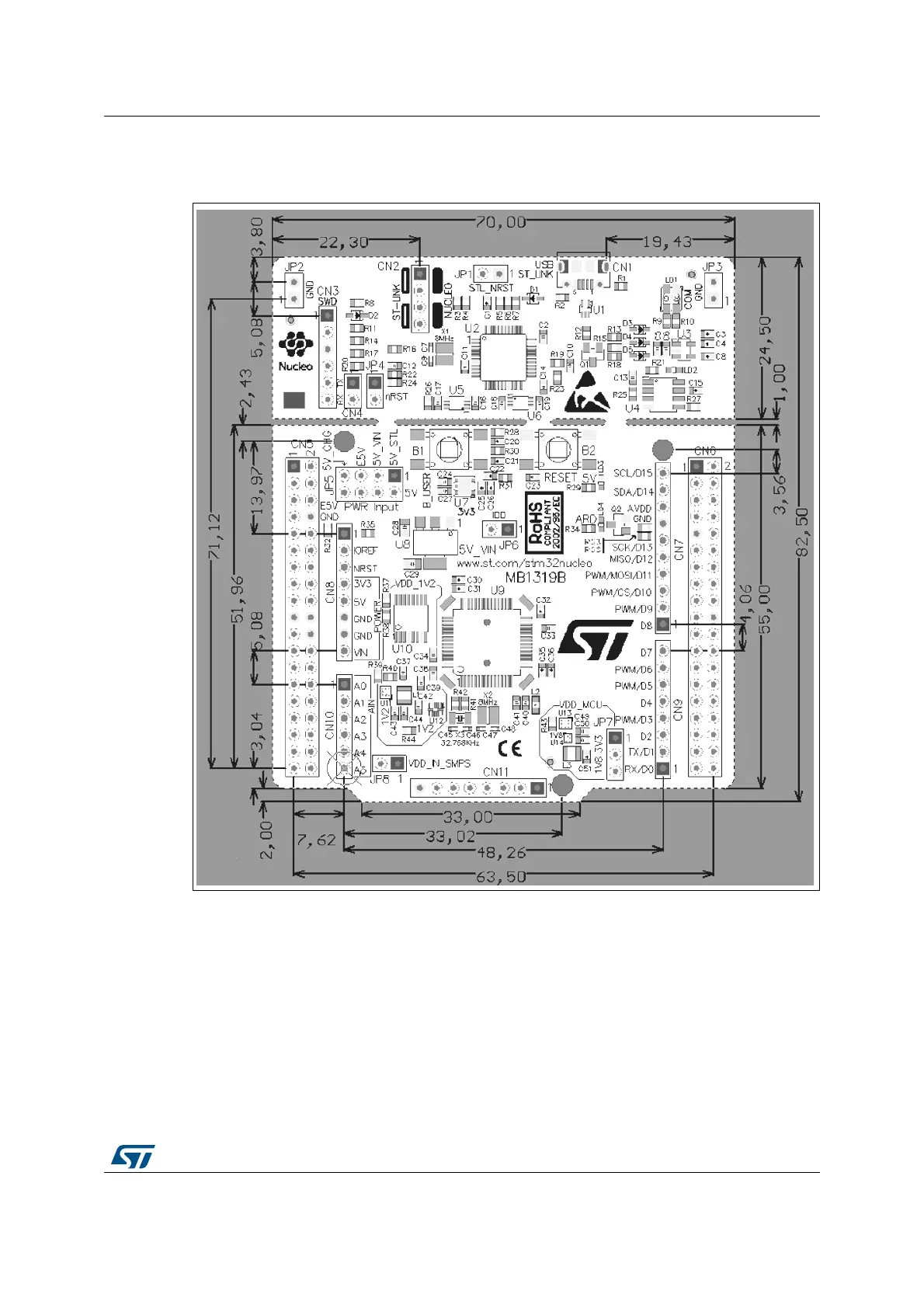

Figure 6. STM32 Nucleo-64 -P board mechanical drawing
9.2.1 Default board configuration
By default the STM32 Nucleo-64-P board is delivered with the external SMPS 1.1 V enabled
and V
DD
@3.3 V. It is possible to set the board for V
DD
@1.8 V. Before switching to 1.8 V, the
user should check that the extension module and the external shields connected to the
Nucleo-64-P board are 1.8
V compatible.
The default jumper configuration and V
DD
@1.8 V setting is showed in Table 4.
