10.3 ST morpho connectors CN5 and CN6
The ST morpho connectors CN5 and CN6 are male pin headers accessible on both sides of
the STM32 Nucleo-64-P board (see
Figure 17). All signals and power pins, except
V
DD_CORE
1.2 V of the STM32, are available on the ST morpho connectors. These
connectors can also be probed by an oscilloscope, logical analyzer or voltmeter.

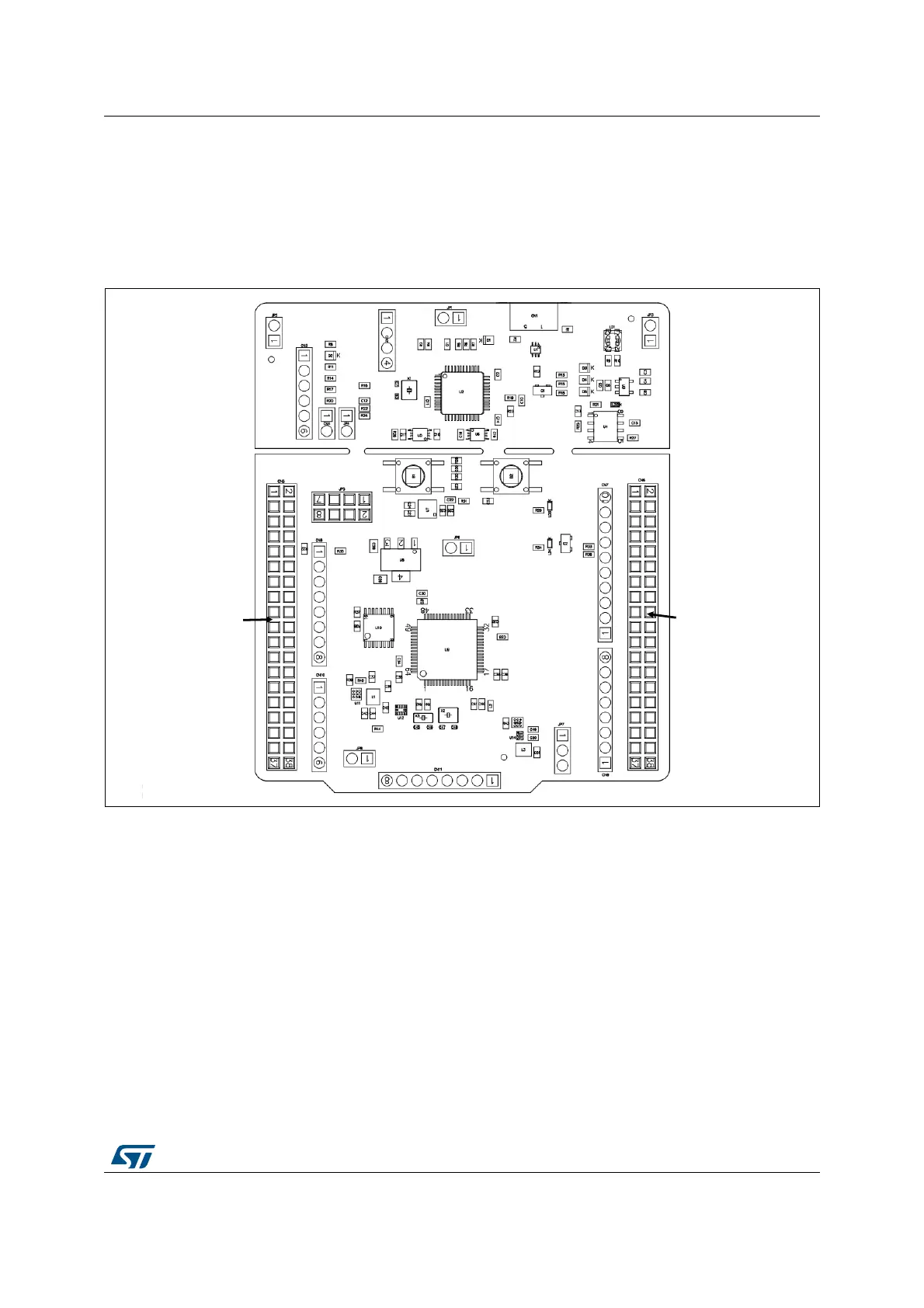

Figure 17. ST morpho connector
The related pinout and the MCU assignment for the ST morpho connector are listed in
Figure 18.
67PRUSKR:
CN6
67PRUSKR: CN5
