Hardware overview UM1681
14/23 UM1681 Rev 3

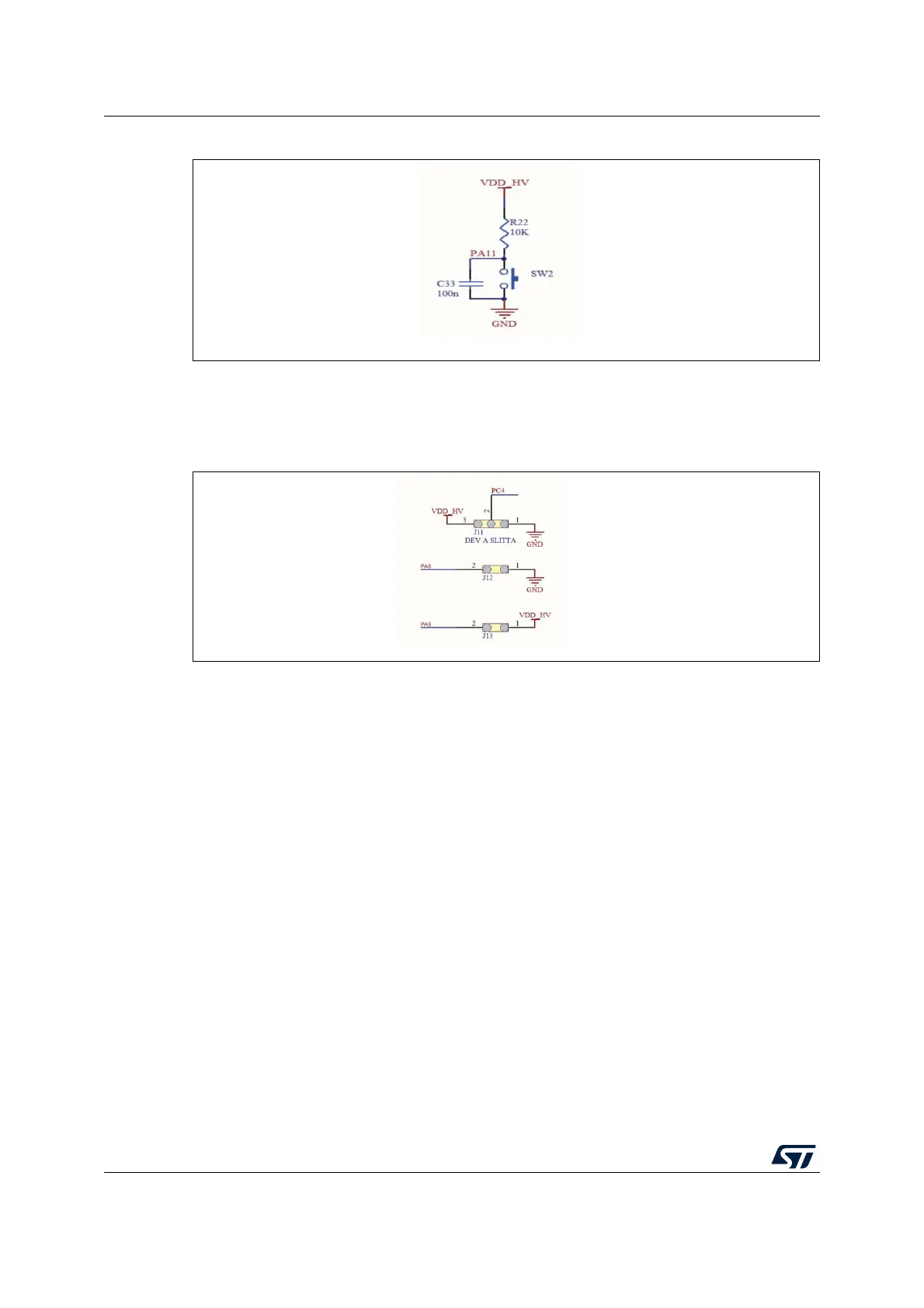

Figure 11. User push button
2.6.3 User I/O pins
Pin PC4 can be set to Low or High configuring J11.
Figure 12. User I/O pins PC4, PA8 and PA9
GAPGRI00392
GAPGRI00393
