Hardware and layout
UM1658
14/39
DocID025097 Rev 1
4.2.1
Using ST
-LINK/V2 to pr
ogram/debug the STM32
F0 on board
T
o program the STM32
F0 on
board, simply plug in the two jumpers on CN2, as shown in
Figure
8
in red, but do not use the CN3 connecto
r as that could dist
urb commu
nication with
the STM32F030R8T6 o
f the 32F0308DISCOVER
Y.

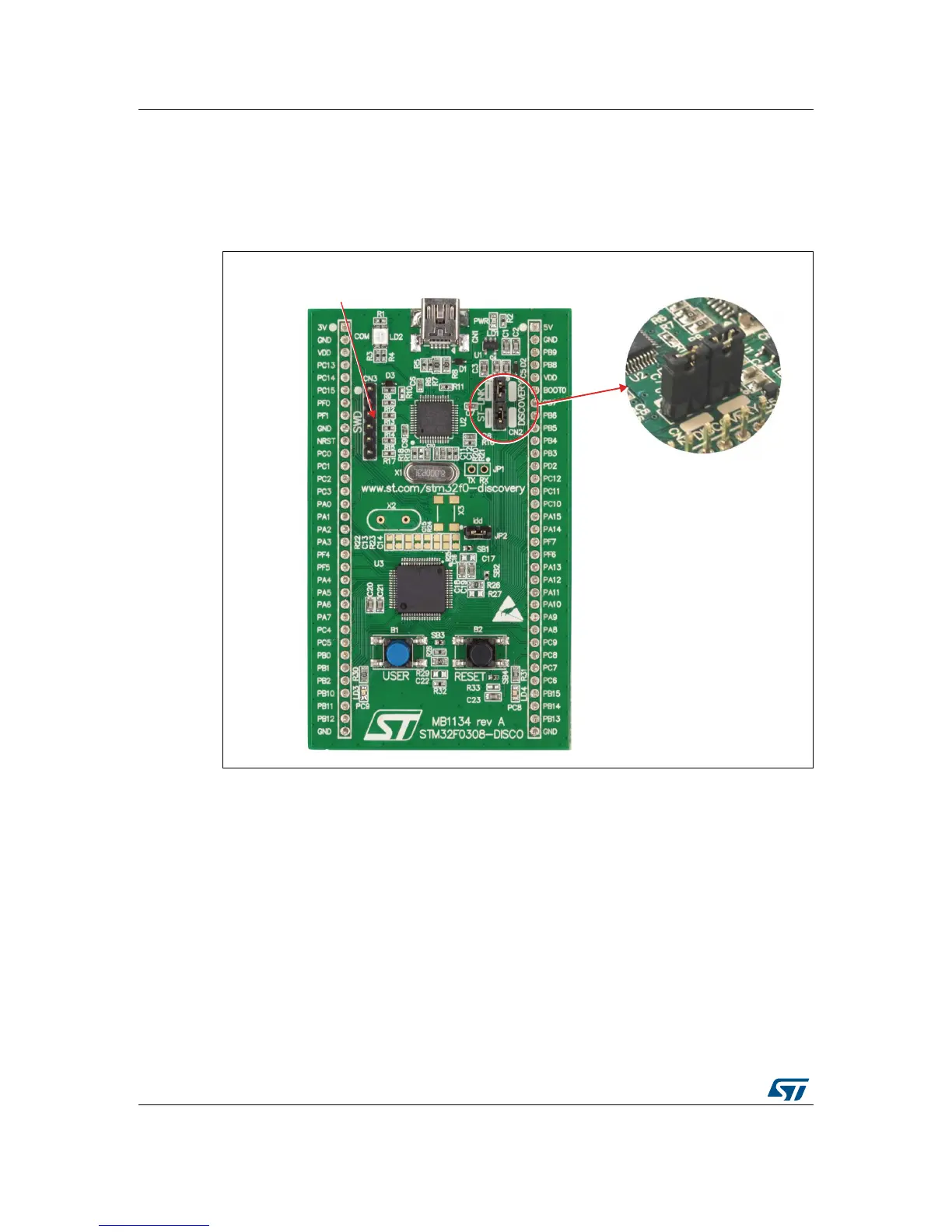

Figure 8. 32F0308DISCOVER
Y connections image
CN2 jumpers on
CN3
SWD connector
13
15
