UM1658 Connecting modules on the prototyping board
38

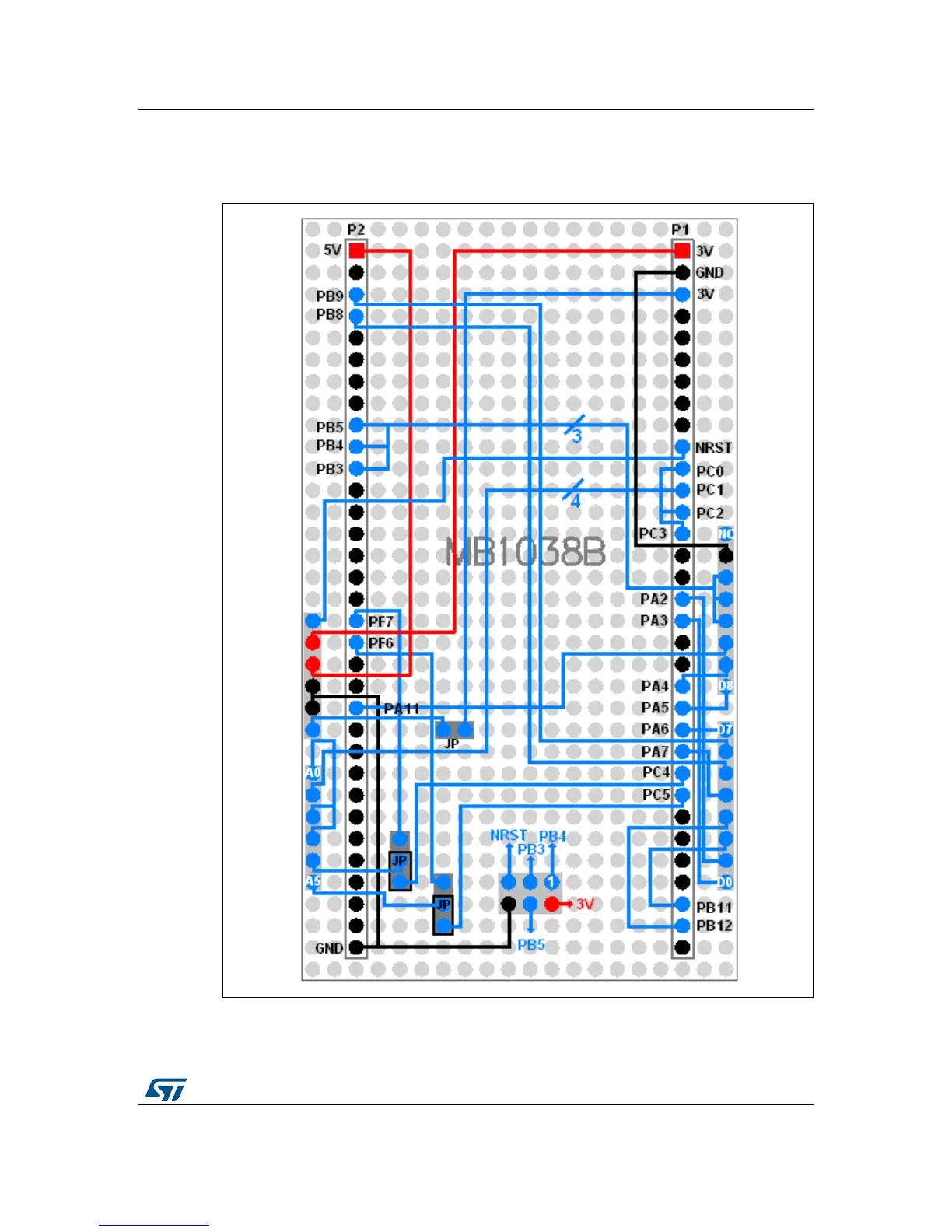

Figure 12 illustrates the connections between the 32F0308DISCOVERY and the Arduino
shield boards.
Figure 12. Arduino shield board connections
