DocID025097 Rev 1 29/39
UM1658 Connecting modules on the prototyping board
38
Figure 11 illustrates the connections between the 32F0308DISCOVERY and the DIL24
socket.

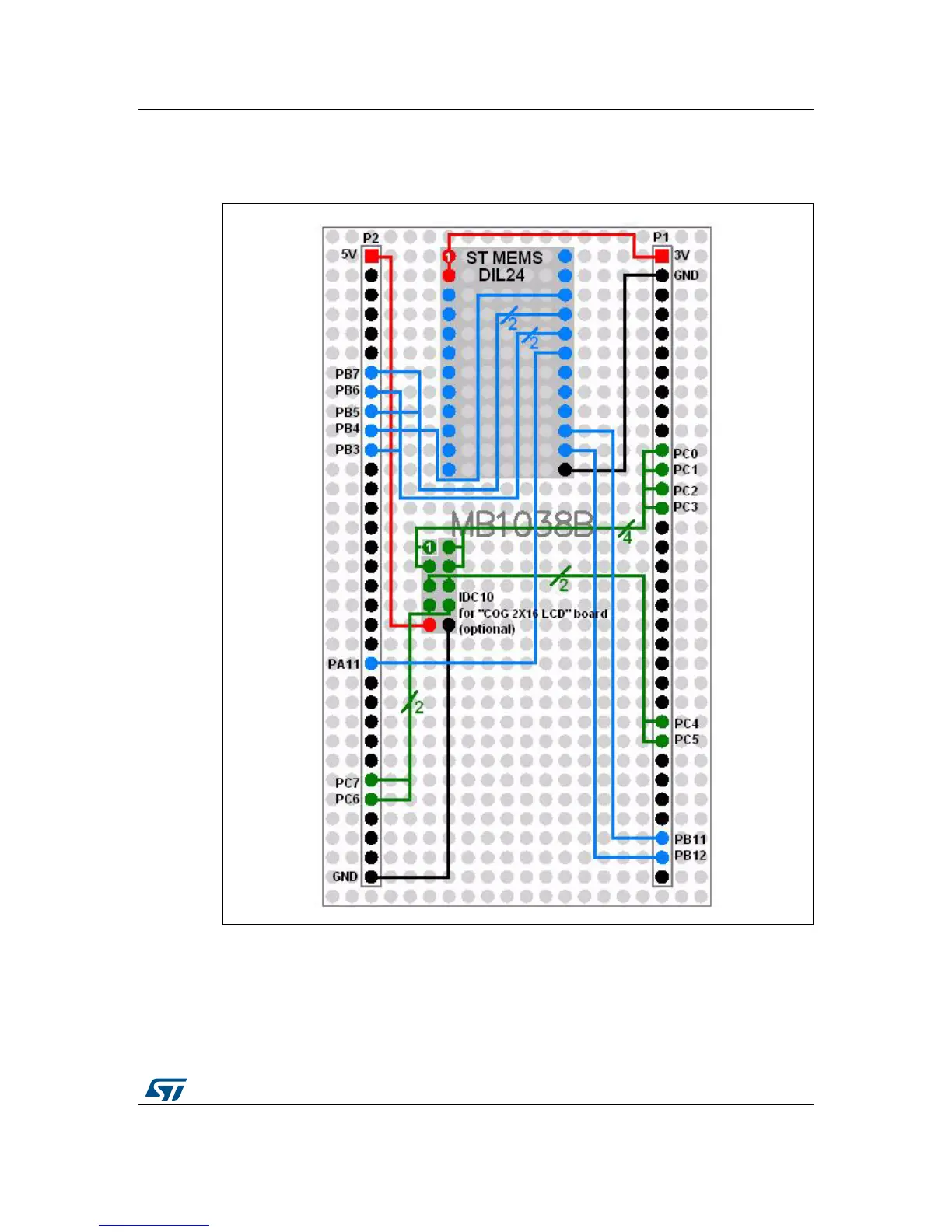

Figure 11. DIL24 socket connections
