6 Hardware layout and configuration
The STM32F3DISCOVERY board is designed around the STM32F303VCT6
microcontroller in a 100-pin LQFP package.
Figure 2 illustrates the connections between the STM32F303VCT6 and its peripherals
(ST-LINK/V2, push-buttons, LEDs, USB, ST MEMS gyroscope, ST MEMS E-compass, and
connectors).
Figure 2 and Figure 3 help the user to locate these features on the STM32F3DISCOVERY
board.

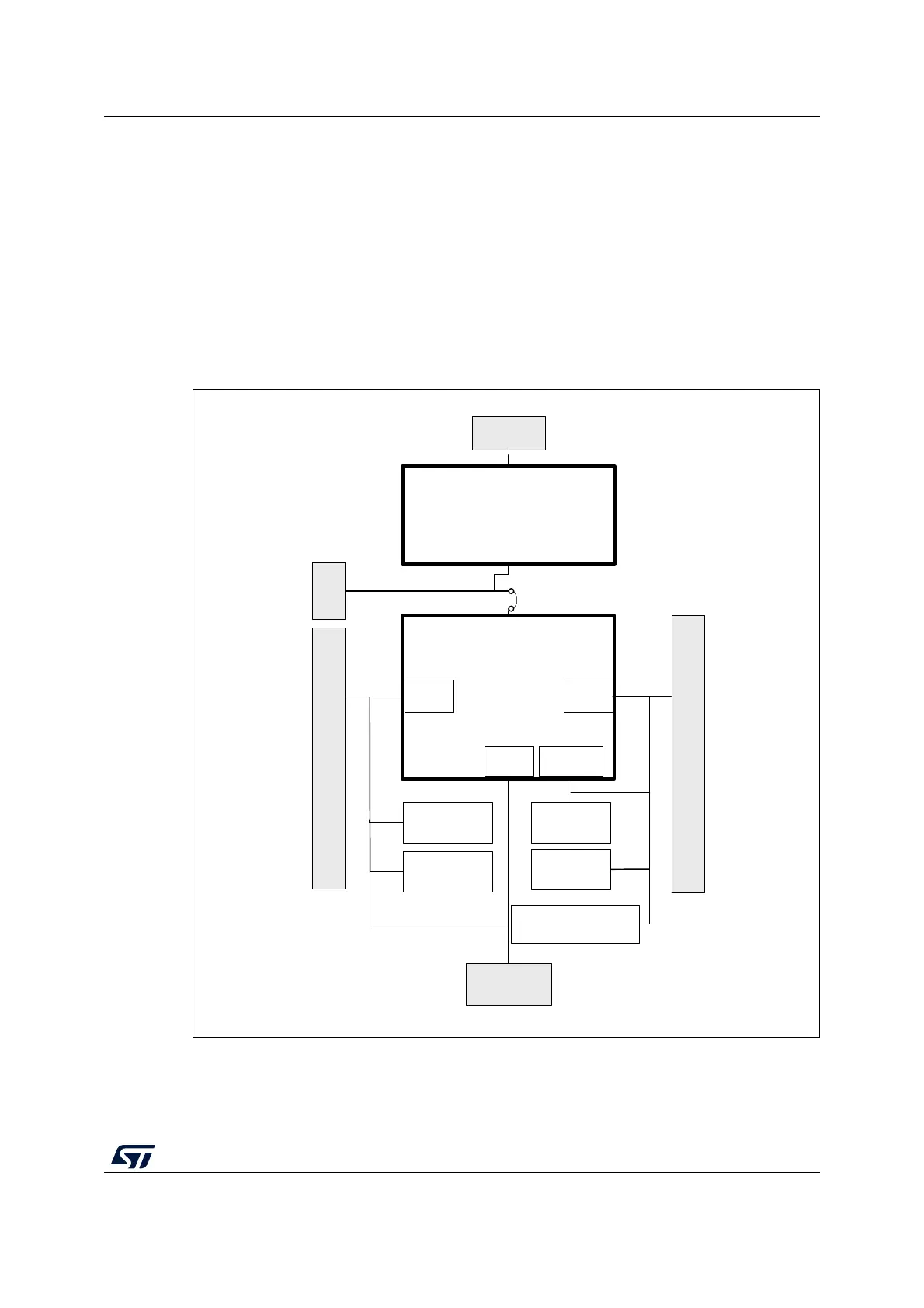

Figure 2. Hardware block diagram
MSv41785V3
STM32F303VCT6
L3GD20 or
I3G4250D
B1
USER
IO
Embedded
ST-LINK/V2 (or V2-B)
Mini USB
LEDs
LD3...LD10
B2
RESET
RESET
IOIO
Header
Header
Mini-USB
SWD
LSM303DLHC or
LSM303AGR
