ST STM32F411

Hardware layout UM1842
12/35 DocID027213 Rev 1
4.1 Embedded ST-LINK/V2
The ST-LINK/V2 programming and debugging tool is integrated on the STM32F411
Discovery board. The embedded ST-LINK/V2 can be used in 2 different ways according to
the jumper states (see Table 2):
 Program/debug the MCU on board,
 Program/debug an MCU in an external application board using a cable connected to
SWD connector CN2.
The embedded ST-LINK/V2 supports only SWD for STM32 devices. For information about
debugging and programming features, refer to user manual UM1075 (ST-LINK/V2 in-circuit
debugger/programmer for STM8 and STM32) which describes in detail all the ST-LINK/V2
features.

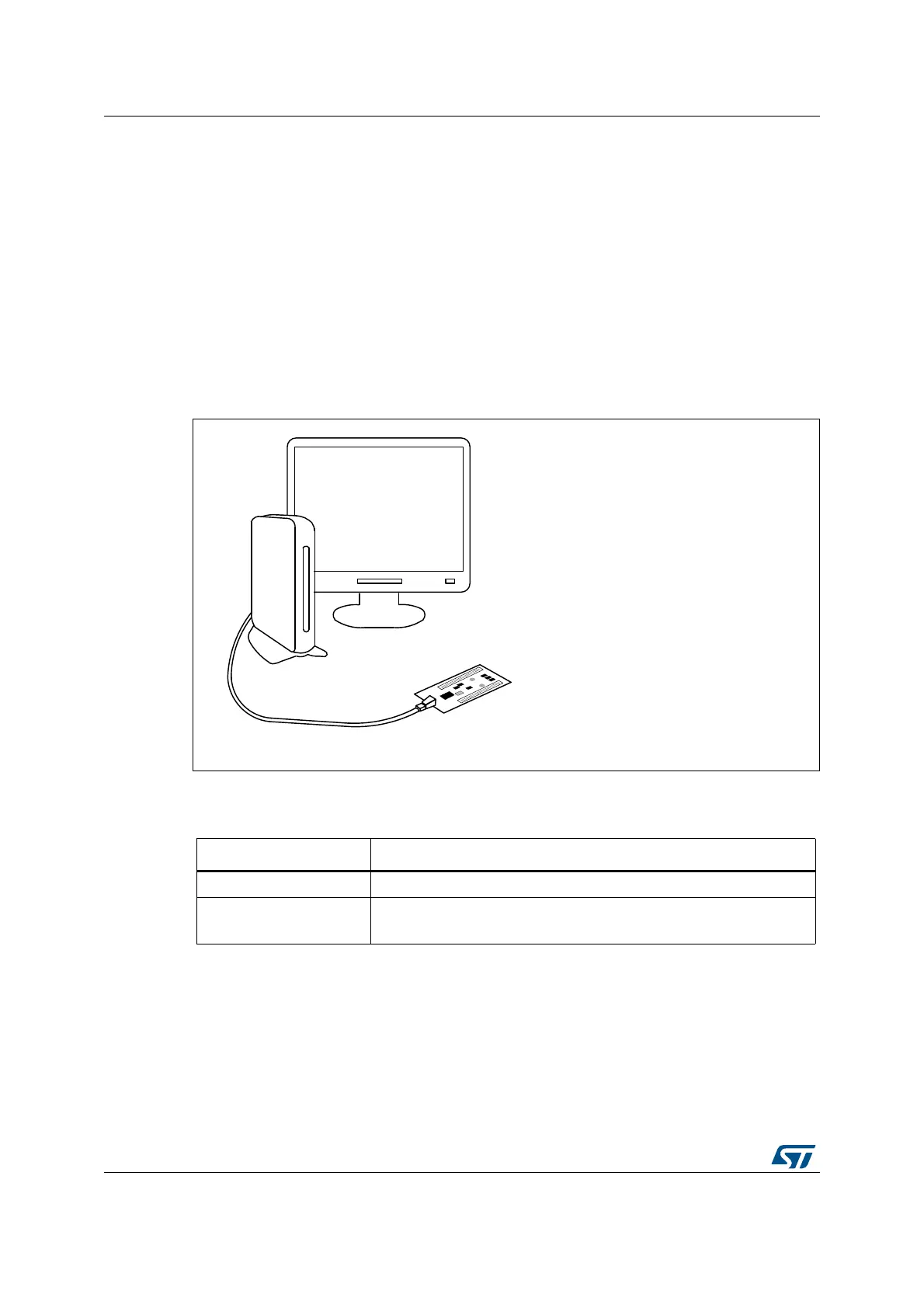

Figure 5. Typical configuration
Table 2. Jumper states
Jumper state Description
Both CN3 jumpers ON ST-LINK/V2 functions enabled for on board programming (default)
Both CN3 jumpers OFF
ST-LINK/V2 functions enabled for application through external
CN2 connector (SWD supported)
06Y9
+DUGZDUHUHTXLUHPHQWV
86%FDEOHW\SH$WRPLQL%
&RPSXWHUZLWK:LQGRZV;3RU
'HYHORSPHQWWRROFKDLQV
.HLO

0'.$50
,$5(:$50
*&&EDVHG,'(V$WROOLF7UXH6WXGLR«
06Y9
+DUGZDUHUHTXLUHPHQWV
86%FDEOHW\SH$WRPLQL%
&RPSXWHUZLWK:LQGRZV;3RU
'HYHORSPHQWWRROFKDLQV
.HLO

0'.$50
,$5(:$50
*&&EDVHG,'(V$WROOLF7UXH6WXGLR«
