Electrical schemat
ics
UM1842
32/35
DocID027213 Rev 1

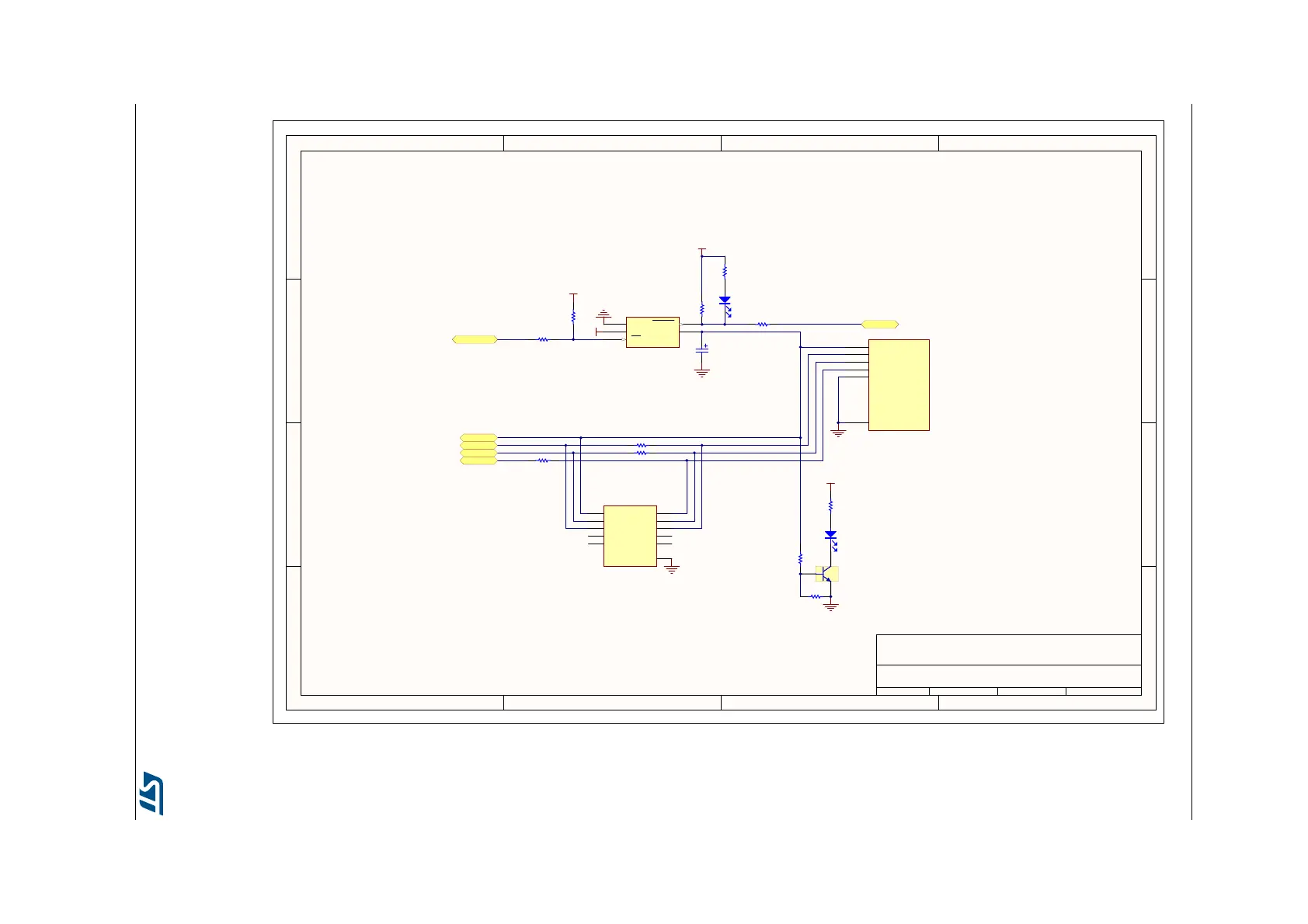

Figure 13. USB_OTG_FS
1
1
2
2
3
3
4
4
D
D
C
C
B
B
A
A
STMicroelectronics
Title:
Number:
Rev:
Sheet
of
B.2(PCB.SCH)
Date:
10/16/2014
MB1115
56
STM32F411E-DISCOVERY
USB_OTG_FS
5V
R41
10K
PC0
PD5
R49
47K
3V
R65
620
PA11
PA12
PA10
OTG_FS_PowerSwitchOn
OTG_FS_OverCurrent
VBUS_FS
OTG_FS_ID
OTG_FS_DM
OTG_FS_DP
R56
22
R58
22
R64
330
R54
47K
3V
3V
Dz
A2
ID
A3
Pd1
B1
Pup
B2
Vbus
B3
D+in
C1
Pd2
C2
D+out
C3
D-in
D1
GND
D2
D-out
D3
U9
EMIF02-USB03F2
GND
2
IN
5
EN
4
OUT
1
FAULT
3
U6
STMPS2141STR
PA9
PA10
PA11
PA12
PC0
PD5
PA9
3
1
2
T1
9013-SOT23
VBUS
1
DM
2
DP
3
ID
4
GND
5
Shield
6
USB_Micro-
AB
recept
acle
CN5
USB-MICRO-AB
C54
4.7uF
LD7
LED,
green
LD8
LED,
red
R55
[NA]
R42
0
R57
0
R48
0
31
33
