ST STM32L152-EVAL User Manual

Connectors UM1018
24/44 Doc ID 18141 Rev 1
3.6 ST-LINK/V2 USB type B connector CN11
The USB connector, CN11, is used to connect the embedded ST-LINK/V2 to the PC for
board debugging.

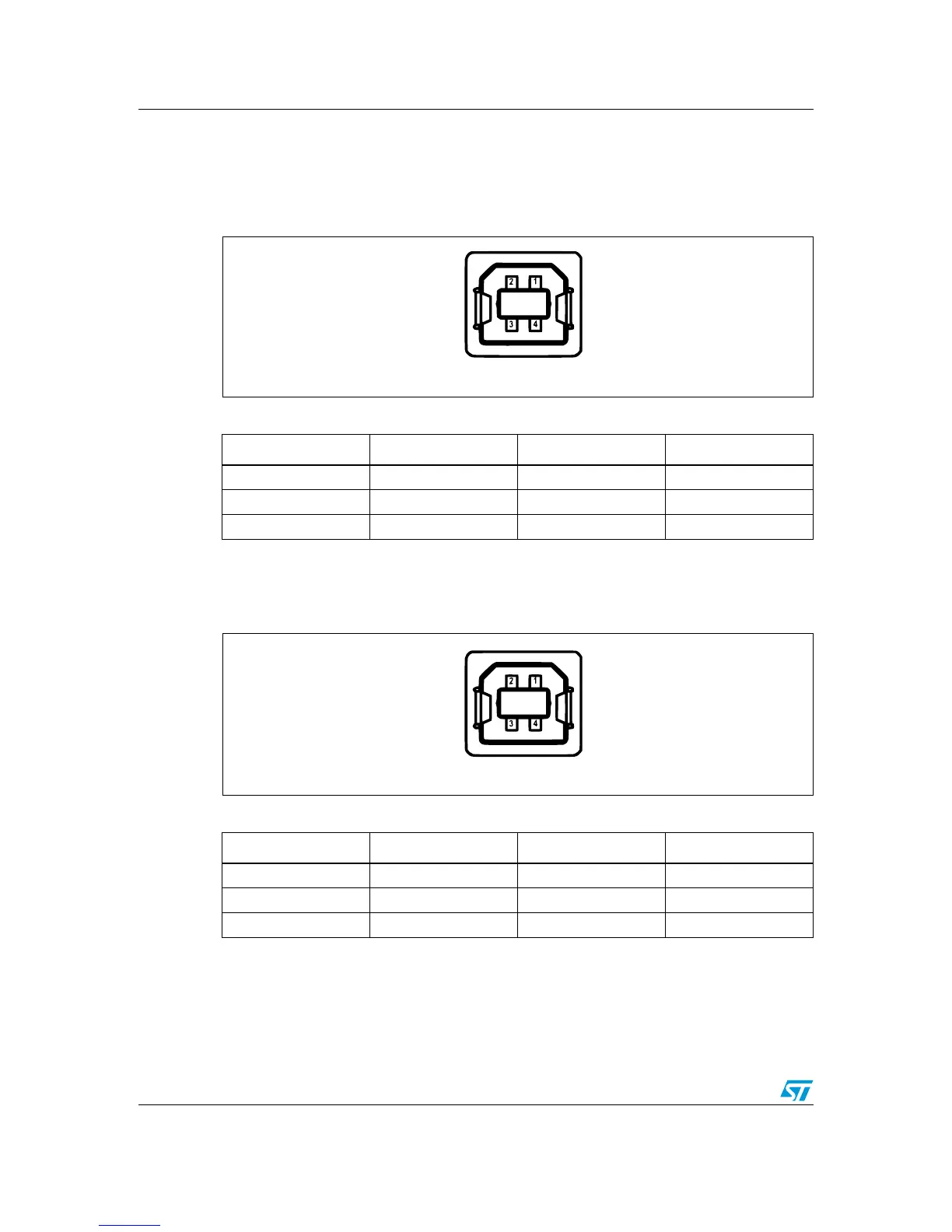

Figure 8. USB type B connector CN11 (viewed from front)
3.7 User USB Type B connector CN1
Figure 9. USB type B connector CN1 (viewed from front)
3.8 Audio jack CN3
A 3.5 mm stereo audio jack, CN3, connected to audio DAC is available.
Table 17. USB type B connector CN11
Pin number Description Pin number Description
1VBUS (power) 4GND
2DM 5,6Shield
3DP
-36
Table 18. USB type B connector CN1
Pin number Description Pin number Description
1VBUS (power) 4GND
2DM 5Shield
3DP 6Shield
-36
