UM1018
Schematics
Doc ID 18141 Rev 1
39/44

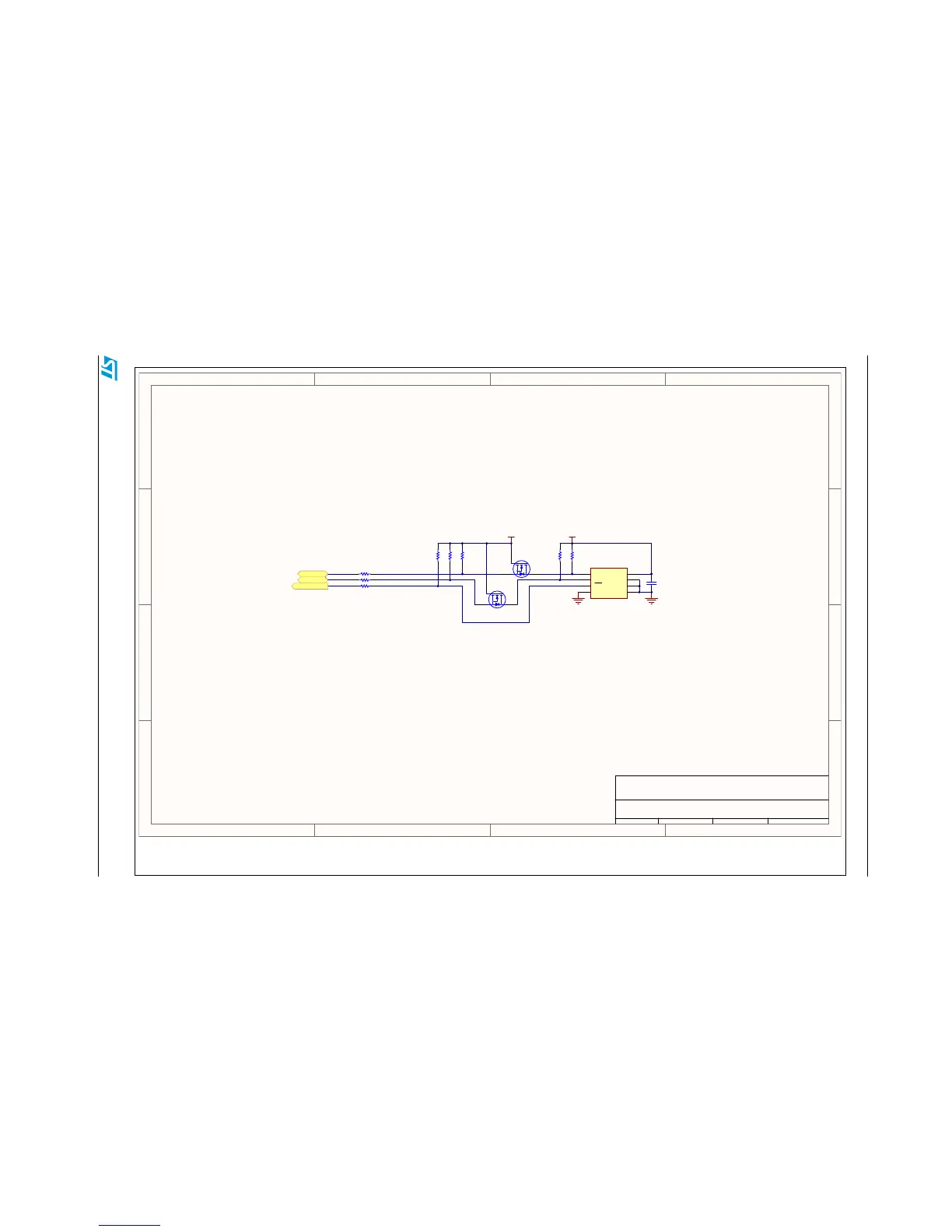

Figure 23.
T
emperature sensor
1
1
2
2
3
3
4
4
D
D
C
C
B
B
A
A
STMicroelectronics
Title:
Number:
Rev:
Sheet
of
B.3(PCB.SCH)
Date:
10/13/2010
I2C_SLK
I2C_SDA
R69
0
R62
0
SDA
1
SCL
2
OS/INT
3
GND
4
A2
5
A1
6
A0
7
VDD
8
U18
STLM75M2E
+3V3
VDD
R63
4K7
R66
4K7
C41
100nF
2
1
3
G
SD
TR1
FDN327N
2
1
3
G
SD
TR2
FDN327N
R68
4K7
R73
4K7
R67
4K7
R61
0
Temperature
sensor
I2C_SMB
MB819
11
14
STM32L152-EVAL
TemperatureSensor
PB7
PB6
PB5
Downloaded from
Elcodis.com
electronic components distributor
38
40
Table of Contents
Table of Contents
2
1 Features
4
Demonstration Software
4
Order Code
4
2 Hardware and Layout
5
Development and Debug Support
7
Power Supply
7
Clock Source
9
Reset Source
9
Boot Option
10
LCD Glass Module
10
Audio
11
Usb
11
RS-232 and Irda
11
Touch Sensing Buttons
12
Microsd Card
12
Analog Input
12
Comparator
13
Temperature Sensor
14
Display and Input Devices
15
IDD Measurement
16
Run Mode
16
Low Power Mode
16
Ibias Current Measurement Procedure
18
3 Connectors
19
RS-232 Connectors (CN2, CN5)
19
TFT LCD Connector (CN14)
19
Power Connector (CN12)
20
Daughterboard Extension Connectors (CN6 and CN7)
20
ST-LINK/V2 Programming Connector CN10
23
ST-LINK/V2 USB Type B Connector CN11
24
User USB Type B Connector CN1
24
Audio Jack CN3
24
JTAG Connector CN9
25
Trace Debugging Connector CN8
25
Microsd Card Connector CN4
26
BNC Connector CN13
27
Schematics
28
Figure 13: STM32L152-EVAL
29
Figure 14: MCU
30
Figure 15: LCD Glass
31
Figure 16: Audio
32
Figure 17: Peripherals
33
Figure 18: Power
34
Figure 19: Extension Connector
35
Figure 20: LCD and SD Card
36
Figure 21: RS-232 and Irda
37
Figure 22: Idd_Measurement
38
Figure 23: Temperature Sensor
39
Figure 24: ST-LINK
40
Figure 26: Touch Sensing
42
5 Revision History
43
