Connectors UM1018
26/44 Doc ID 18141 Rev 1
3.11 MicroSD Card connector CN4

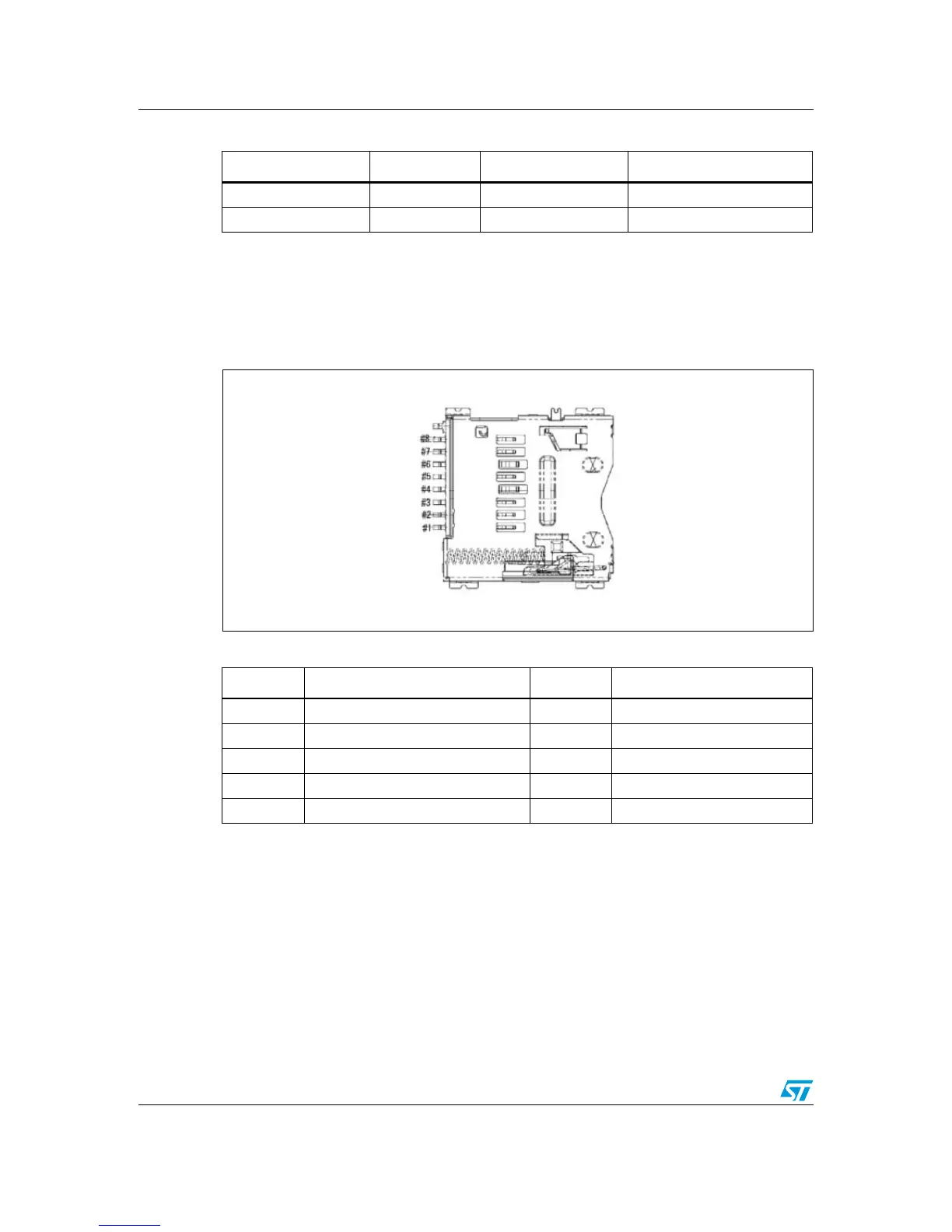

Figure 11. MicroSD Card connector CN4 (viewed from front)
17 GND 18 TraceD2/PE5
19 GND 20 TraceD3/PE6
Table 20. Trace debugging connector CN8 (continued)
Pin number Description Pin number Description
Table 21. MicroSD Card connector CN4
Pin number Description Pin number Description
1 5 MicroSDcard_CLK (PB13)
2 MicroSDcard_CS (PD7) 6 Vss/GND
3 MicroSDcard_DIN(PB15) 7 MicroSDcard_DOUT(PB14)
4+3V3 8
9 MicroSDcard_detect (PE6)
-36
