ST STM32L152-EVAL User Manual

UM1018 Schematics
Doc ID 18141 Rev 1 29/44

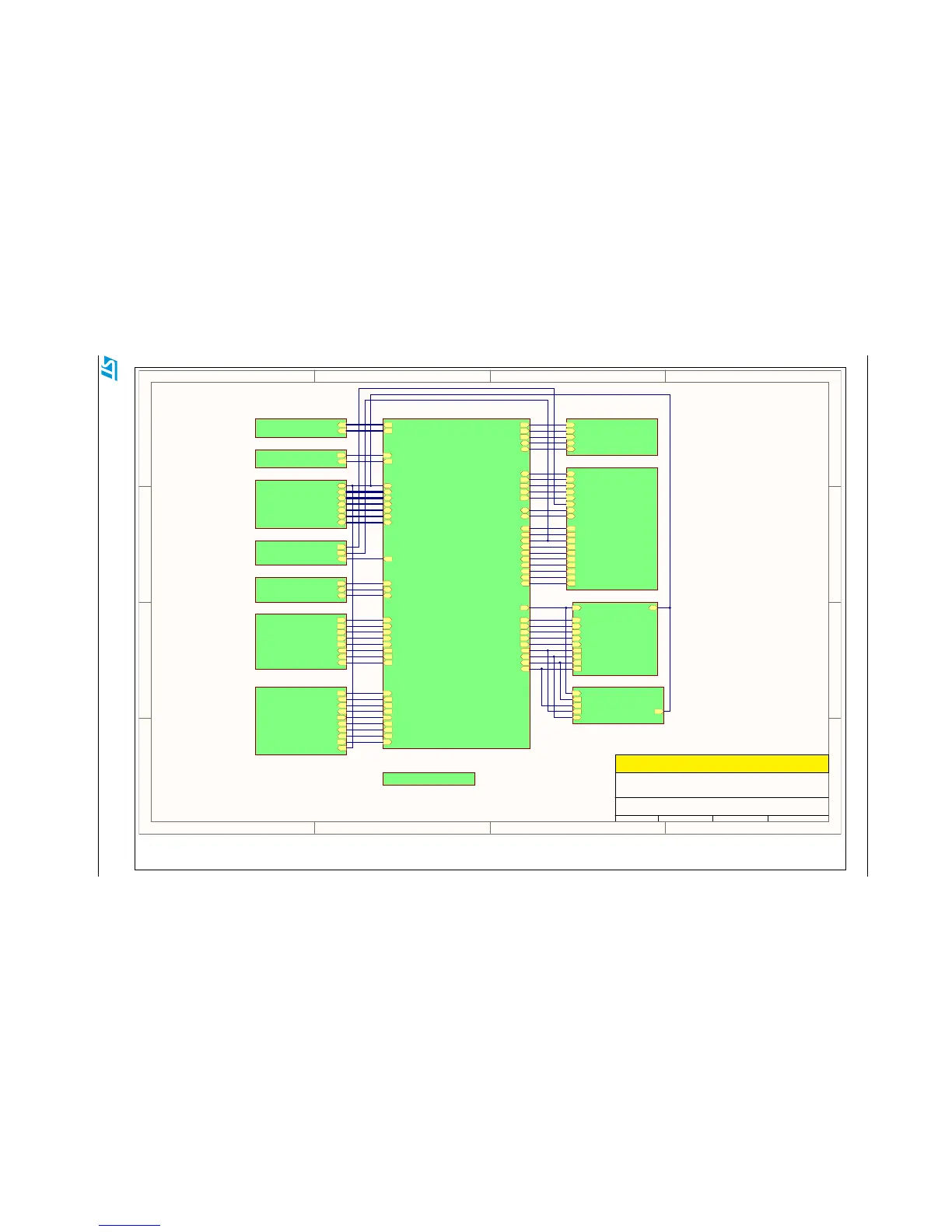

Figure 13. STM32L152-EVAL
1
1
2
2
3
3
4
4
D D
C C
B B
A A
STMicroelectronics
Title:
Number: Rev: Sheet of
B.3(PCB.SCH)
Date:
10/13/2010MB819 1 14
STM32L152-EVAL
N
ote1: All text in the each sheet is in Italic format to be different with Net label.
N
ote2: Version upgrade from B.1 to B.2 due to FDC606 used for T3 and T4 instead of
STT5PF20V.
Audio_OUT
Audio_IN
U_Audio
Audio.SchDoc
PA[0..15]
PB[0..15]
PC[0..15]
PD[0..15]
PE[0..15]
RESET#
PH[0..2]
U_Extension connector
Extension connector.SCHDOC
TDI
TRST
TMS/SWDIO
TCK/SWCLK
TDO/SWO
TRACE_D3
TRACE_D2
TRACE_D1
TRACE_D0
TRACE_CK
RESET#
U_JTAG&Trace
JTAG&Trace.SchDoc
SEG[0..43]
COM[0..3]
U_LCD_Glass
LCD_Glass.SCHDOC
MicroSD_CS
SPI1_SCK
SPI1_MOSI
LCD_CS
SPI1_MISO
SDcard_detect
RESET#
SPI2_SCK
SPI2_MOSI
SPI2_MISO
U_LCD_MicroSD
LCD_MicroSD.SchDoc
PA[0..15]
PB[0..15]
PC[0..15]
PD[0..15]
PE[0..15]
RESET#
Bootloader_BOOT0
Bootloader_RESET
PH[0..2]
TRACE_D3
TRACE_D2
TRACE_D1
TRACE_D0
TRACE_CK
SEG[0..43]
WAKEUP
Audio_OUT
BNC
TS_LOAD
SDcard_detect
JOY_SEL
JOY_DOWN
JOY_LEFT
JOY_RIGHT
JOY_UP
MicroSD_CS
SPI1_SCK
SPI1_MOSI
LCD_CS
SPI1_MISO
SPI2_SCK
SPI2_MOSI
SPI2_MISO
Potentiometer
Audio_IN
IDD_CNT_EN
TS1
TS2
TS_SHIELD
TS_CT
COM[0..3]
USB_DM
USB_DP
TDI
TRST
TMS/SWDIO
TCK/SWCLK
TDO/SWO
USART3_TX
USART3_RX
LED4
LED3
LED1
LED2
USART2/IrDA_TX
USART2/IrDA_CTS
USART2/IrDA_RX
USART2/IrDA_RTS
LDR_OUT
COM_IN-
COM_IN+
I2C_SLK
I2C_SDA
I2C_SMB
U_MCU
MCU.SchDoc
BNC
Potentiometer
LED4
LED3
LED1
LED2
JOY_SEL
JOY_DOWN
JOY_LEFT
JOY_RIGHT
JOY_UP
LDR_OUT
USB_DM
USB_DP
WAKEUP
COM_IN-
COM_IN+
IDD_Measurement
U_Peripherals
Peripherals.SchDoc
U_Power
Power.SchDoc
USART2/IrDA_TX
USART2/IrDA_CTS
Bootloader_RESET
Bootloader_BOOT0
USART2/IrDA_RX
USART2/IrDA_RTS
USART3_TX
USART3_RX
U_RS232_IrDA
RS232_IrDA.SCHDOC
TMS/SWDIO
TCK/SWCLK
TDO/SWO
TDI
TRST
RESET#
U_ST_LINK
ST_LINK.SCHDOC
I2C_SLK
I2C_SDA
I2C_SMB
U_TemSensor
TemSensor.SCHDOC
TS_LOAD
TS1
TS2
TS_SHIELD
TS_CT
U_Touch Sensing
Touch Sensing.SchDoc
IDD_Measurement
IDD_CNT_EN
IDD_WAKEUP
U_IDD_measurement
IDD_measurement.SchDoc
