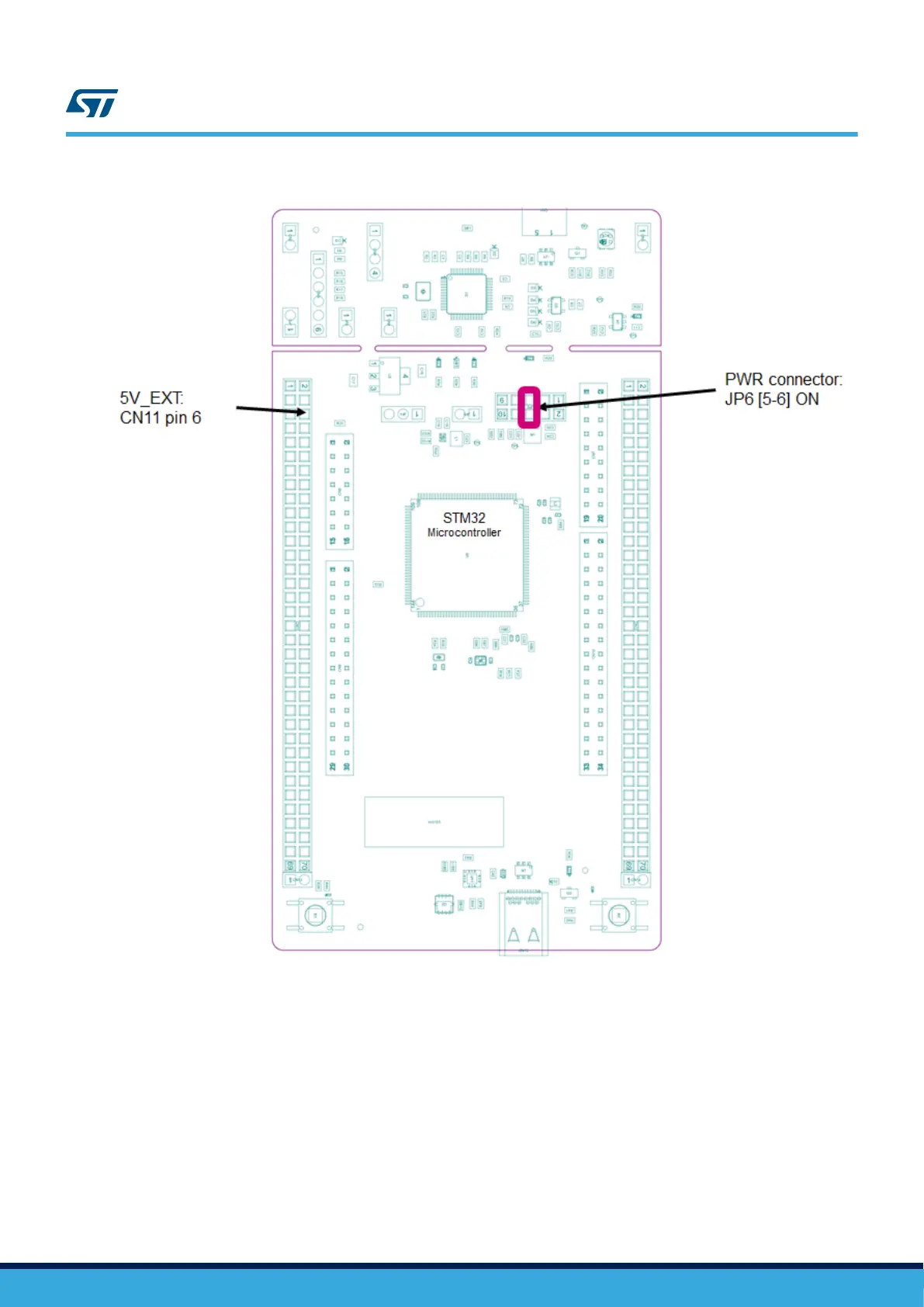

Figure 12. JP6 [5-6]: 5V_EXT Power source
5V_USB_C is the DC power supply connected to the user USB Type-C
™
(CN15). In this case, to select the
5V_USB_TYPE_C power source on the JP6 silkscreen, the jumper must be on pins [7-8].
5V_USB_C configuration: Jumper JP6 [7-8] must be connected as shown in Figure 13.
UM2581
Power supply
UM2581 - Rev 2
page 18/48
