ST STM32L5 Nucleo-144 board User Manual

7 Extension connectors
Six extension connectors are implemented on the STM32L5 Nucleo-144 board:
• CN7, CN8, CN9, and CN10 for Zio connector supporting ARDUINO
®
Uno V3
• CN11 and CN12 for ST morpho connector
The jumpers for voltage selection and IDD measurements are not described here.
7.1
Zio connectors supporting ARDUINO
®
Uno V3
The CN7, CN8, CN9 and CN10 Zio connectors are female connectors supporting ARDUINO
®
standard. Most
shields designed for ARDUINO
®
can fit the Nucleo board.
Caution:
The STM32 microcontroller I/Os are 3V3 compatible, while ARDUINO
®
Uno V3 is 5V compatible.

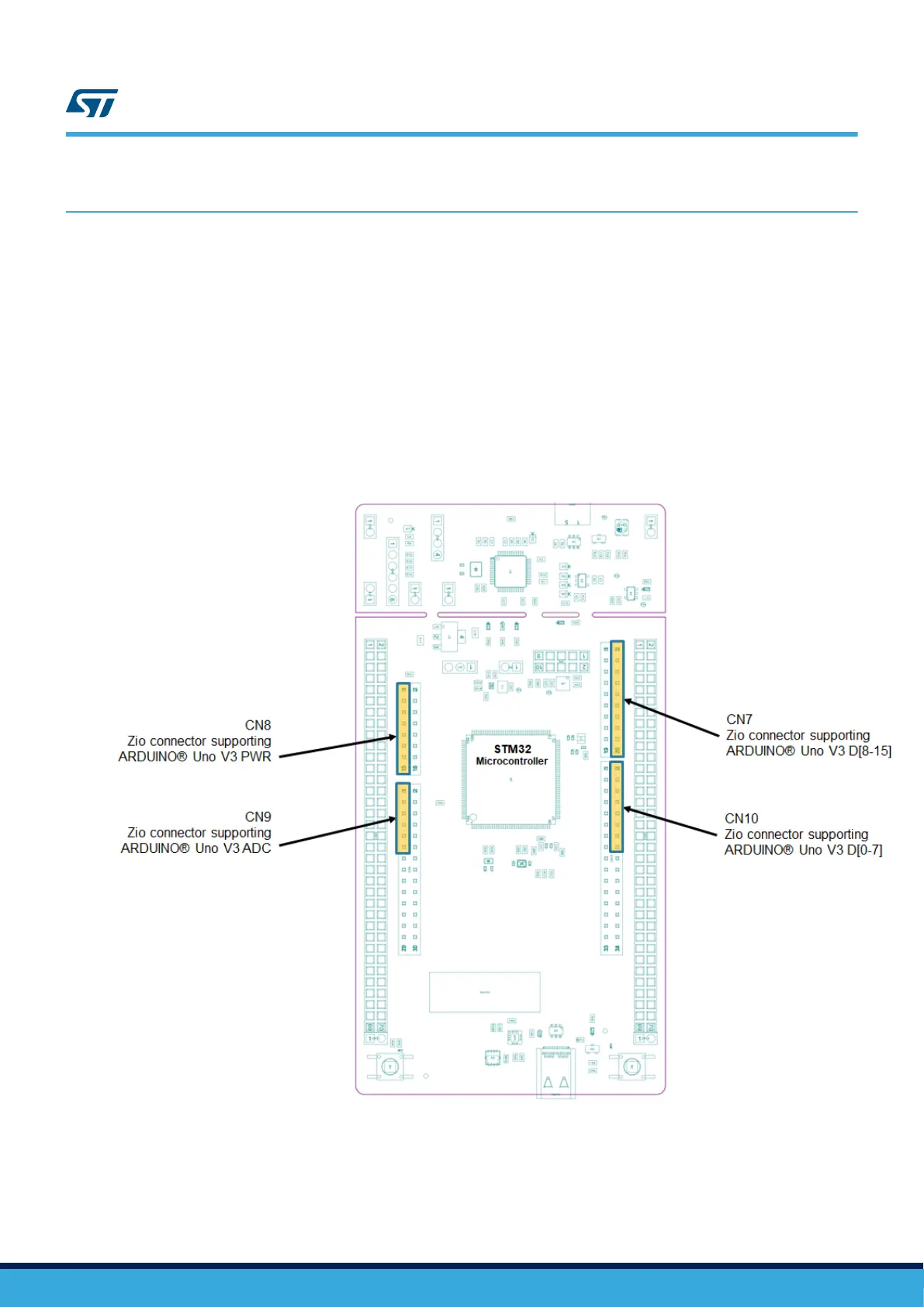

Figure 16. Zio connectors supporting ARDUINO
®
Uno V3
The related pinout for the ARDUINO
®
connector are listed in Table 17, Table 18, Table 19 and Table 20
UM2581
Extension connectors
UM2581 - Rev 2
page 34/48
