I/O Configuration
PZ3 PZ3 is connected to BT_PCM_WS
PZ2 PZ2 is connected to BT_PCM_SDO
PZ1 PZ1 is connected to BT_PCM_SDI
PZ0 PZ0 is connected to BT_PCM_CK
PZ6 PZ6 is connected to BT_REG_ON
PH5 PH5 is connected to BT_HOST_WAKE
PZ7 PZ7 is connected to BT_DEV_WAKE
PI8 LP0_32
7.14
MIPI DSI
SM
LCD
The LCD is not provided with the STM32MP157A-DK1 Discovery kit.
7.14.1 Description
The 40-pin FCP connector CN4 is used to connect a TFT LCD module through the MIPI DSI
SM
interface supported
by the MB1407 board. The touch panel is embedded in the LCD module.
The LCD module is composed of the FRD397B2509V2 TFT LCD module with an OTM8009A LCD driver. The 4"
LCD supports a resolution of 480 × 800 dots in 16.7 M colors (RGB). The touch-sensitive panel drive is performed
by the FT6236 self-capacitive controller.

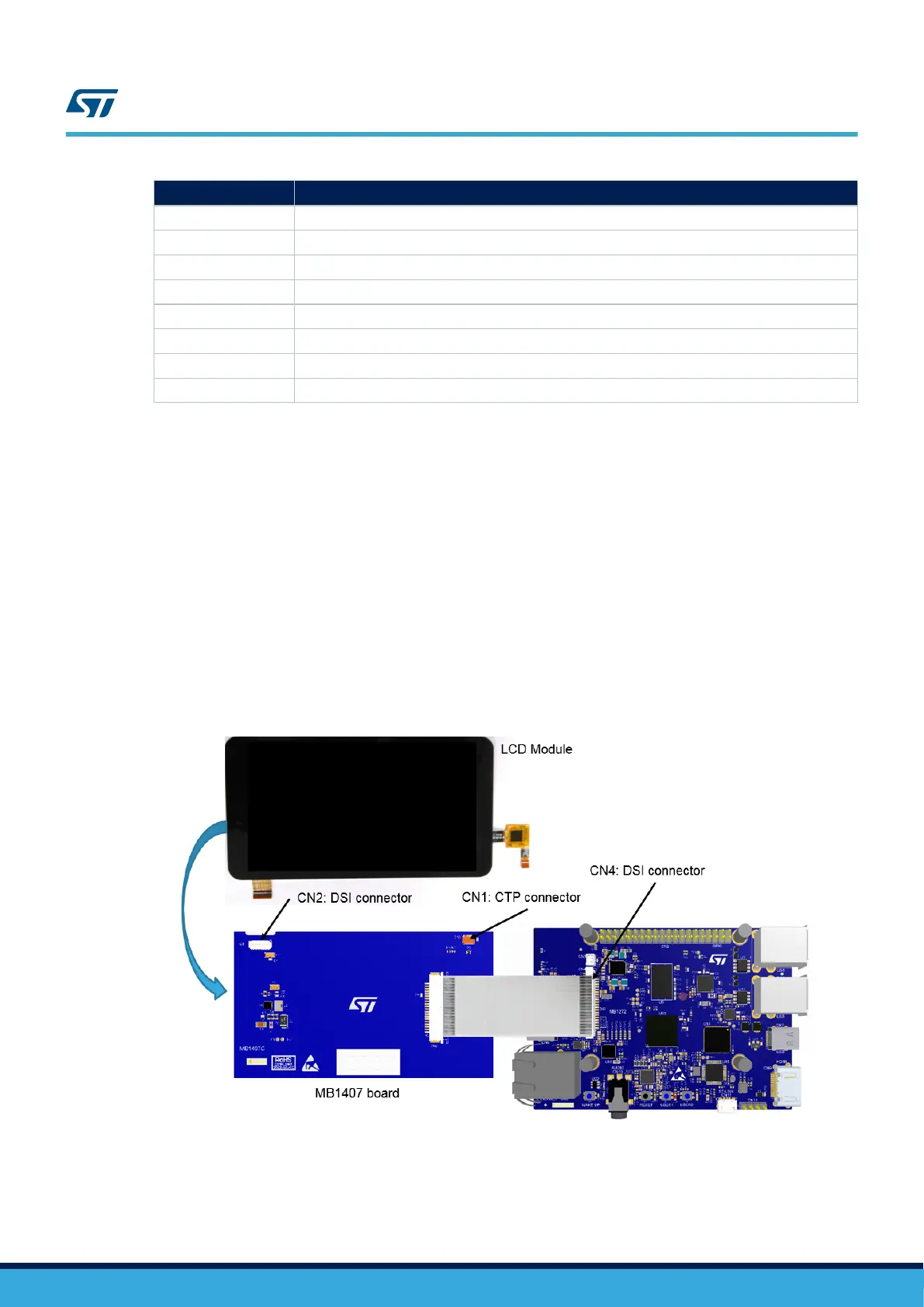

Figure 13 shows the LCD connection to MB1407 and MB1272.
Figure 13. LCD connection to MB1407
7.14.2 Operating voltage
The LCD module power supply is connected to VDD_3V3.
UM2534
MIPI DSISM LCD
UM2534 - Rev 1
page 23/47
